Cutler Hammer BRP16L125 Main Lug Load Center 125A 32 Circuit

Product Description

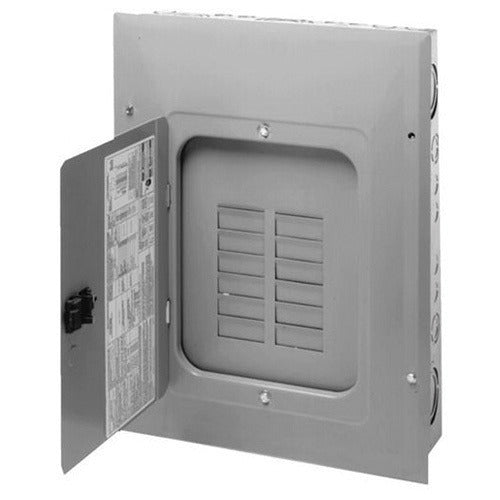

The CUTLER HAMMER BRP16L125 is a single-phase, 3-wire plug-on neutral main lug load center rated for 125 amps at 120/240 volts AC. It provides 16 spaces supporting up to 32 circuits, making it well-suited for subpanel installations and service upgrades where a main breaker is upstream. The enclosure carries a NEMA 1 rating for indoor dry locations and is constructed with a metallic gray finish. With a 10,000 AIC interrupt rating and aluminum bus construction, this load center meets standard residential and light commercial wiring demands. Licensed electricians install this unit in surface or flush configurations.

This load center is designed for single-phase residential and light commercial electrical distribution. It accepts two hot conductors, a neutral, and a ground, with conductor range of 6 to 2/0 AWG copper or aluminum. The plug-on neutral design reduces installation time by eliminating the neutral pigtail connection to the bus. With 16 available spaces and support for tandem breakers up to 32 circuits total, it handles typical residential panel layouts efficiently. It is compatible with Eaton BR series branch circuit breakers.

Key Features

• 125-amp main lug rating at 120/240 volts AC single phase
• 16 spaces, expandable to 32 circuits using tandem breakers
• Plug-on neutral bus eliminates neutral pigtail wiring
• 10,000 AIC interrupt rating for standard residential fault protection
• NEMA 1 metallic enclosure rated for indoor dry locations
• Supports surface or flush mounting configurations
• Conductor range of 6 to 2/0 AWG copper or aluminum

Compatibility

Designed for use with Eaton BR series plug-on neutral branch circuit breakers. The load center accepts the BR2125 main lug configuration and is suitable for residential subpanel and feeder applications where a main disconnect is provided upstream.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the upstream feeder and verify with a meter before beginning any wiring work. The combination cover supports both surface and flush mounting -- confirm rough-in depth and mounting surface before setting the enclosure. Do not energize the load center until all conductors are properly landed and the cover is secured.
