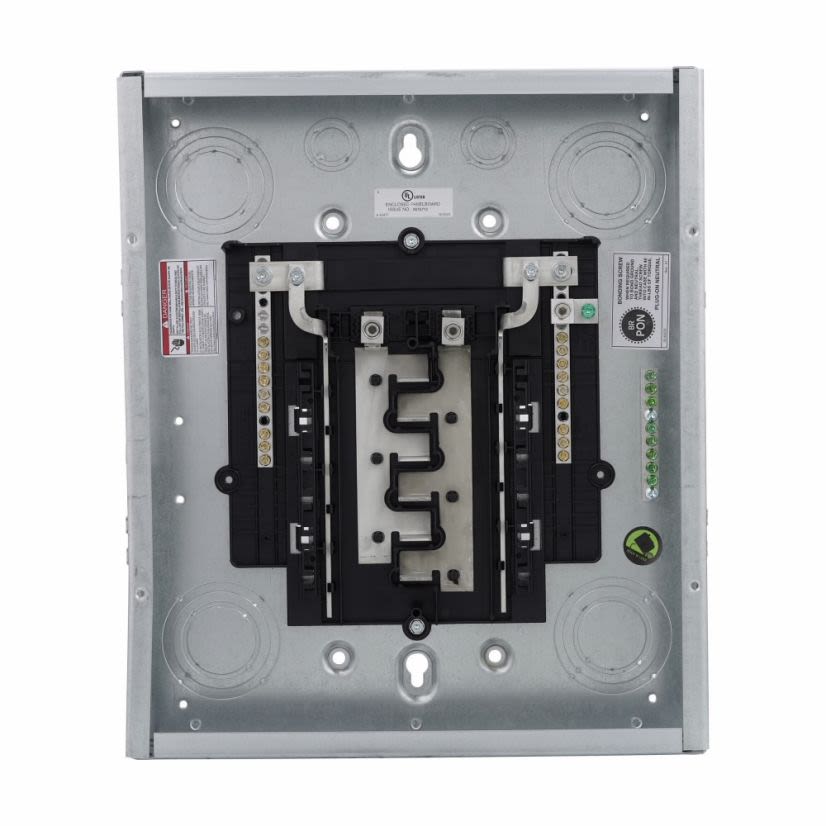

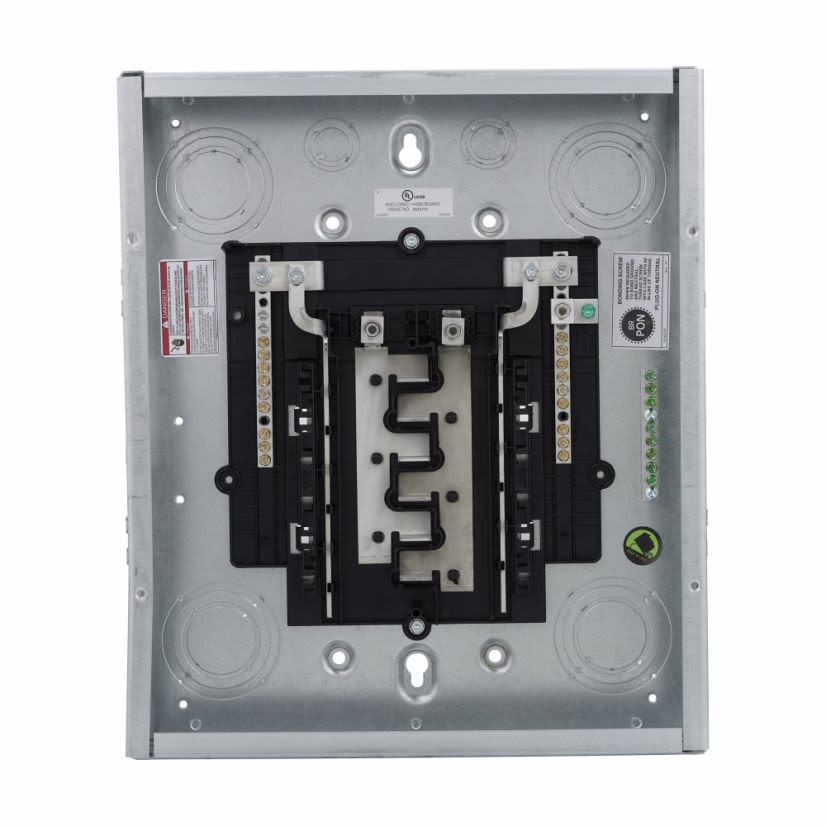

Cutler & Hammer BRP12L125G 1-Pole Type BR Main Lug Loadcenter 125 A 12 Spaces 24 Circuits

Product Description

The Cutler & Hammer BRP12L125G is a 1-Pole Type BR Main Lug Loadcenter, designed for 120/240 VAC and rated at 125 A. This 1-phase unit features 24 circuits with an aluminum bus and 12 spaces, accommodating 6 - 2/0 AWG copper/aluminum wire. It has a 10 kAIC interrupt rating and a NEMA 1 Indoor metallic housing, measuring 16-3/4 Inch L x 14.31 Inch W x 3.88 Inch H.

• 1 Inch breaker loadcenter design for efficient power distribution.
• Plug-on neutral design simplifies wiring and installation processes.
• NEMA 1 indoor enclosure with combination trim for protected applications.

Product Highlights

This loadcenter offers efficient power distribution with a plug-on neutral design and robust metallic housing, suitable for indoor applications.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: BRP12L125G
• Country of Origin: US

Technical Specifications

• Type: 1-Pole Type BR
• Voltage Rating: 120/240 VAC
• Amperage Rating: 125 A
• Number of Phases: 1
• Interrupt Rating: 10 kAIC
• Number of Circuits: 24
• Circuit Breaker Type: BR2125
• Wiring Configuration: 3-Wire
• Bus Material: Aluminum
• Number of Spaces: 12
• Wire Size: 6 - 2/0 AWG Copper/Aluminum
• Mounting Type: Plug-On
• Enclosure Type: NEMA 1 Indoor
• Enclosure Box Size: X0
• Housing Material: Metallic
• Main Connection Type: MLO
• Connection Type: Line/Load
• Series: C Series
