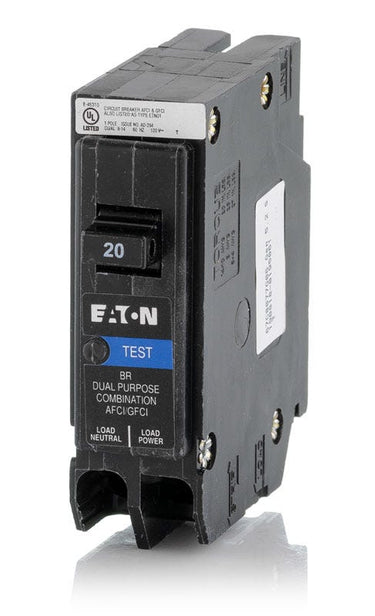

Cutler & Hammer BRP120DF BR Series Dual Function Circuit Breaker 20 Amp

Product Description

The Cutler & Hammer BRP120DF is a BR series single pole 20 Amp plug-in Dual Function AFCI & GFCI Circuit Breaker with a maximum voltage rating of 120V. Designed for residential protection, it combines arc-fault and ground-fault detection into one device. It meets NEC requirements for kitchens, laundry rooms, and general living areas.

• Combines arc-fault and ground-fault detection
• Meets NEC requirements for kitchens, laundry rooms, and general living areas
• Integrated LED trip indicator

Product Highlights

The Cutler-Hammer BRP120DF is a reliable circuit breaker for residential applications. It combines arc-fault and ground-fault detection into one device.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: BRP120DF

Technical Specifications

• Manufacturer: Eaton Cutler Hammer
• Family: BRN Dual Function Circuit AFCI & GFCI Circuit Breaker
• Type: BR
• Cat. No.: BRP120DF
• Poles: 1
• Amperage: 20A
• Voltage: 120VAC
• Phase: 1
• Connection: Plug-In Neutral
• Functions: (LI) Long-Time and Instantaneous
• Interrupting Rating: 10kA@120V
• Approval: UL
• Series: BRP
• AIC Rating: 10
• Special Classification: Dual Function (AFCI/GFCI)
• Mounting Style: Plug-On
• Terminal Type: Box Lugs
• For Use With: Eaton BR Plug-On Neutral Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LIG
• Trip Function: Long-Time, Instantaneous, Ground Fault
• Trip Adjustability: Fixed
• Wire Gauge: 14-4 AWG (Cu/Al)
• Max Wire: 4 AWG
• Min Wire: 14 AWG
• Available Options: Padlock Attachment, Handle Lock
• Standards: UL 1699, UL 489, UL 943
• Temp Rating: 40C
• MPN: BRP120DF
• Model: Eaton BRP120DF
• Suitable For: Interior
• Current Type: AC
• Control Style: Analog/Mechanical
• Number of Spaces: 1
• Operation Method: On/Off
• Application: Commercial
• Interruption Type: Arc Fault Circuit Interrupter (AFCI)
• Room: Any Room
• Maximum Amperage: 20 A
• Number of Phases: 1
• Current Rating: 16-30 A
• Material: Plastic
• Main Breaker: Type
• Break Time: Time Delay (Long)
• Voltage Rating: 120 VAC
• Wire Size: 14 - 4 AWG Copper/Aluminum
• Temperature Rating: 60/70 deg C
• Includes: LED Diagnostics
• Mfr Brand Name: CUTLER HAMMER
• Catalog No.: BRP120DF
• Product Name: CUTLER HAMMER BRP120DF N 20A 120V 1P 10K NEW
• Amps: 20
• Volts: 120
