Product Description

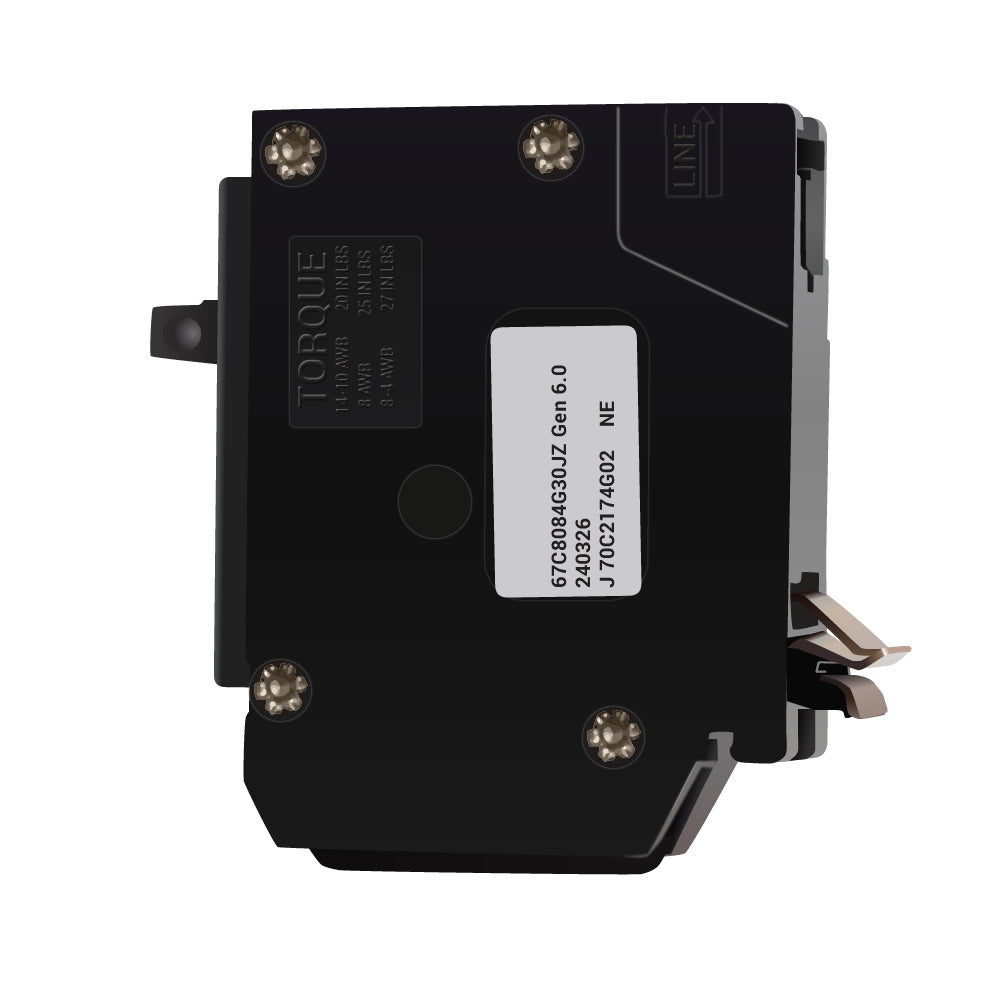

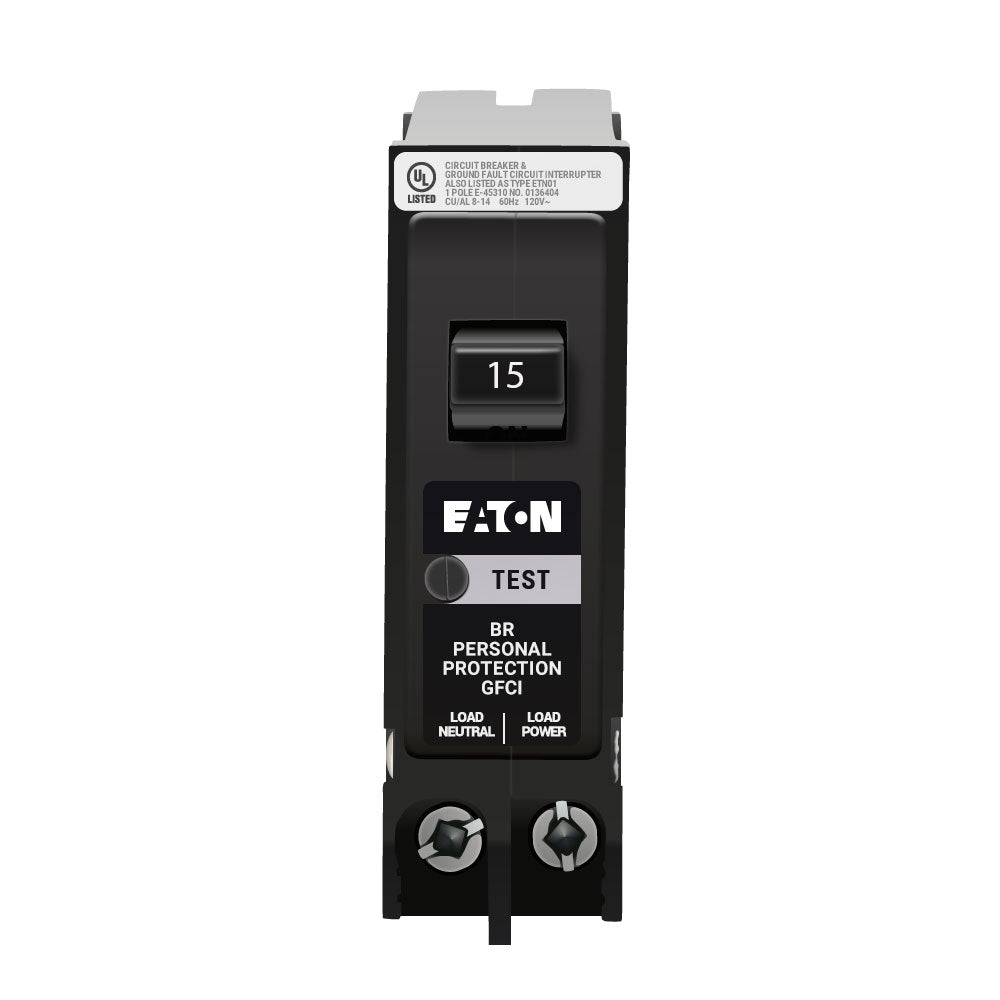

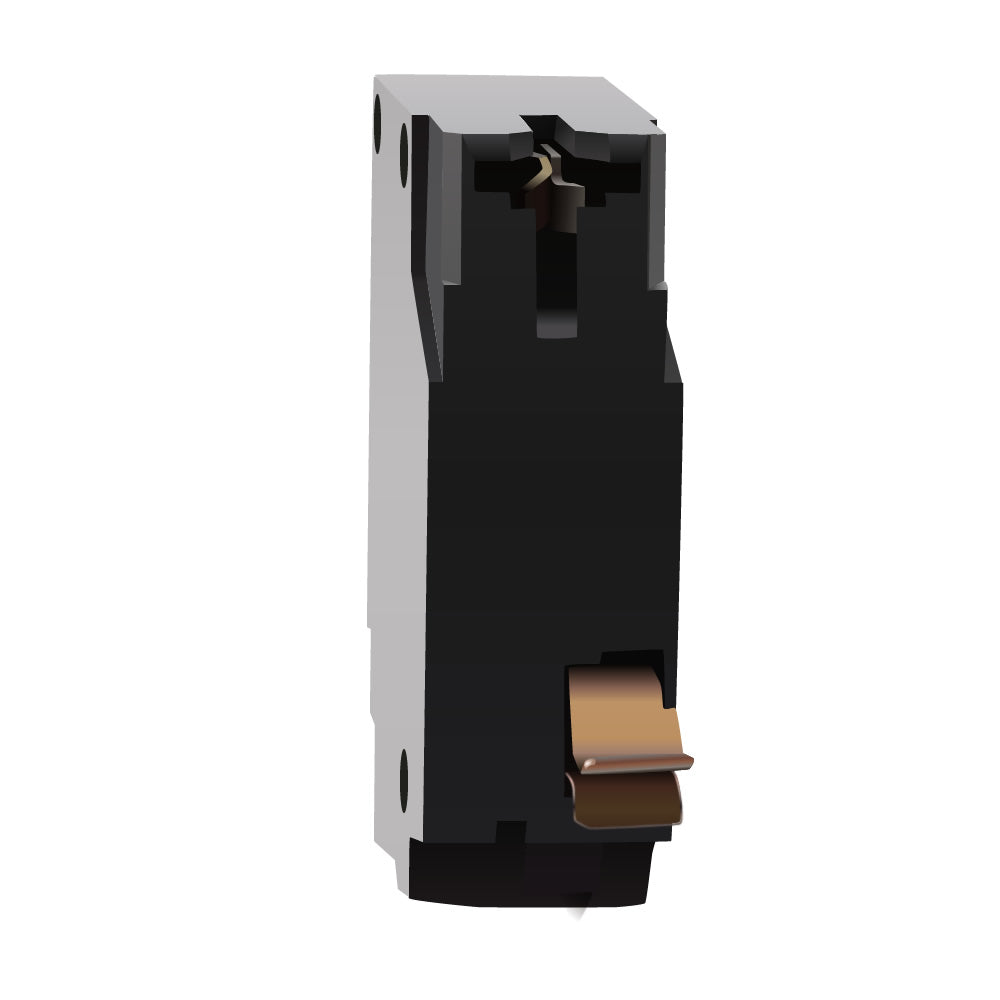

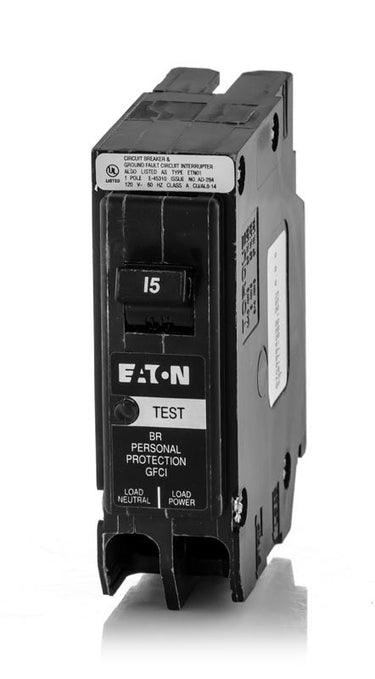

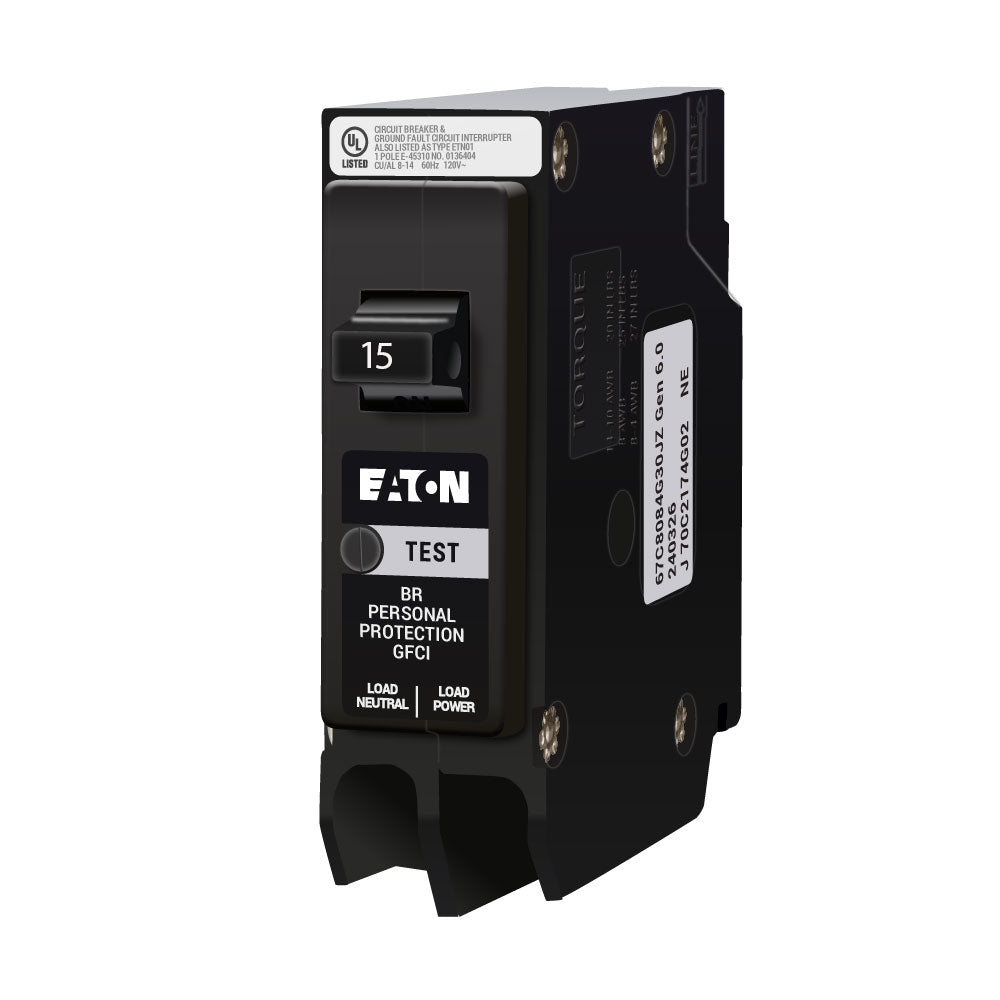

The CUTLER & HAMMER BRP115GF is a 15-amp ground-fault interrupter designed to prevent electrical shock. It delivers 5mA trip sensitivity and is engineered for Eaton BR Plug-On Neutral load centers. This single-pole breaker eliminates the pigtail wire, connecting to the neutral bar for a cleaner panel layout. The 10 kAIC unit includes self-testing capabilities and an LED trip indicator.
- 15-amp ground-fault interrupter
- 5mA trip sensitivity
- Single-pole breaker
Product Highlights
15A GFCI breaker with 5mA trip sensitivity, designed for Eaton BR Plug-On Neutral load centers. Features self-testing and LED trip indicator.
Product Information
Standard Information
-
Brand: CUTLER & HAMMER
-
Manufacturer Part Number: BRP115GF
Technical Specifications
-
Brand: Eaton / Cutler-Hammer
-
Series: BRP
-
Part Number: BRP115GF
-
Amperage: 15A
-
Voltage: 120/240VAC
-
Poles: 1
-
Phase: 1
-
AIC Rating: 10kA @ 120/240VAC
-
Special Classification: GFCI
-
Mounting Style: Plug-On
-
Terminal Type: Box Lugs
-
For Use With: Eaton BR Plug-On Neutral Load Centers
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LIG
-
Trip Function: Long-Time, Instantaneous, Ground Fault
-
Trip Adjustability: Fixed
-
Wire Gauge: 14-8 AWG (Cu/Al)
-
Max Wire: 8 AWG
-
Min Wire: 14 AWG
-
Available Options: Padlock Attachment
-
Standards: UL 489, UL 943
-
Approval: UL
-
Temp Rating: 40C
-
Family: BR Series
-
Connection: Plug-In
-
Type: Type BR, GFCI Personnel Protection
-
Functions: LI - Long-Time and Instantaneous
-
Protection: 5 mA
-
Voltage Rating: 120 VAC
-
Interrupt Rating: 10 kAIC
-
Wire Size: 14 - 4 AWG Copper/Aluminum
-
Temperature Rating: 60/70 deg C
-
Includes: LED Diagnostics
-
MPN: BRP115GF
-
UPC: 786689031152
