Cutler & Hammer BRN120AF Circuit Breaker 20 Amps 120V AC

Product Description

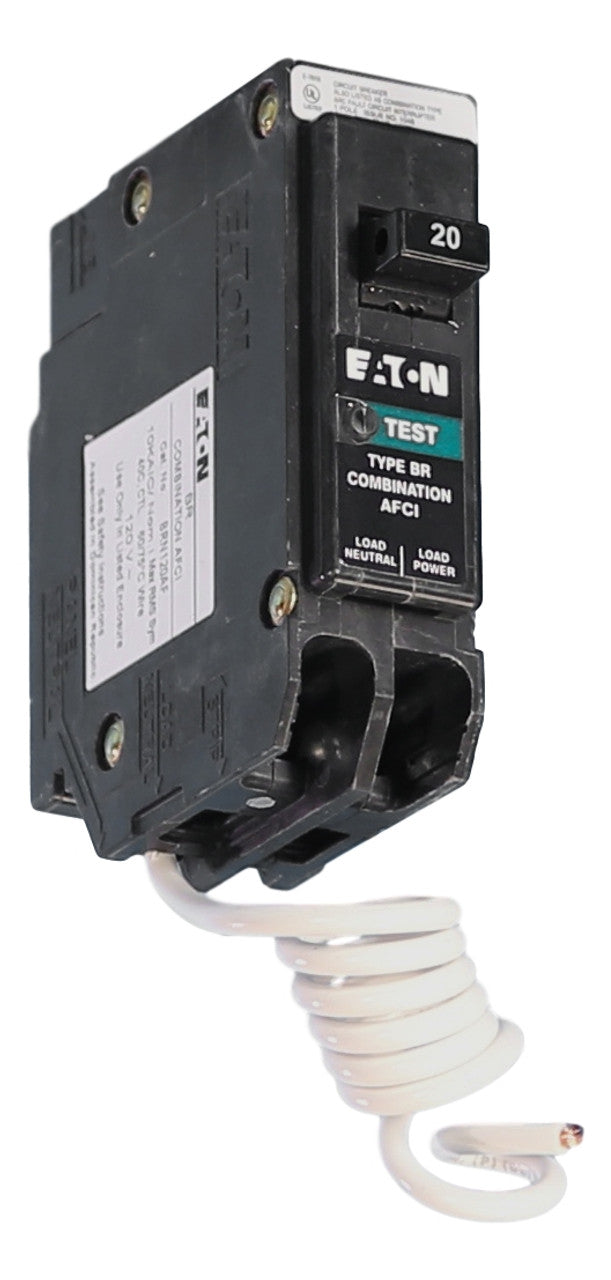

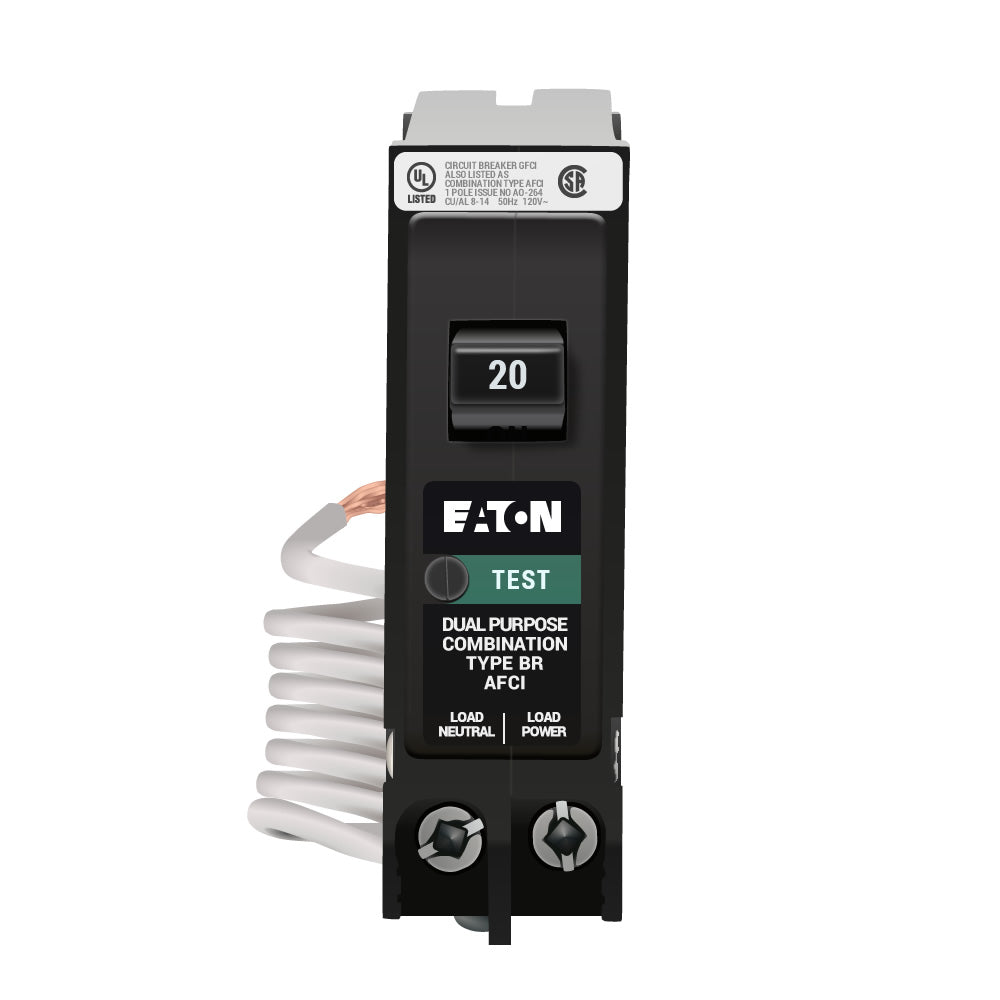

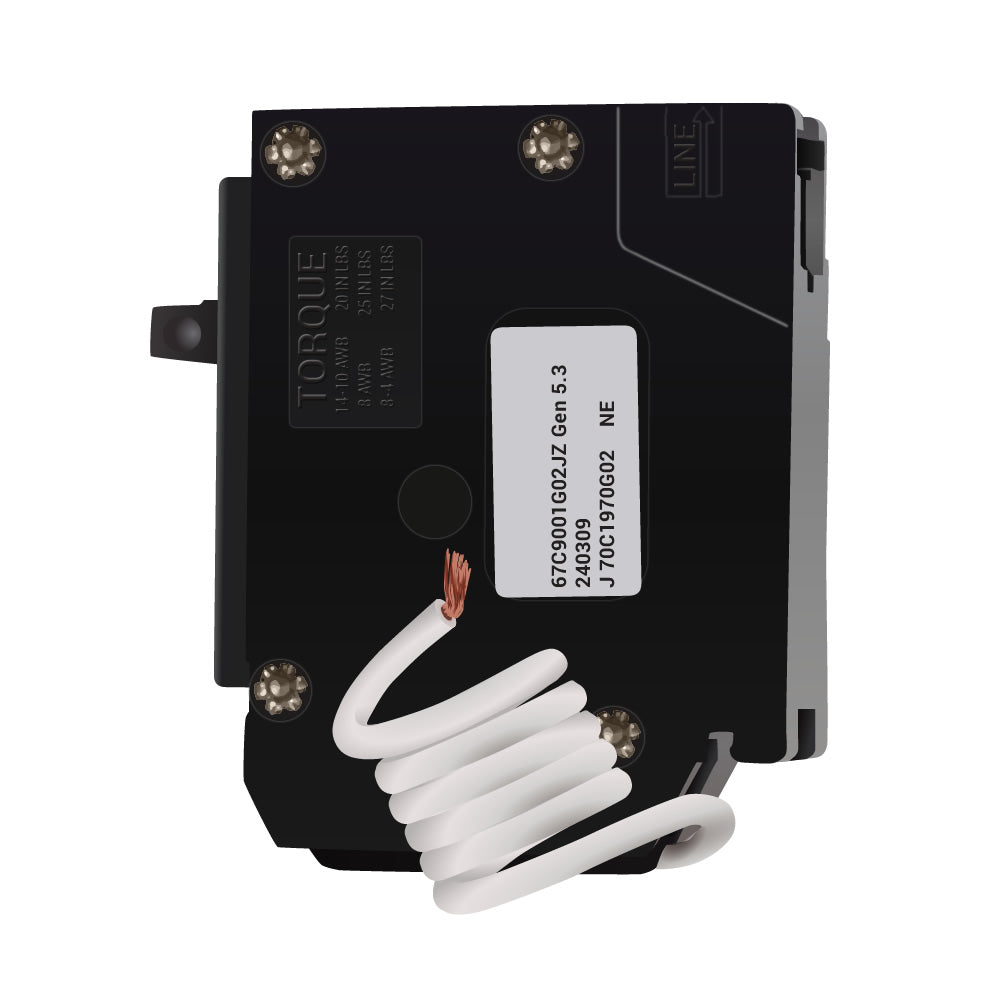

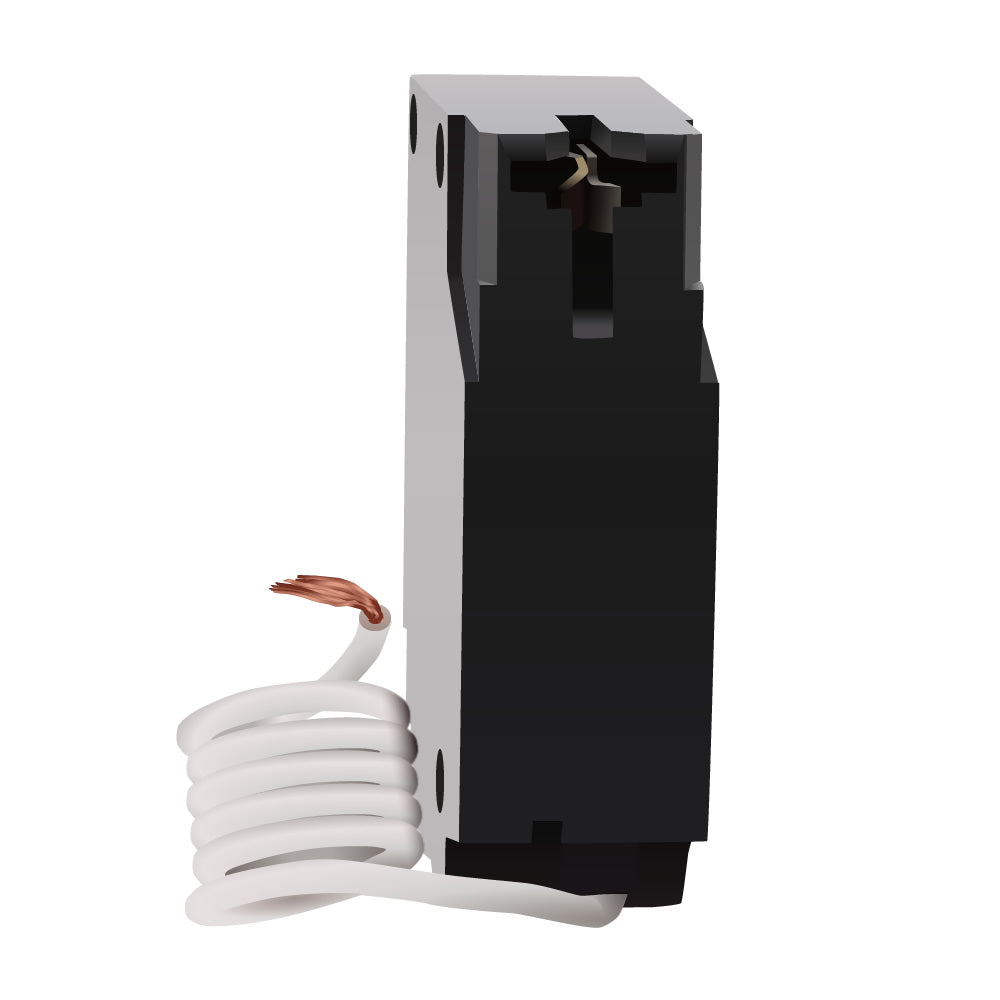

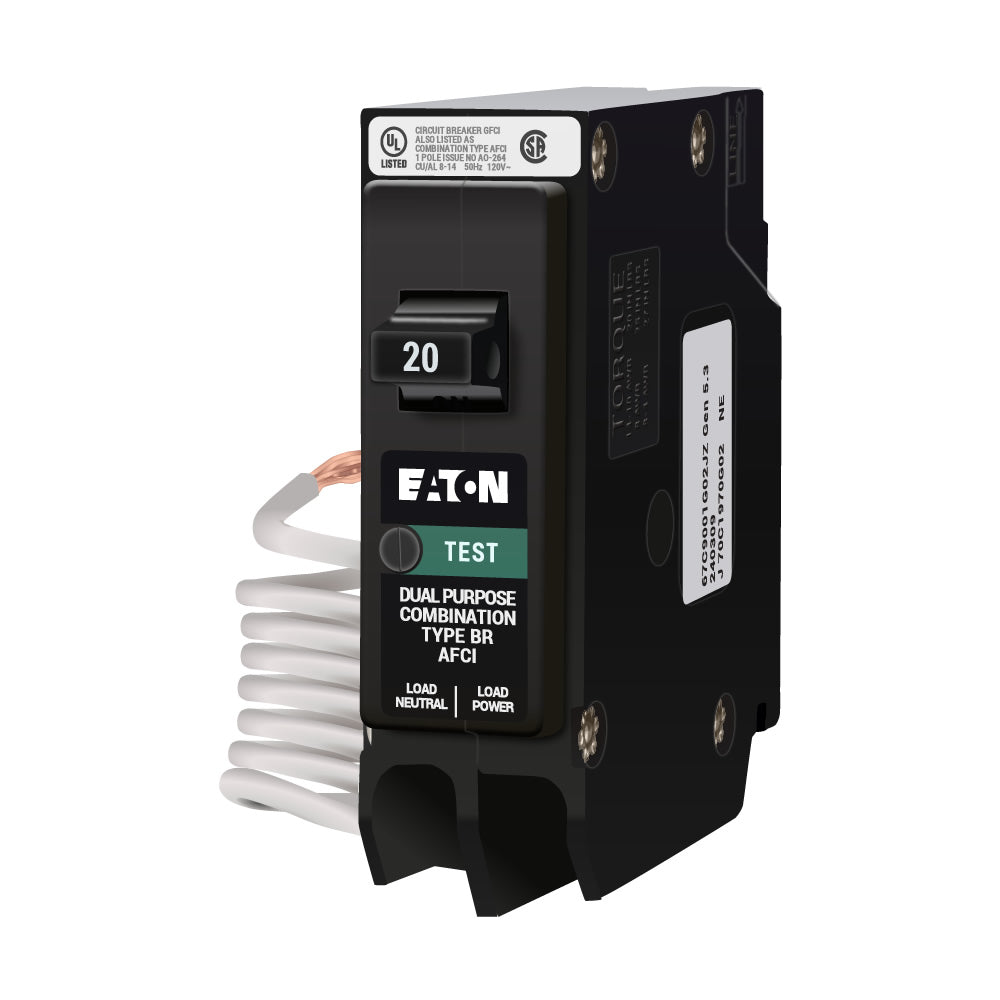

The Cutler & Hammer BRN120AF is a single-pole combination arc fault circuit breaker. It is rated for twenty Amps and one hundred twenty volts AC. The interrupting rating is ten kAIC at one hundred twenty volts AC. This breaker features a plug-on connection, thermal magnetic protection, and includes a pigtail neutral. It is designed for type BR load centers and accommodates wire sizes from fourteen to eight AWG copper or aluminum.

• Single-pole combination arc fault circuit breaker (CAFCI)
• Rated for twenty Amps and one hundred twenty volts AC
• Includes thermal magnetic protection and a pigtail neutral

Product Highlights

Product Information

Standard Information

• Brand: Cutler & Hammer
• MPN: BRN120AF

Technical Specifications

• Amperage: 20 A
• Voltage: 120 VAC
• Number of Poles: 1
• Phase: 1
• Mounting Type: Plug-on
• Certifications: CSA Certified, UL
• Interrupting Rating: 10 kAIC
• Frame Type: BRN
• Connection Type: Plug-In
• Protection: Thermal Magnetic
• Functions: Long-Time and Instantaneous Trip
• Wire Size: #14-8 AWG Cu/Al
• Circuit Breaker Type: CAFCI
• Actuator Type: Toggle
• For Use With: Type BR Loadcenters
• Product Length/Depth: 4 in
• Product Width: 3.5 in
• Product Height: 1 in
• Product Weight: 0.45 lb
• Voltage Protection Rating: 240 V
