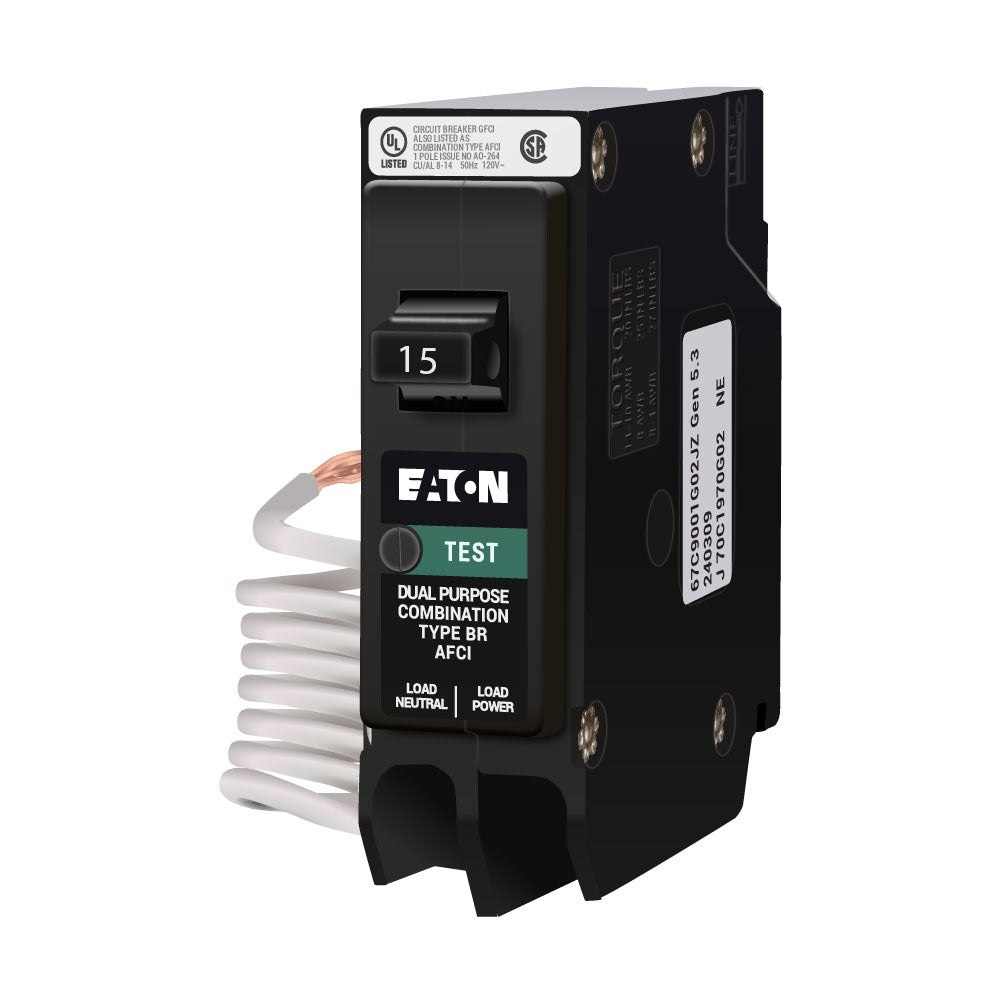

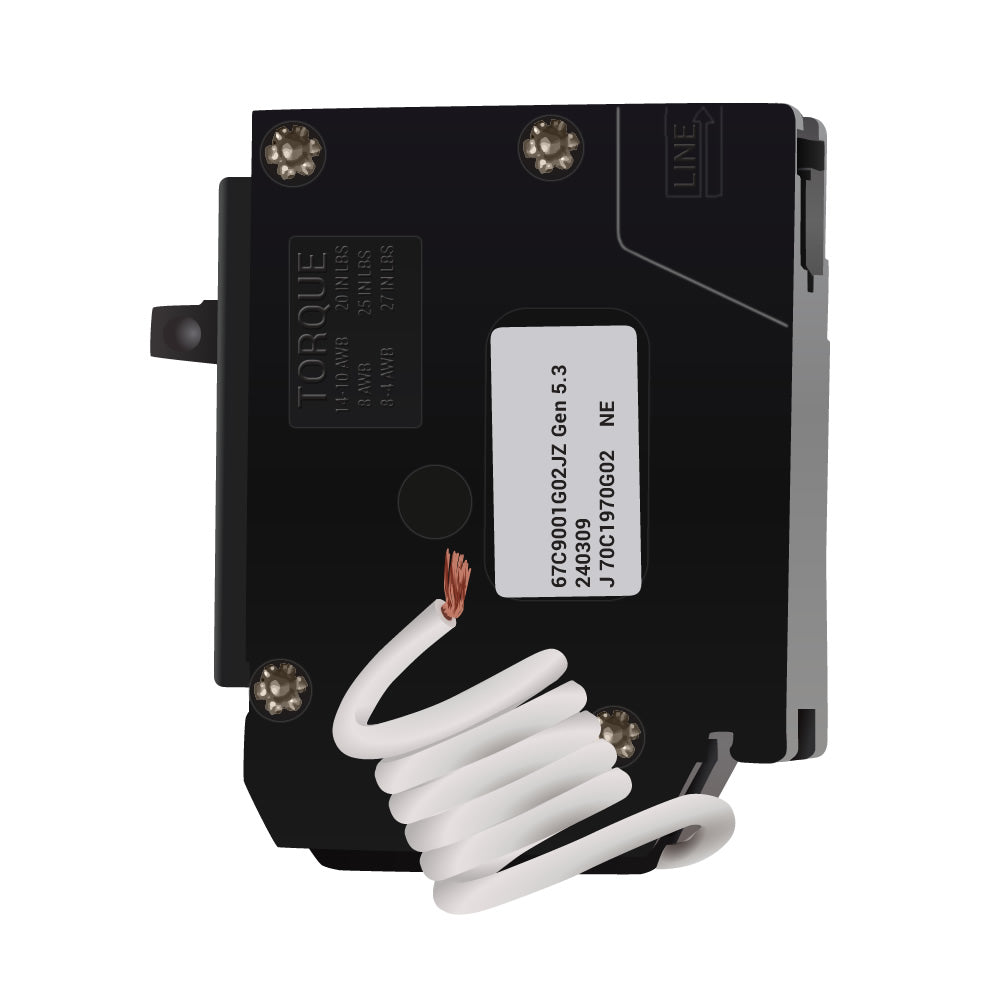

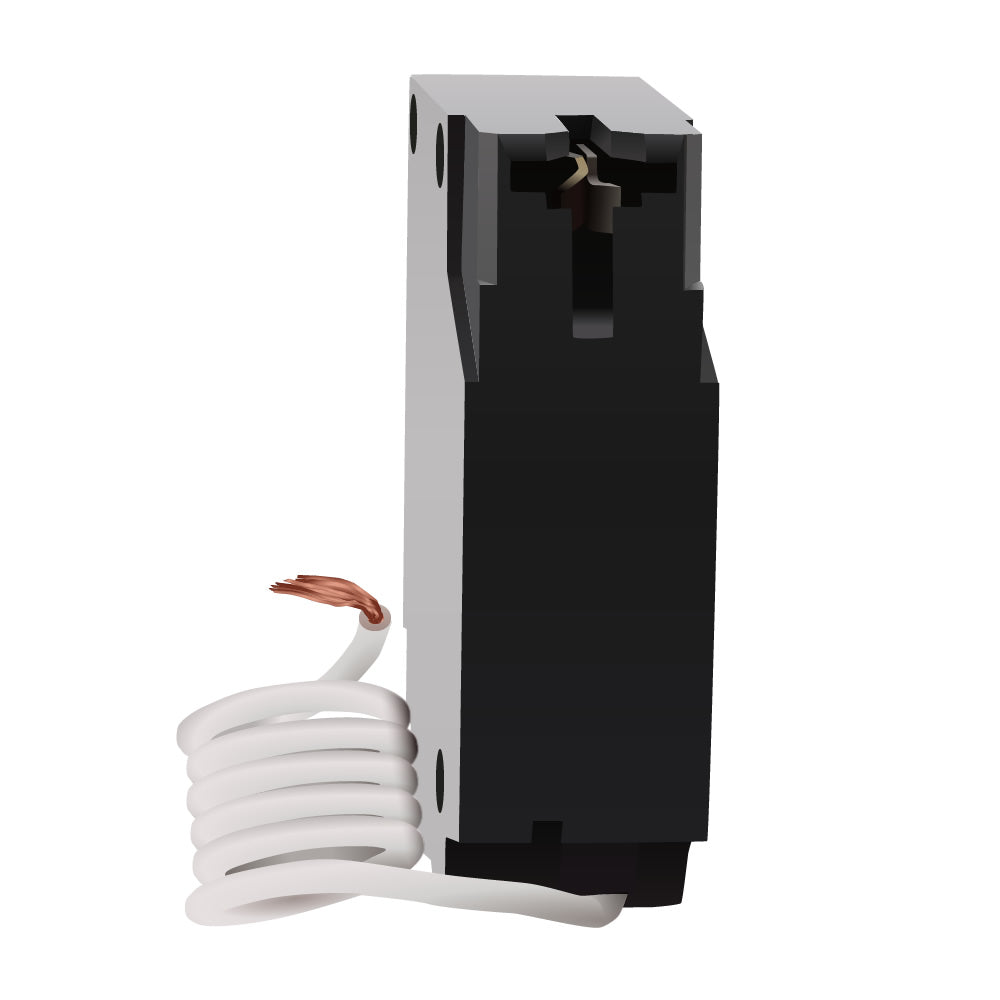

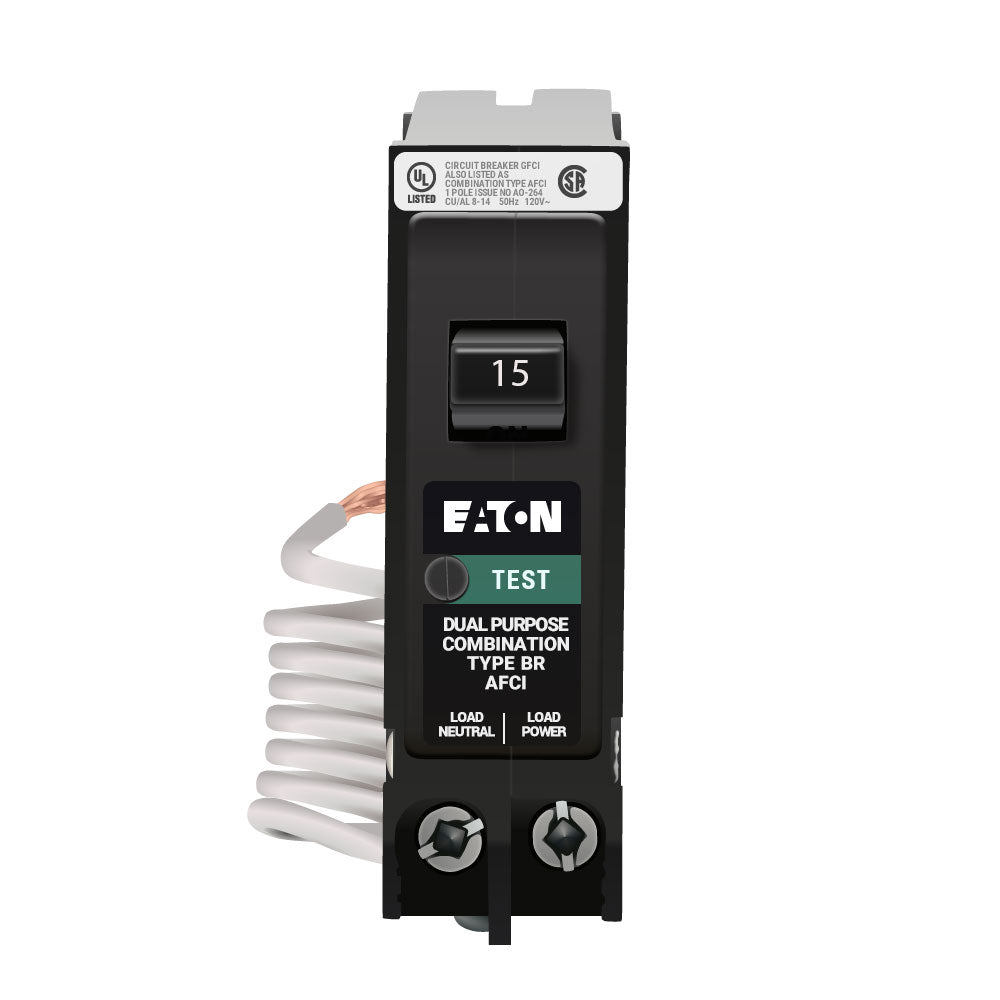

Cutler & Hammer BRN115AF Combination AFCI Circuit Breaker

Product Description

The Cutler & Hammer BRN115AF is a one-pole combination arc fault circuit interrupter (AFCI). It protects electrical circuits from arc faults effectively. This molded case circuit breaker operates at fifteen Amps with a voltage rating of one hundred twenty. It features thermal-magnetic trip protection and is equipped with a pigtail connection.

• Combination Arc Fault Circuit Interrupter (AFCI)
• Rated for 15 Amps and 120V
• Type BR breaker for plug-in connections

Product Highlights

This circuit breaker is designed for use with both copper and aluminum wire. It is a Type BR breaker that simplifies plug-in connections.

Product Information

Standard Information

• Brand: Cutler-Hammer
• MPN: BRN115AF

Technical Specifications

• Amperage: 15 Amp
• Poles: 1 Pole
• Voltage: 120V
• Type: BRN
• Wire Size: #14-8 AWG Cu/Al
• Family: Type BR
• Phase: 1
• Category: Molded Case Breakers
• Connection: Plug-In
• Protection: Thermal Magnetic
• AIC Ratings: 10kA@120V
