Cutler-Hammer BR816L125RP CHC BR813L125RP 1PH 125A LD-CTR

Product Description

The Cutler-Hammer BR816L125RP is a main lug load center with a capacity of one hundred twenty-five amps. It is ideal for electric distribution and control applications. This load center is designed for use in residential and commercial settings where reliable power distribution is essential.

• Amperage Rating: 125A
• Voltage Rating: 120/240V
• Single-phase operation

Product Highlights

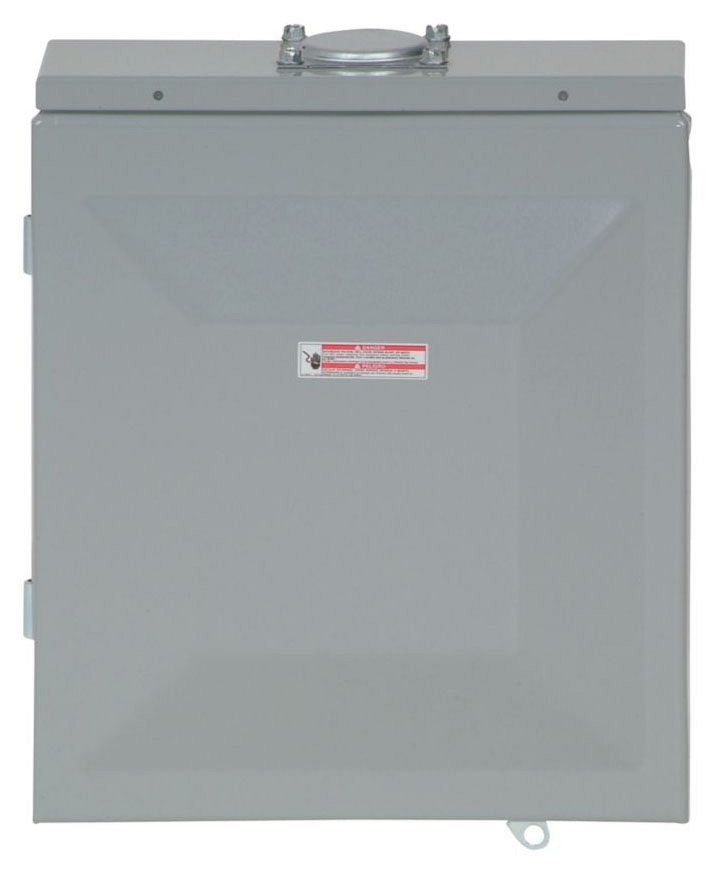

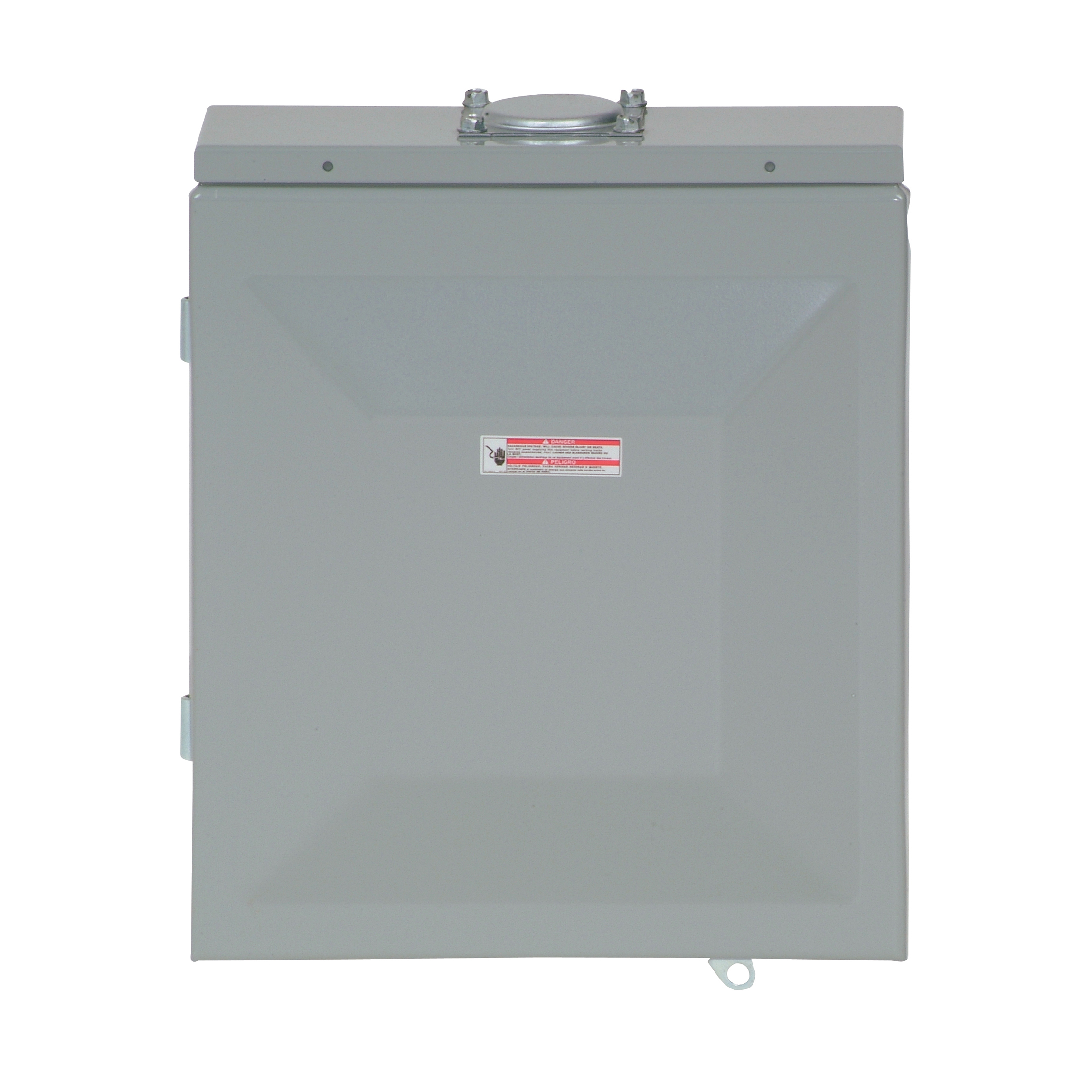

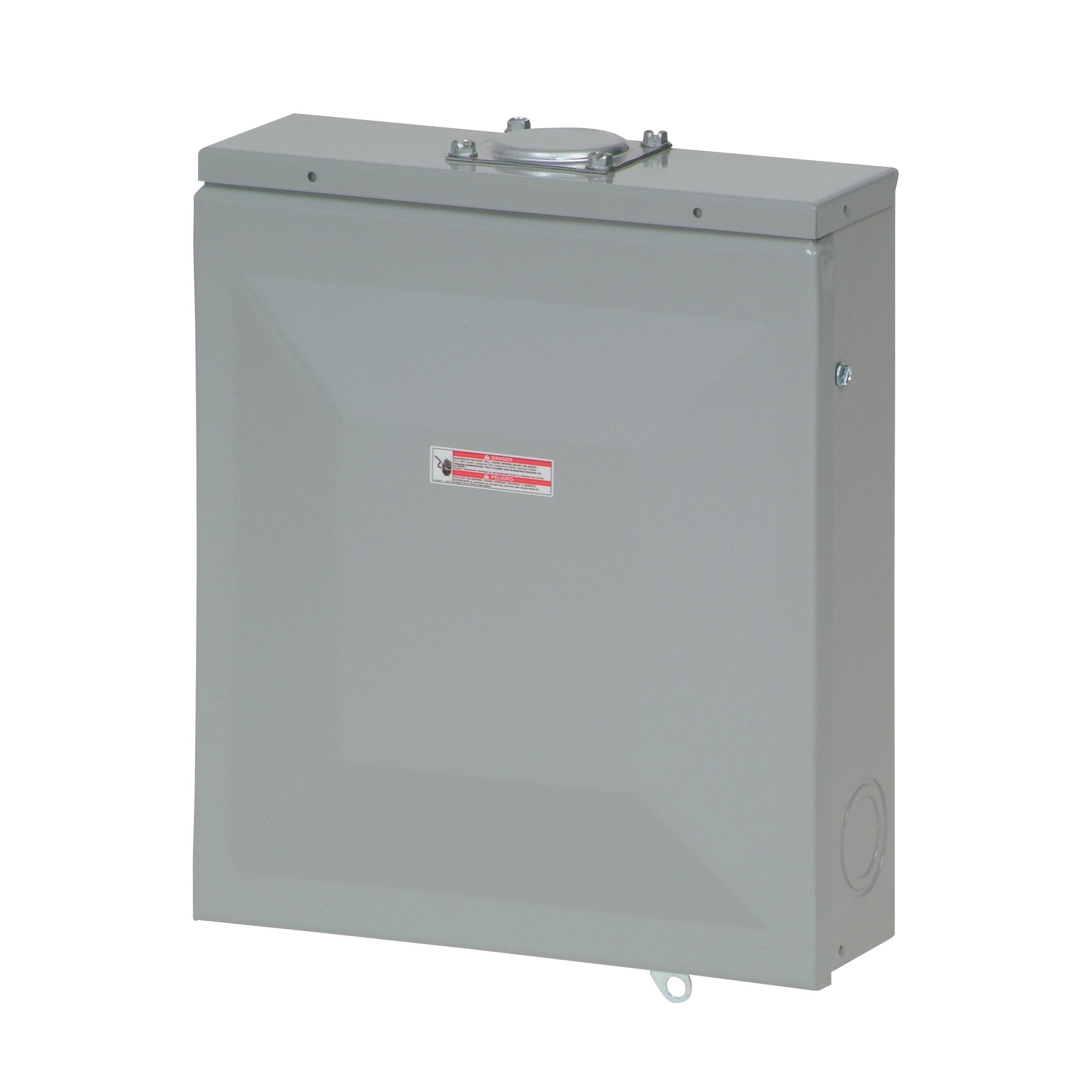

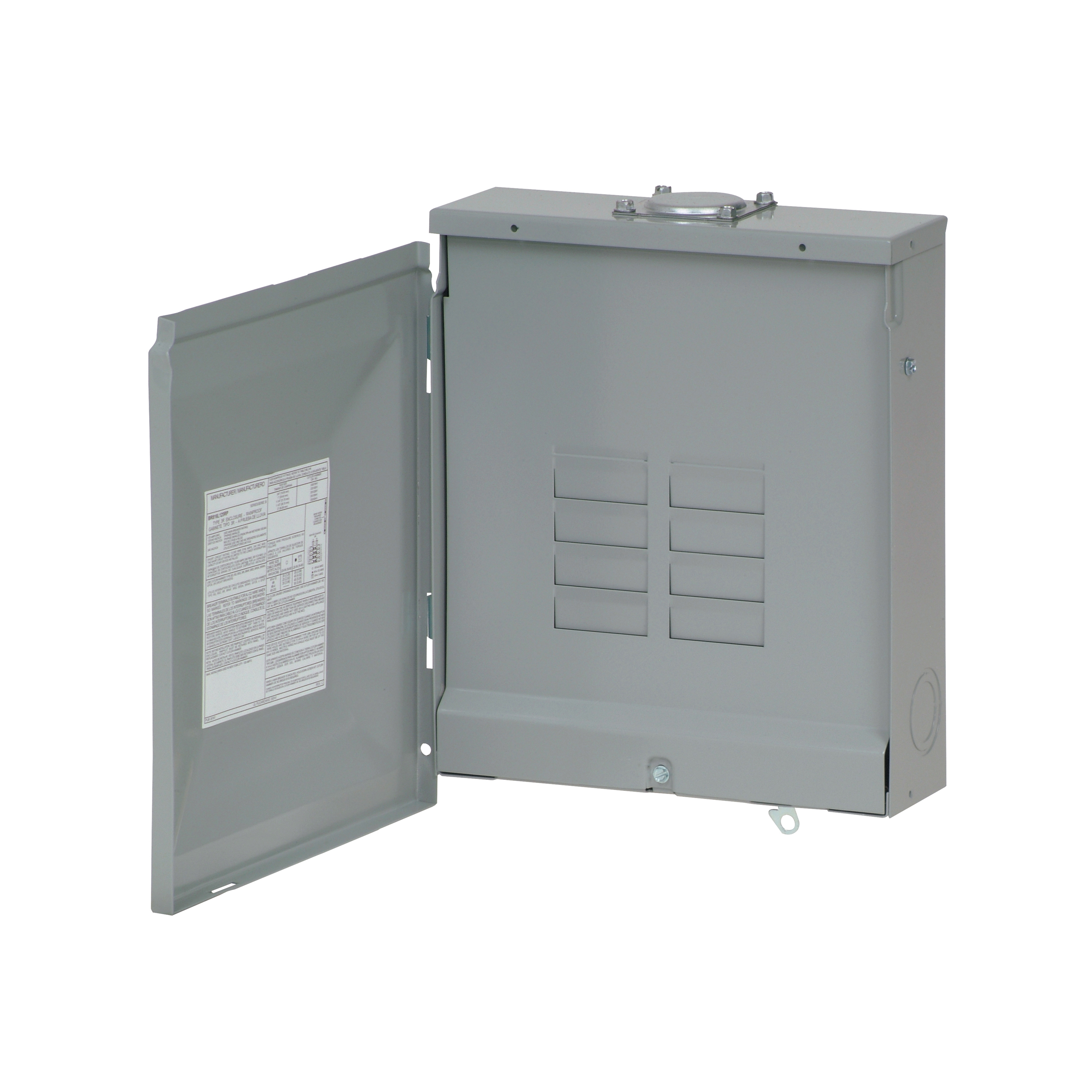

This load center has a metallic enclosure and is NEMA 3R rated, making it suitable for outdoor use. It features a cover for protection and enables easy access for maintenance.

Product Information

Standard Information

• Manufacturer: Cutler-Hammer
• MPN: BR816L125RP

Technical Specifications

• Height: 13 inches
• Length: 3.56 inches
• Width: 11 inches
• Type: Main lug
• Box Size: 7R
• Bus Material: Aluminum
• Number of Circuits: 16
• Number of Spaces: 8
• Wire Size: #14-1 AWG Cu/Al
• Interrupt Rating: 10 kAIC
• Main Circuit Breaker: BR
• Number of Wires: Three-wire
• Phase: Single-phase
• Cover: Cover included
• Enclosure Material: Metallic
• Special Features: Current design
