Cutler & Hammer BR380 Eaton BR Thermal Magnetic Circuit Breaker 80 A Replacement MPN

Product Description

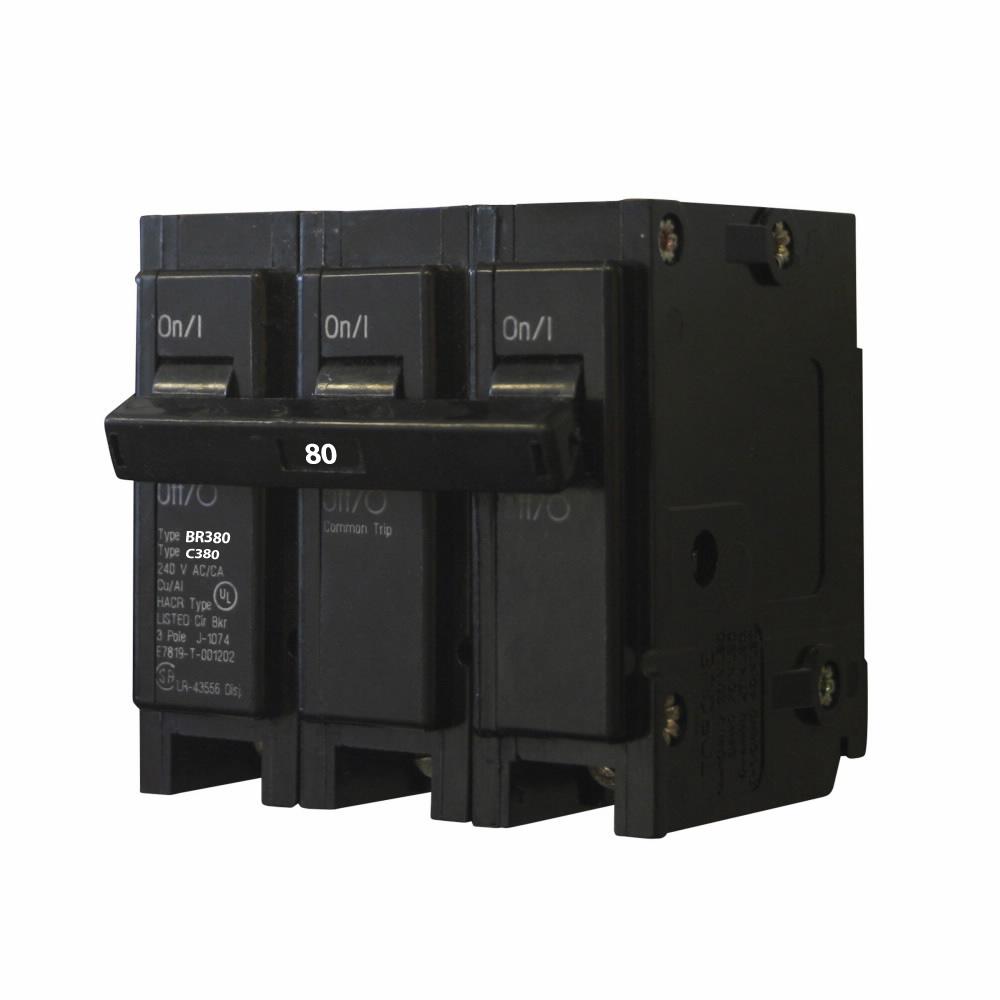

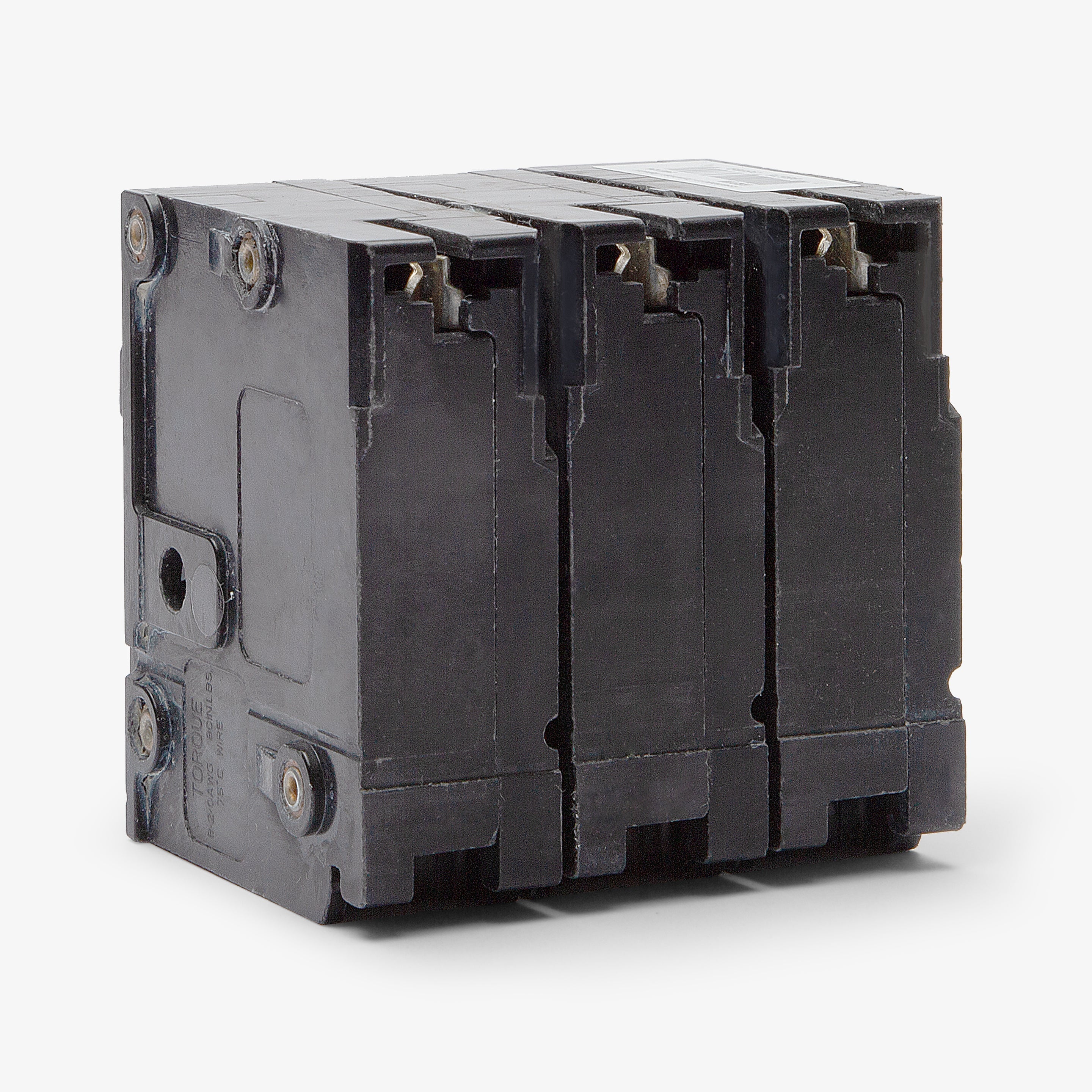

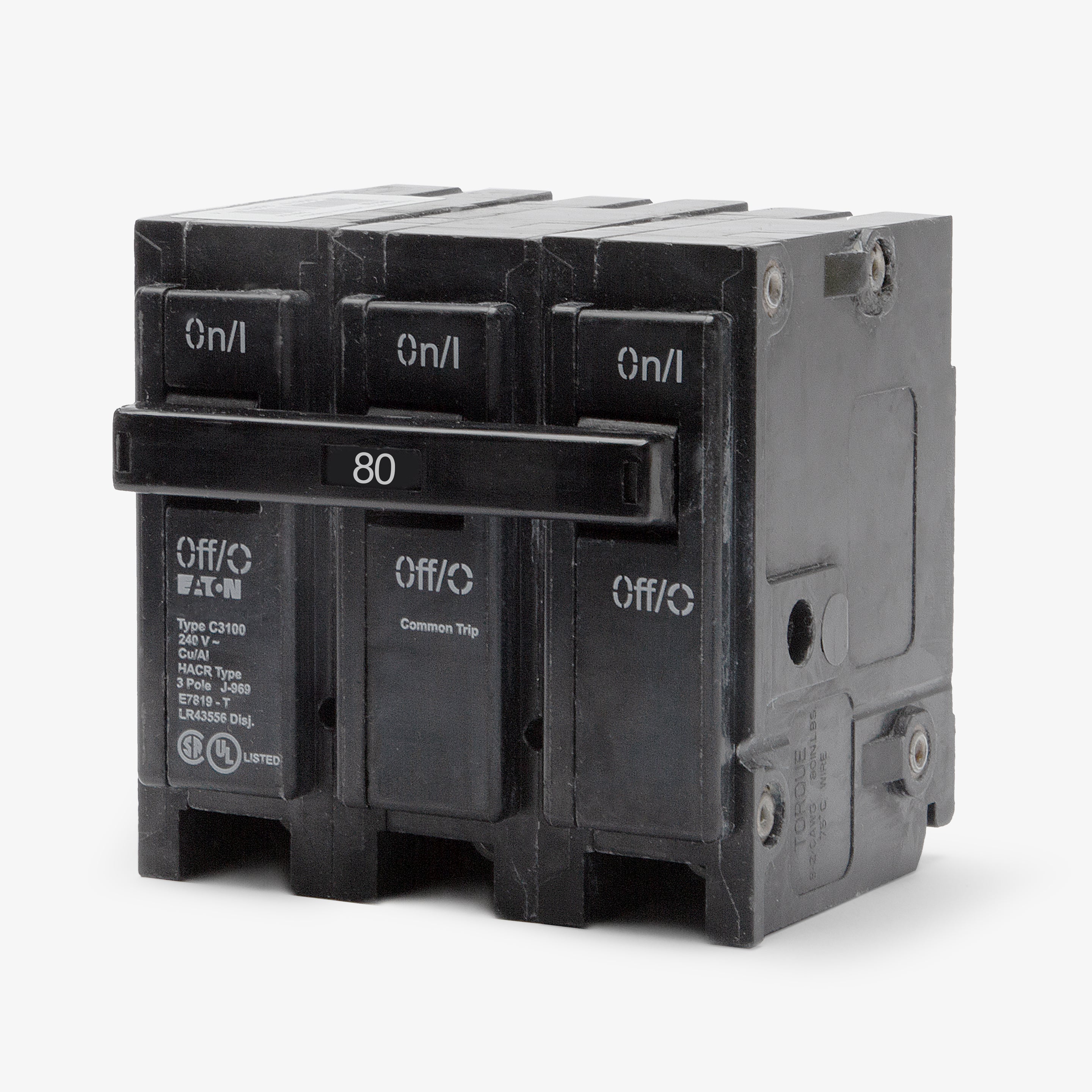

The CUTLER & HAMMER BR380 is an Eaton BR thermal magnetic circuit breaker. This three-pole miniature breaker is designed for residential and commercial applications, providing thermal-magnetic protection for 240VAC branch circuits. The plug-on unit mounts into standard Type BR load centers and accepts 4-1/0 AWG wiring. Rated at 10kAIC, it features common trip functionality and is HACR certified for HVAC equipment.

• Three-pole miniature breaker
• Built for residential and commercial applications
• Thermal-magnetic protection for 240VAC branch circuits

Product Highlights

Eaton BR380 provides reliable circuit protection for diverse applications. It mounts easily into standard load centers.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: BR380

Technical Specifications

• Catalog Number: BR380
• UPC: 782114103098
• Product Length/Depth: 2.9 in
• Product Height: 2.7 in
• Product Width: 2.9 in
• Compliances: Federal Specifications Classification W-C375
• Certifications: UL 489
• Product Type: Thermal magnetic circuit breakers
• Used with: Type BR Loadcenters
• Amperage Rating: 80 A
• Voltage rating: 240 V - 240 V
• Trip Type: Common breaker trip
• Circuit breaker type: BR

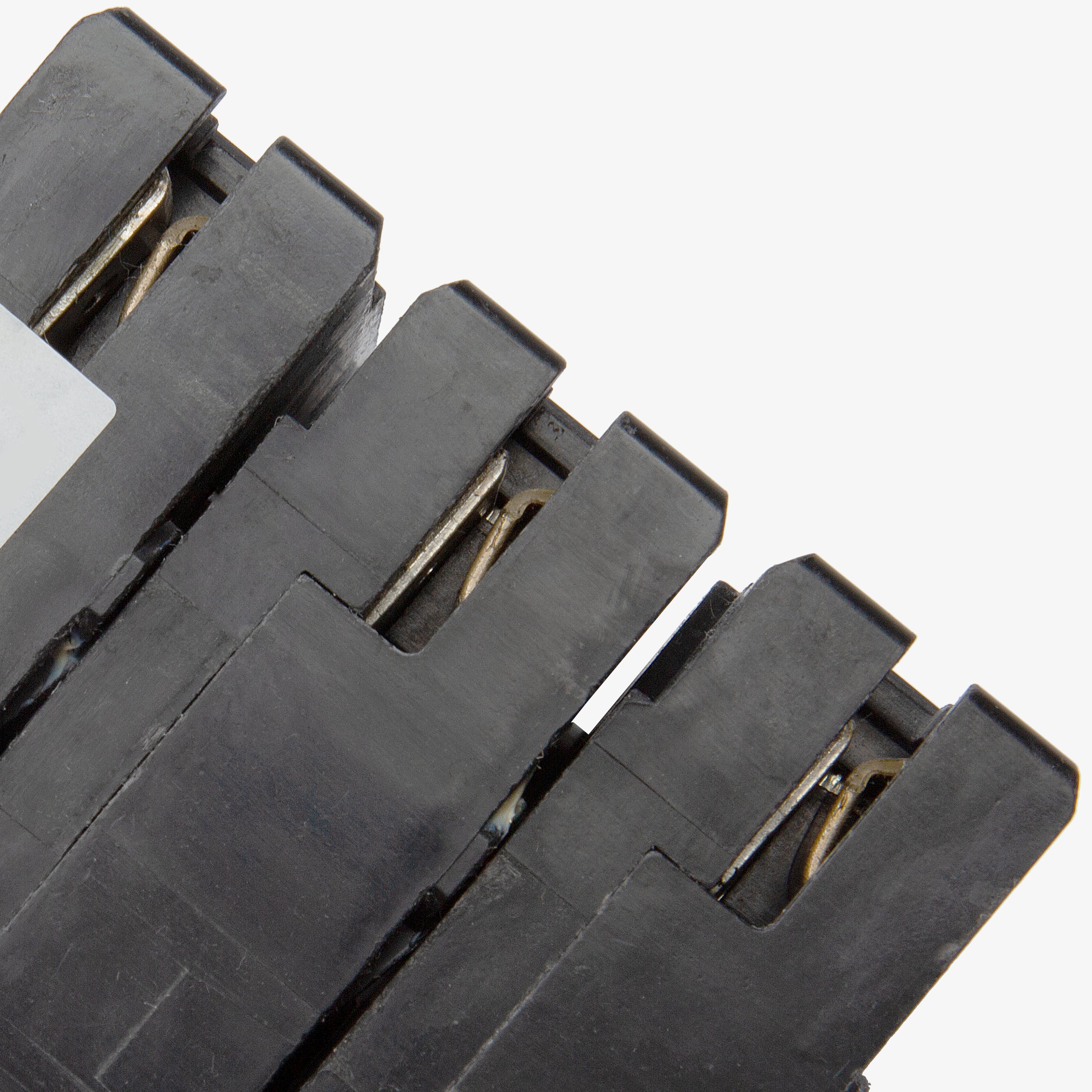

• Mounting Method: Plug-on
• Interrupt rating: 10 kAIC
• Main circuit breaker: BR

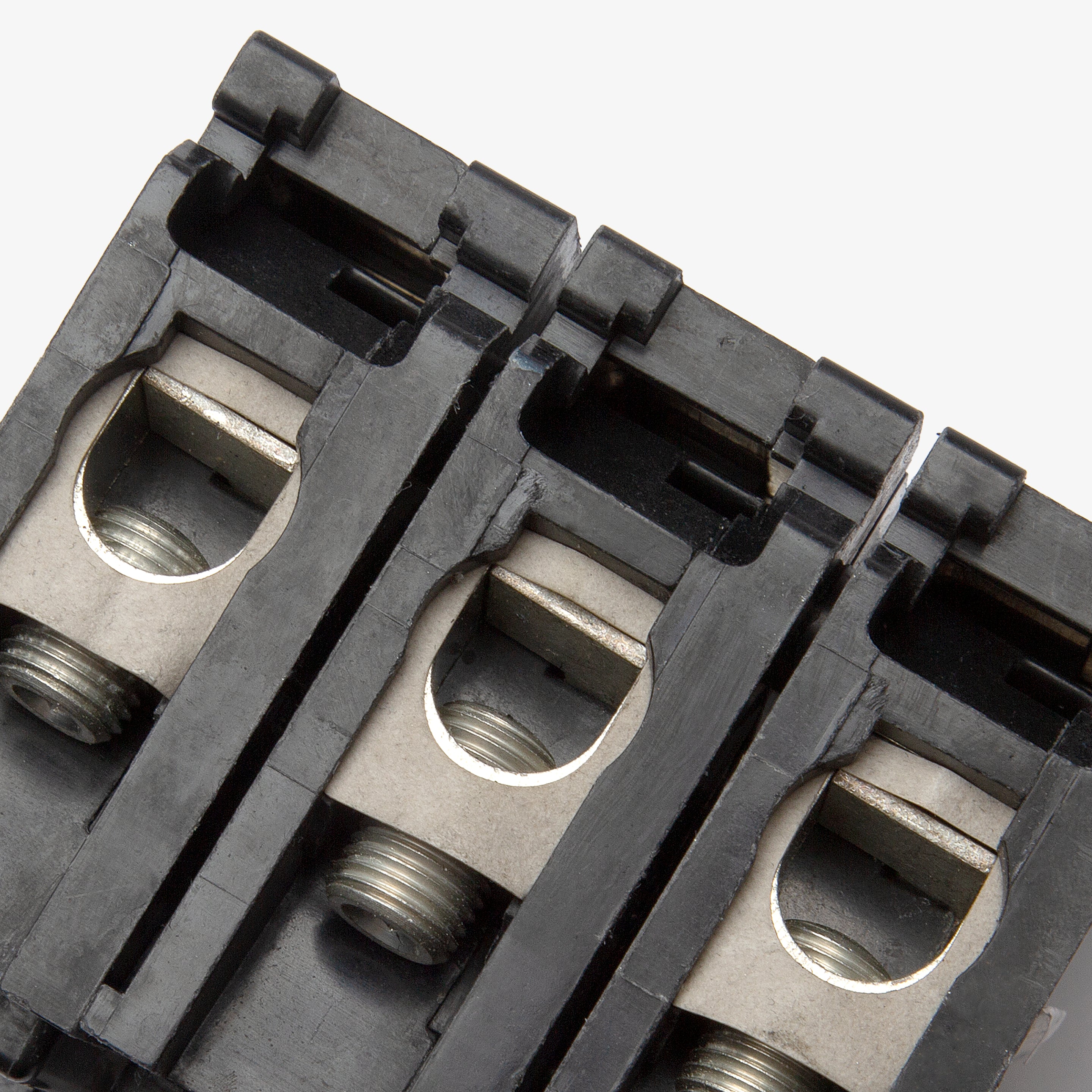

• Wire size: #4-1/0 AWG Cu/Al
• Number of poles: Three-pole
• Type: Type BR 1-Inch plug-on circuit breaker
• Ampere Rating (Amps): 80
• Voltage Rating (VAC): 240
• Mounting Type: Plug-In
• Interrupting Rating (kA): 10
• Wire Size (AWG): #4-1/0 (Cu/Al)
• HACR Rated: Yes
• Standards: UL Listed and CSA Certified
• Brand: Eaton / Cutler-Hammer
• Series: BR
• Part Number: BR380
• Amperage: 80A
• Voltage: 240VAC
• Poles: 3
• Phase: 3
• AIC Rating: 10kA @ 240VAC
• Mounting Style: Plug-On
• Terminal Type: Box Lugs
• For Use With: Type BR Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 4-1/0 AWG (Cu/Al)
• Max Wire: 1/0 AWG
• Min Wire: 4 AWG
• Available Options: Padlock Attachment
• Approval: CSA, UL
• Temp Rating: 60C to 75C
• Construction Features: Common Trip
• Model Number: BR380
• Connection: Plug-in
• Interrupting Capacity: 10,000/22,000 Amperes
