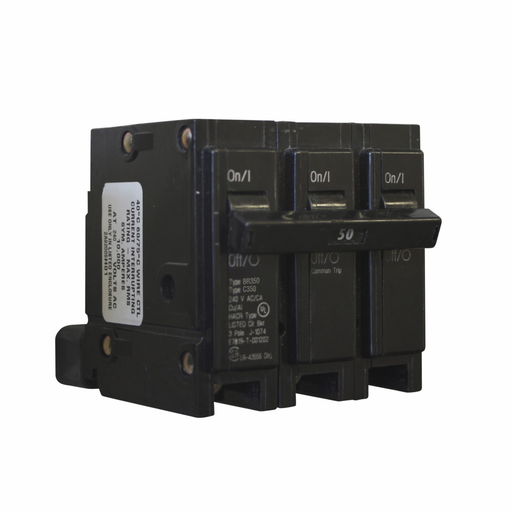

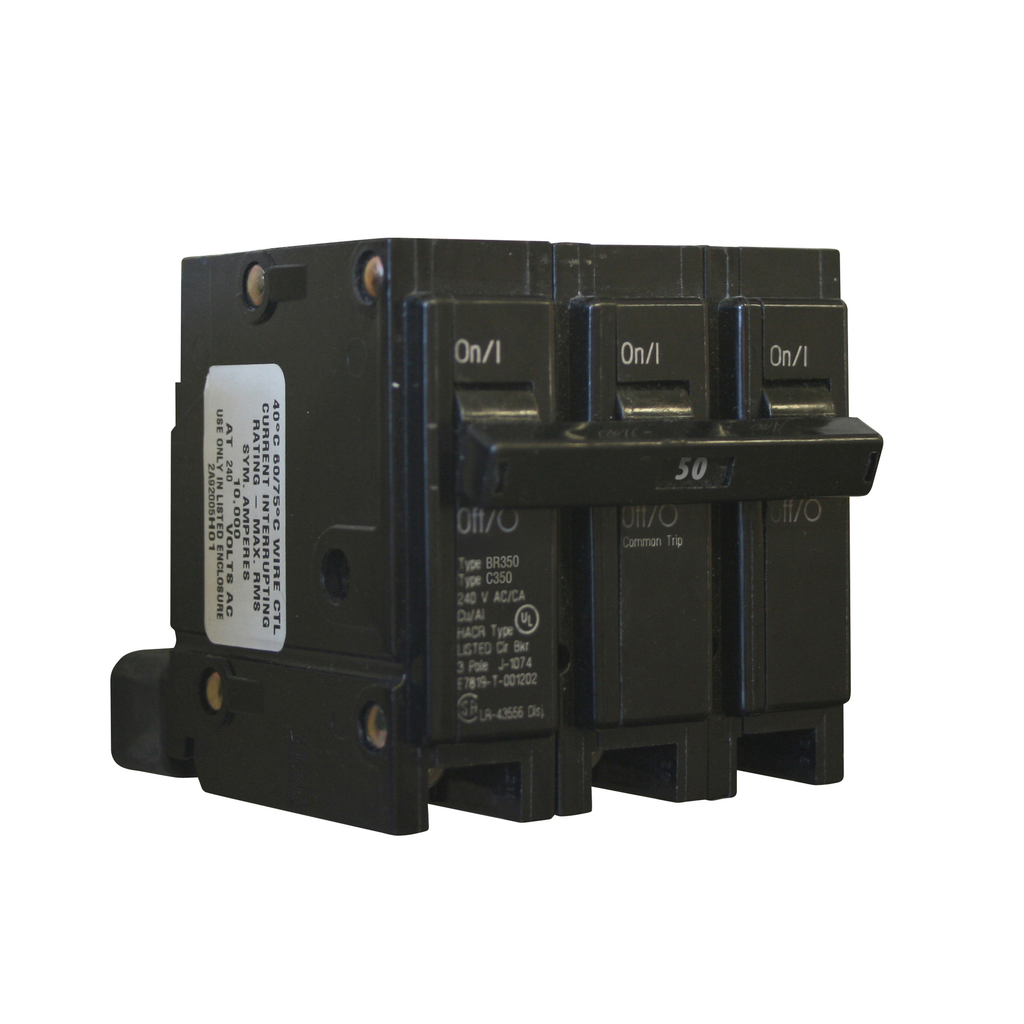

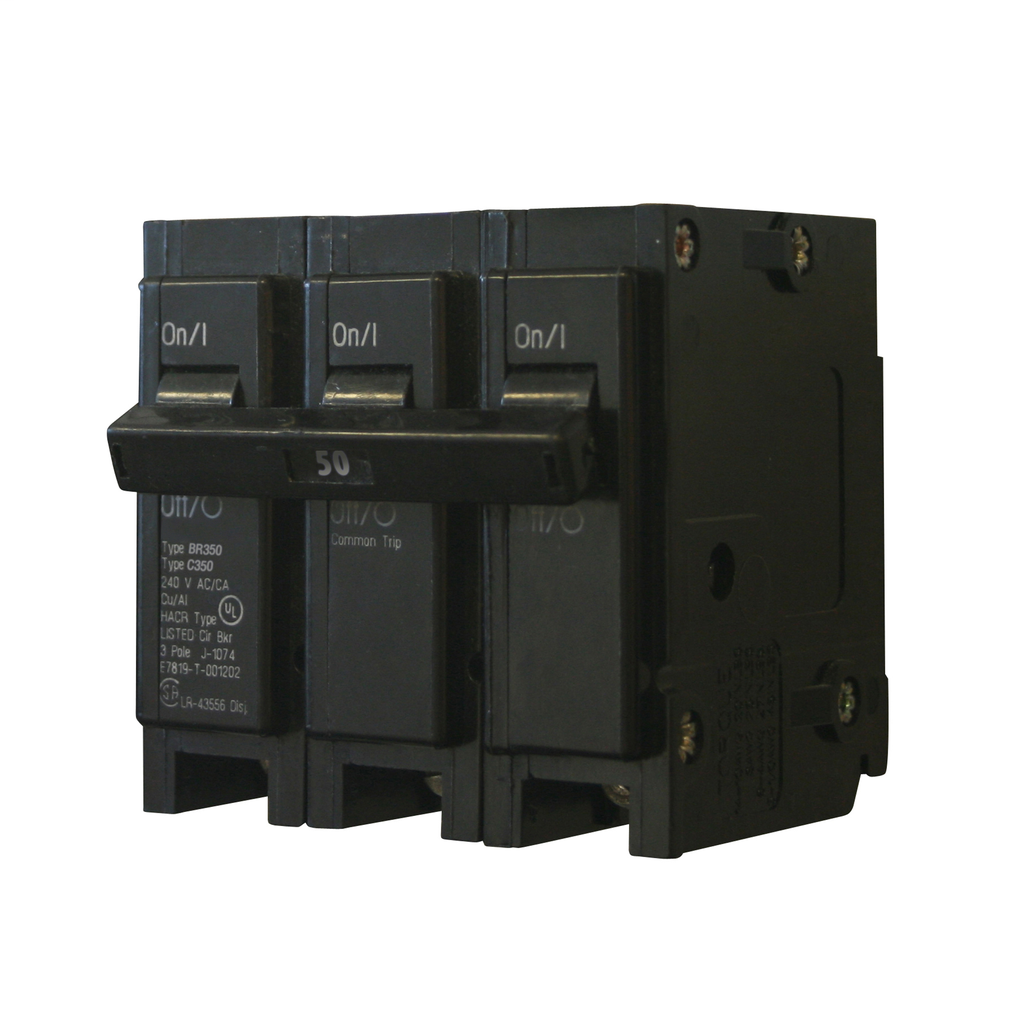

Cutler-Hammer BR350 Eaton Electrical BR350 1 Inch Type BR Plug-On Circuit Breaker

Product Description

The Cutler-Hammer Manufacturing Co. BR350 is a thermal magnetic circuit breaker designed for residential and light commercial applications. This Type BR plug-on breaker is rated at 50 Amps and features a voltage rating of 240 Volts. It has a three-pole configuration and an interrupt rating of 10 kAIC.

• Amperage rating of 50 Amps
• Compatible with Type BR loadcenters
• Trip type includes common breaker and thermal magnetic

Product Highlights

This circuit breaker is suitable for use in residential and light commercial environments. It mounts easily through a plug-on design for straightforward installation.

Product Information

Standard Information

• Brand: Cutler-Hammer Manufacturing Co.
• Manufacturer: Eaton

Technical Specifications

• Type: Type BR
• Voltage: 240 Volt
• Amperage: 50 Amp
• Trip Type: Common Breaker, Thermal Magnetic, Long Time and Instantaneous
• Number of Poles: 3 Pole
• Interrupt Rating: 10 kAIC
• Temperature Rating: 40 degrees C
• Conductor Size: 14-4 AWG
