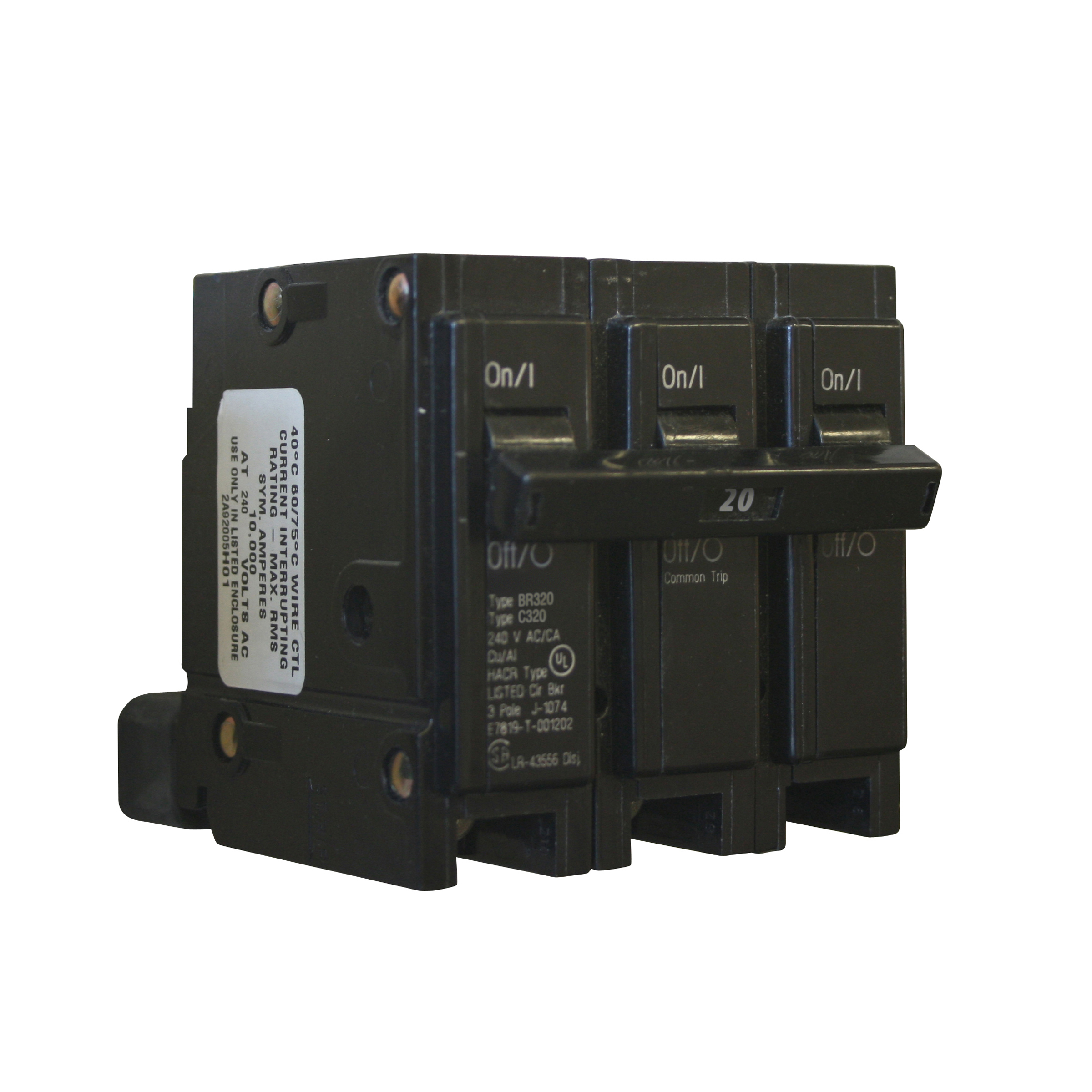

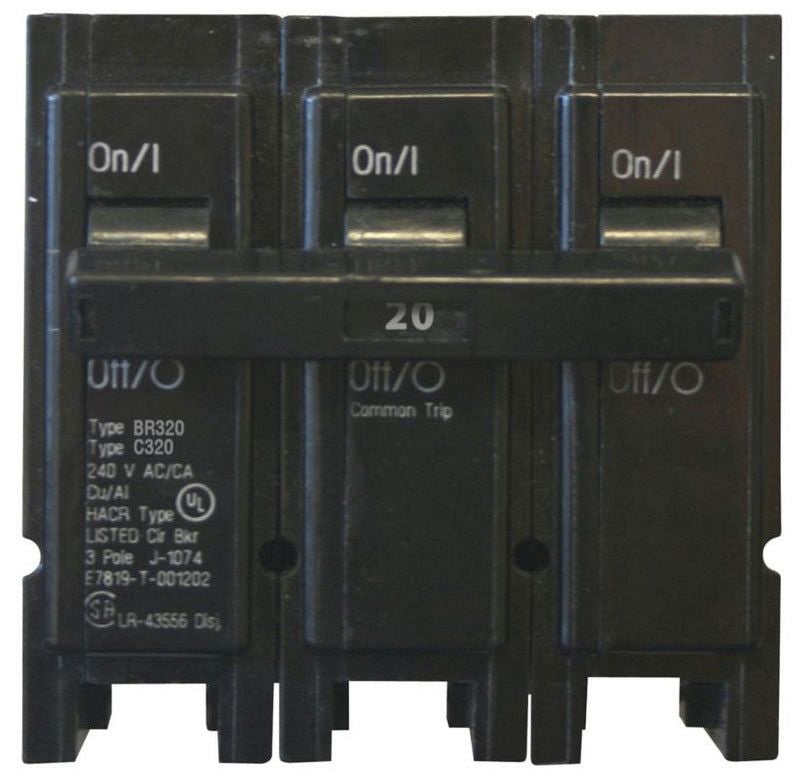

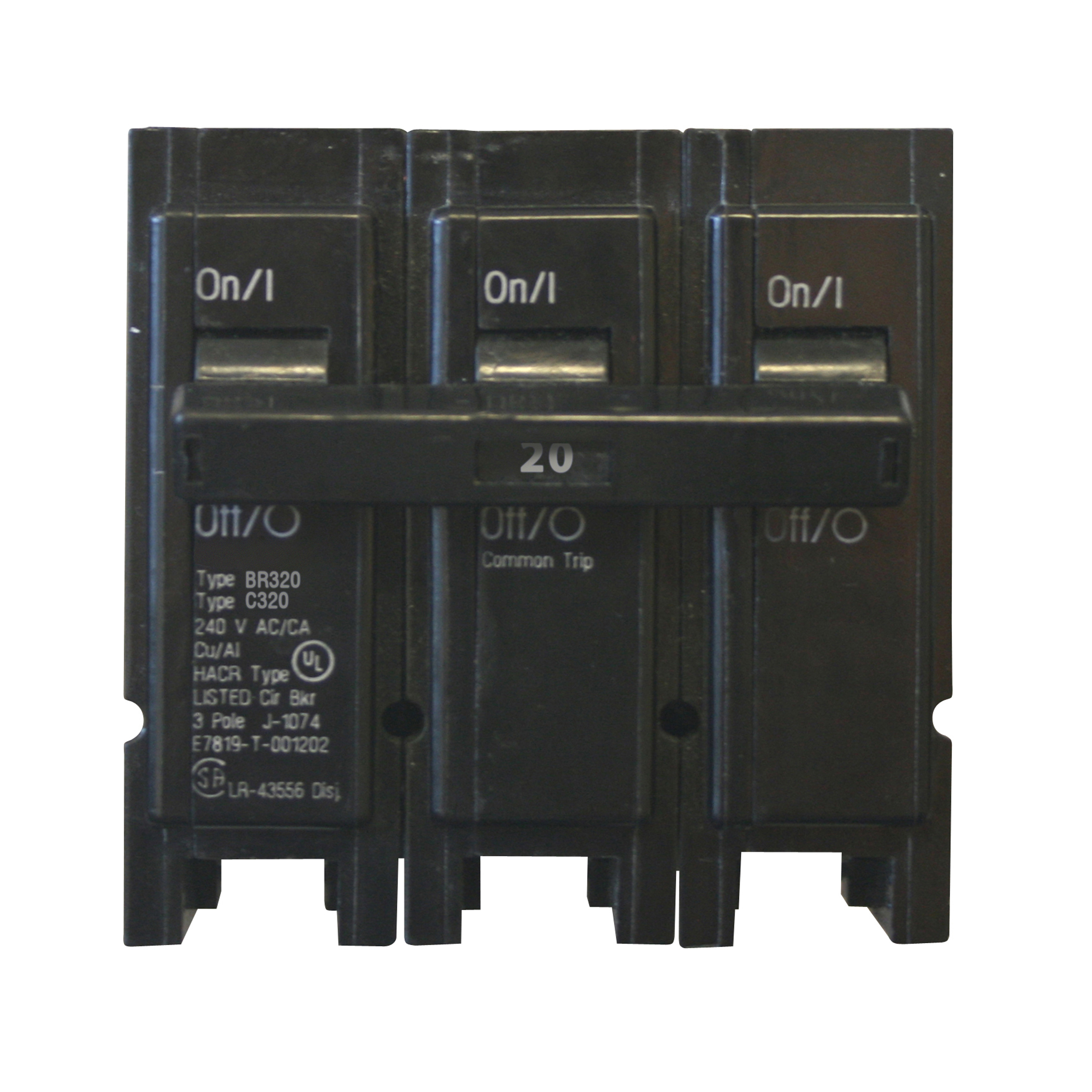

Cutler-Hammer BR320 Circuit Breaker 240V 20A 3 Poles

Product Description

The Cutler-Hammer BR320 is a plug-on circuit breaker designed for reliable electrical protection. This circuit breaker operates at a voltage rating of two hundred forty volts and features a thermal magnetic trip system. It is suitable for both residential and commercial electrical systems.

• Type: BR 1-Inch Plug-On Circuit Breaker
• Rated Amperage: Twenty Amps
• Interrupt Rating: Ten kAIC

Product Highlights

This circuit breaker is ideal for use in Type BR loadcenters and is compatible with wire sizes ranging from fourteen to four AWG copper or aluminum. It provides robust protection against overloads and short circuits.

Product Information

Standard Information

• Manufacturer: Cutler-Hammer
• Voltage Rating: 240V

Technical Specifications

• Amperage Rating: 20A
• Number Of Poles: Three-pole
• Mounting: Plug-on
• Wire Size: #14-4 AWG Cu/Al
• Used With: Type BR Loadcenters
• Trip Type: Common
• Interrupt Rating: 10 kAIC
• Main Circuit Breaker: BR
