Product Description

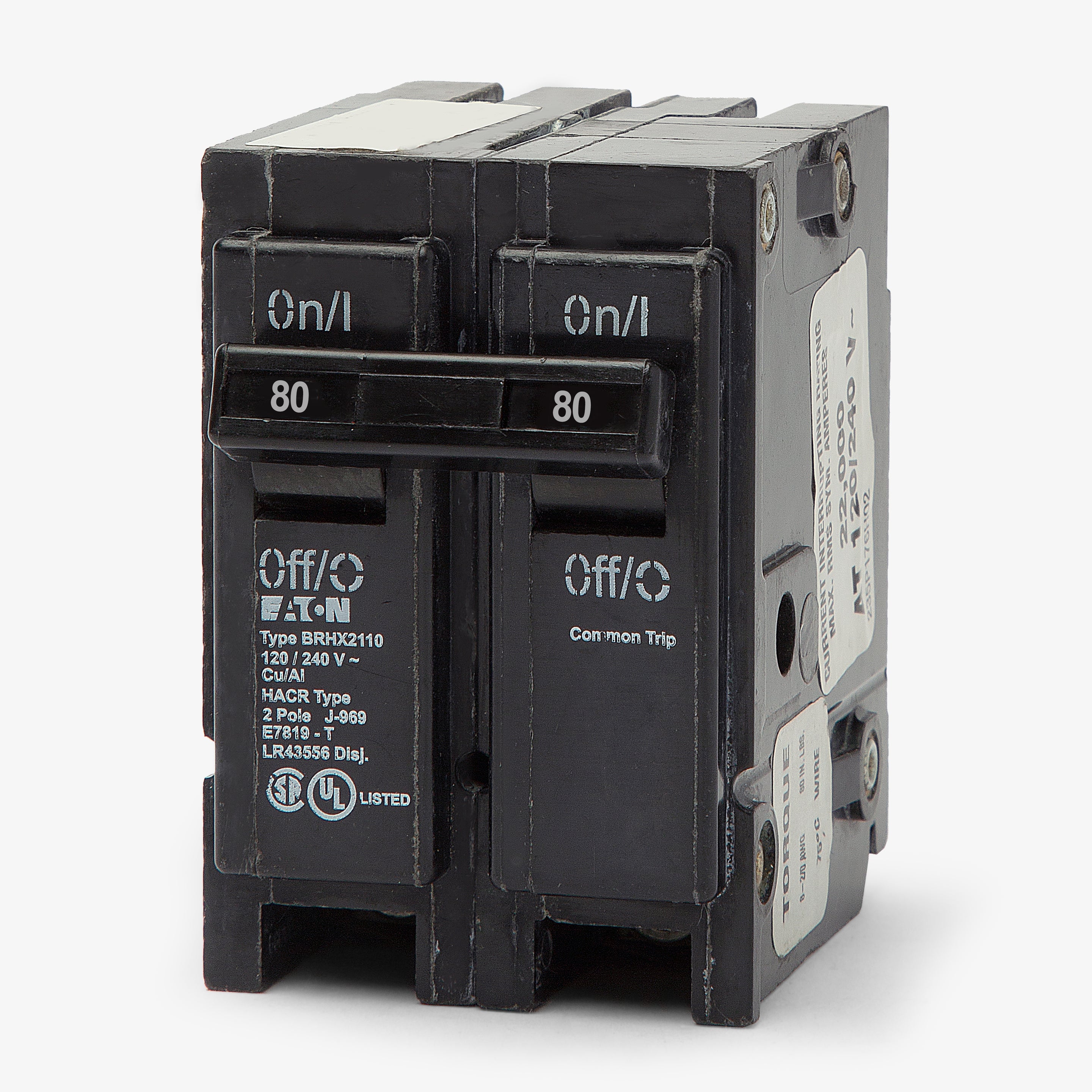

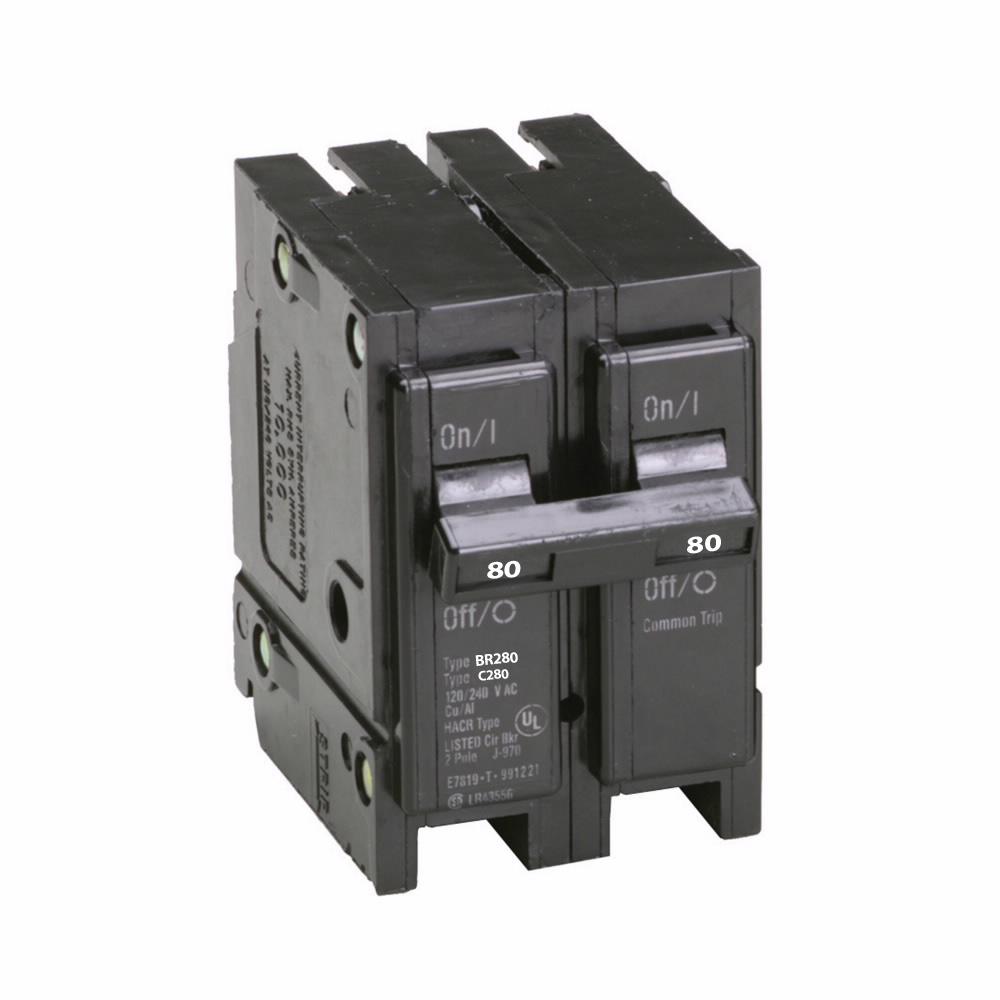

The Cutler & Hammer BR280 is a Type BR thermal magnetic circuit breaker used in load centers, panelboards, or similar devices. This 80A, 2-pole breaker is made for a wide range of applications. It delivers dependable thermal-magnetic protection for demanding circuits and features a plug-on design for secure installation.
- Plug-In replacement breaker
- Authentic Eaton Product
- CSA Approved
- UL Listed
Product Highlights
80A, 2-pole miniature circuit breaker with thermal-magnetic protection and plug-on design. It is HACR rated and replaces legacy C280 part number.
Product Information
Standard Information
-
Brand: CUTLER & HAMMER
-
Manufacturer Part Number: BR280
-
Country of Origin: China
Technical Specifications
-
MPN: BR280
-
Brand: CUTLER & HAMMER
-
Type: BR
-
Interrupting Rating: 10kA
-
Voltage: 120/240 V
-
Amperage: 80 AMP
-
Poles: 2
-
Connection: Plug-in
-
Phase: 1
-
Mounting Style: Panel
-
Maximum Amperage: 80A
-
Number of Poles: 2
-
Voltage Rating: 120/240 VAC
-
Series: Series BR
-
Commercial/Residential: Light Commercial/Residential
-
Amperage Rating: 80 A
-
Interrupt Rating: 10 kA
-
Trip Type: Common/Thermal-Magnetic
-
Actuator Type: Toggle Handle
-
Wire Size: 8 - 1/0 AWG Aluminum/Copper
-
Mounting Type: Plug-On
-
Temperature Rating: 60 to 75 deg C
-
AIC Rating: 10kA @ 120/240VAC
-
Terminal Type: Box Lugs
-
For Use With: Eaton Type BR Load Centers, Bryant, Westinghouse, Challenger Load Centers
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed Thermal, Fixed Magnetic
-
Wire Gauge: 8-1/0 AWG (Cu/Al)
-
Max Wire: 1/0 AWG
-
Min Wire: 8 AWG
-
Available Options: Padlock Attachment
-
Standards: Federal Specification W-C375, UL 489
-
Approval: CSA, UL
-
Temp Rating: 60C to 75C
-
Construction Features: HACR Rated, Common Trip
