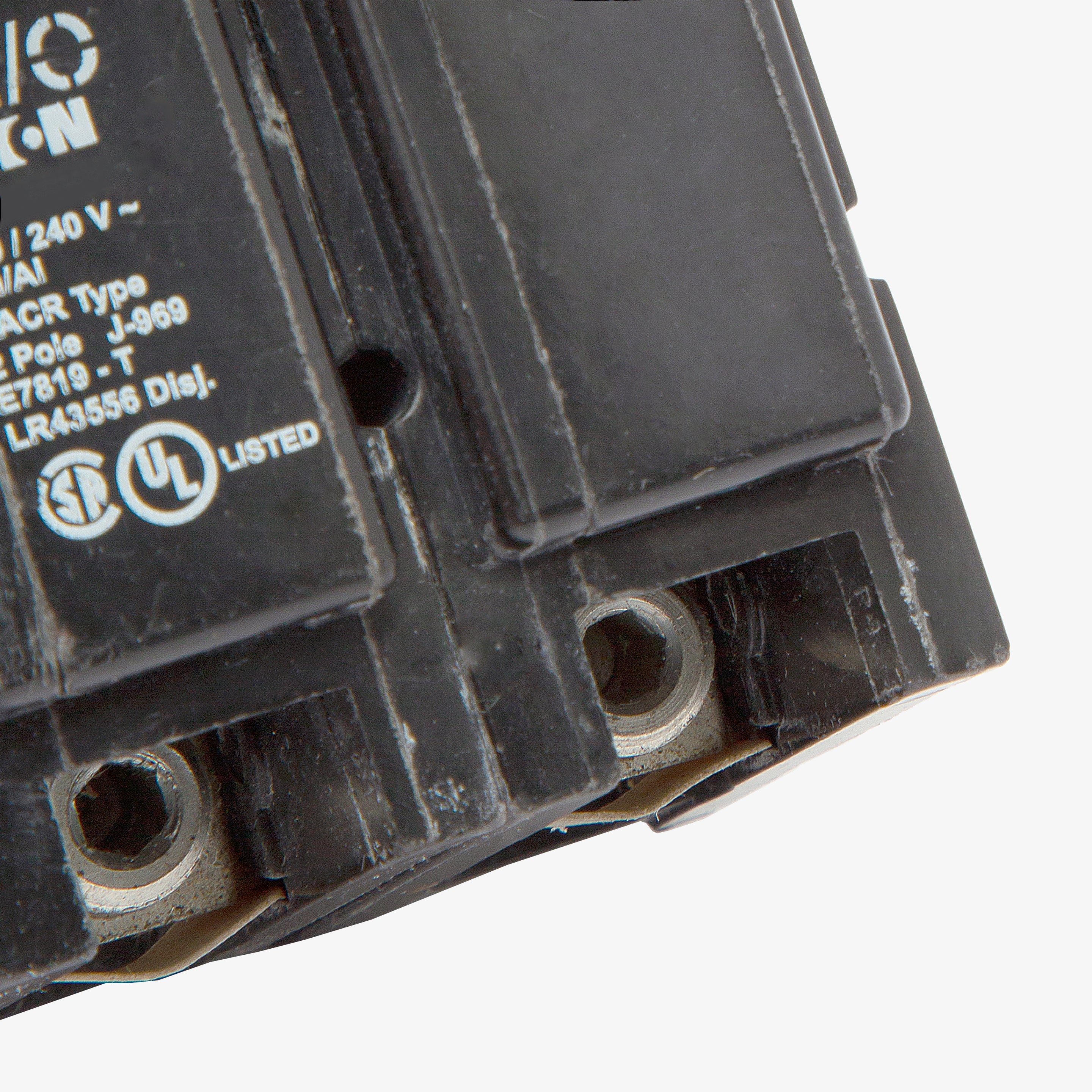

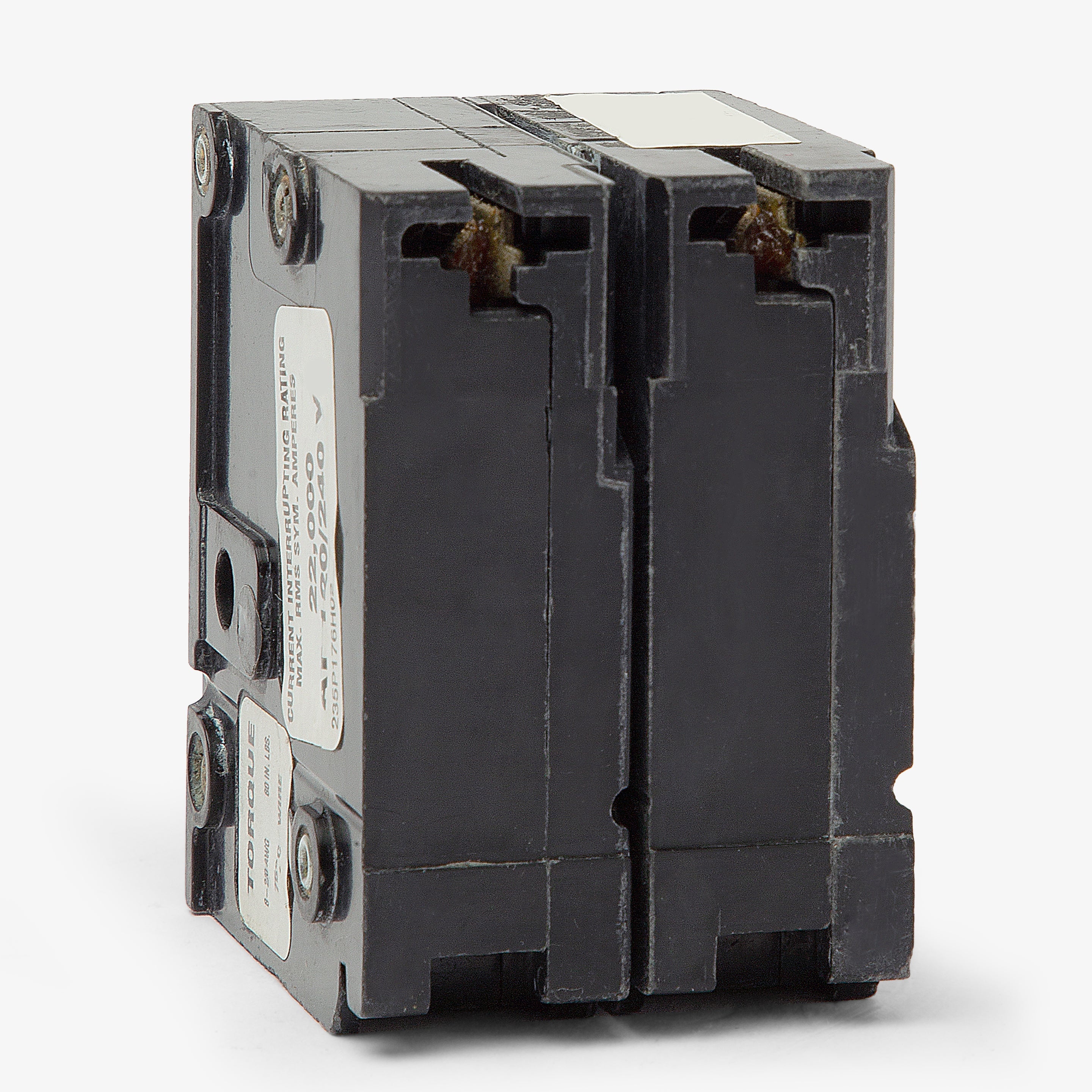

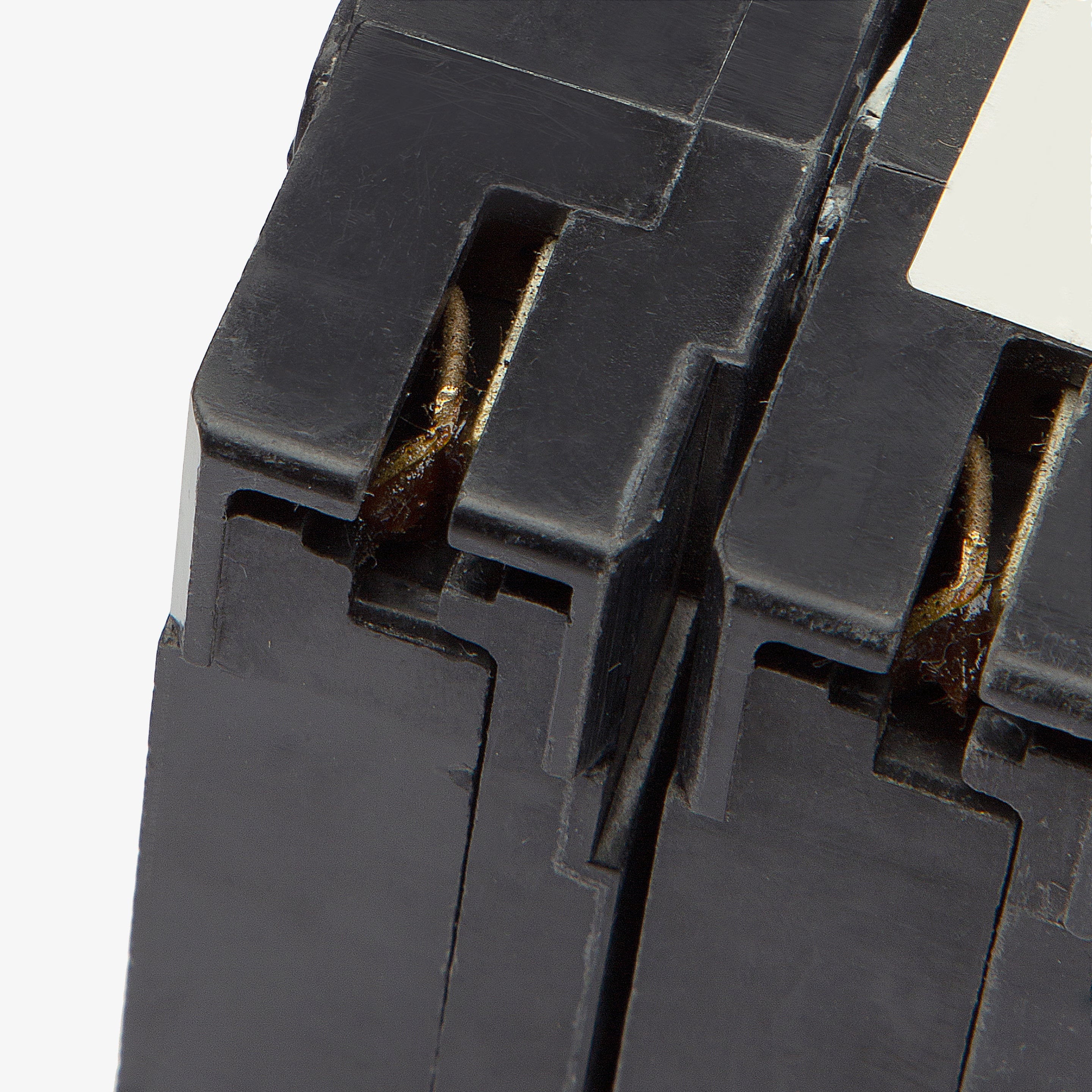

Cutler & Hammer BR235 Type BR Thermal Magnetic Circuit Breaker, 35A, 2-Pole

Product Description

The CUTLER & HAMMER BR235 is a type BR thermal magnetic circuit breaker used in load centers, panelboards, or similar devices. This two-pole, 35-amp miniature breaker installs into Type BR load centers, utilizing a standard plug-on mounting style with box lug terminals. Operating at 120/240VAC with a 10kA interrupting capacity.

• Thermal magnetic
• Common trip
• 2 pole
• Dependable overcurrent protection
• Installs into Type BR load centers

Product Highlights

The Cutler Hammer BR235 delivers dependable overcurrent protection for residential and commercial applications.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: BR235
• Country of Origin: United States

Technical Specifications

• Brand: Cutler & Hammer
• MPN: BR235
• Model: BR235
• Type: Circuit Breakers
• Poles: 2
• Amperage: 35A
• Voltage: 120/240VAC
• AIC Rating: 10kA @ 120/240VAC
• Mounting Style: Plug-On
• Terminal Type: Box Lugs
• For Use With: Type BR Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 14-4 AWG (Cu/Al)
• Max Wire: 4 AWG
• Min Wire: 14 AWG
• Available Options: Padlock Attachment
• Standards: Federal Specification W-C375, UL 489
• Approval: CSA, UL
• Temp Rating: 40C
• Construction Features: Common Trip, HACR Rated
• Maximum Amperage: 35 A
• Country of Origin: United States
• Applications: For Residential and Light Commercial
• Circuit Breaker Type: BR
• Conductor Size: 14-4 AWG
• Interrupt Rating: 10 kAIC
• Number of Poles: 2 Pole
• Temperature Rating: 40 degrees C
• Trip Type: Common Breaker, Thermal Magnetic, Long Time and Instantaneous
• Wire Size: 14-4 AWG
• Used With: Type BR Loadcenters
