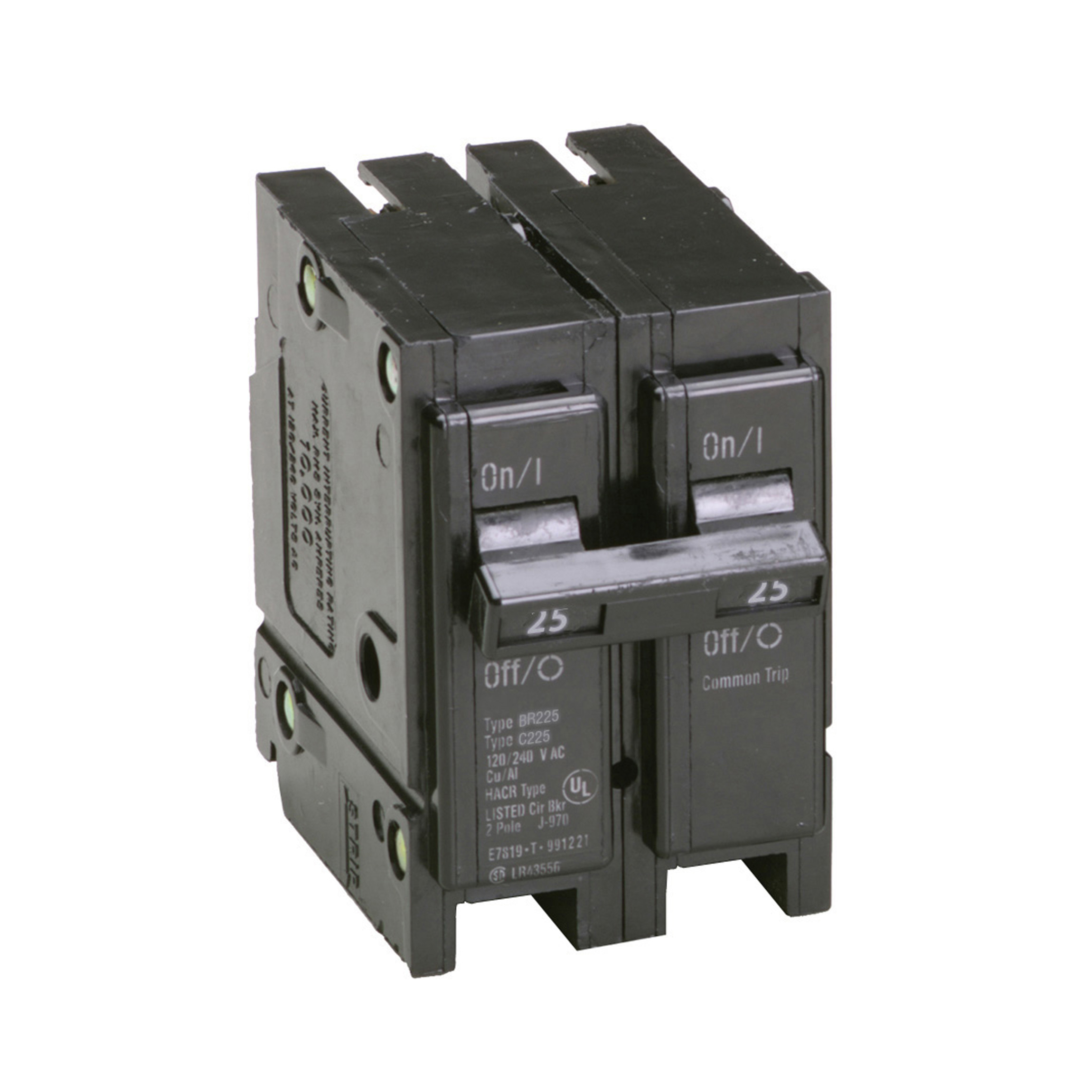

Cutler-Hammer BR225 Eaton 2P-120/240V-25A CB

Product Description

Cutler-Hammer BR225 is a plug-on circuit breaker designed for use in electrical distribution systems. This thermal magnetic circuit breaker operates at a voltage rating of 120 to 240 volts and an amperage rating of twenty-five amps. It is a two-pole breaker suitable for Type BR loadcenters.

• Type BR 1-Inch Plug-On Circuit Breaker
• Interrupt Rating of 10 kAIC
• Compatible with wire sizes #14 to #4 AWG Cu/Al

Product Highlights

The BR225 model is compact and efficient for circuit protection, meeting essential electrical standards.

Product Information

Standard Information

• Manufacturer: Cutler-Hammer
• Type: Type BR Circuit Breaker

Technical Specifications

• Amperage Rating: 25A
• Voltage Rating: 120/240V
• Number of Poles: Two-pole
• Interrupt Rating: 10 kAIC
• Mounting: Plug-on
• Weight: 0.5 LB
• Height: 3 IN
• Length: 3 IN
• Width: 2 IN
• Wire Size: #14-4 AWG Cu/Al
• Trip Type: Common
• Used With: Type BR Loadcenters
• Quantity: Q28
