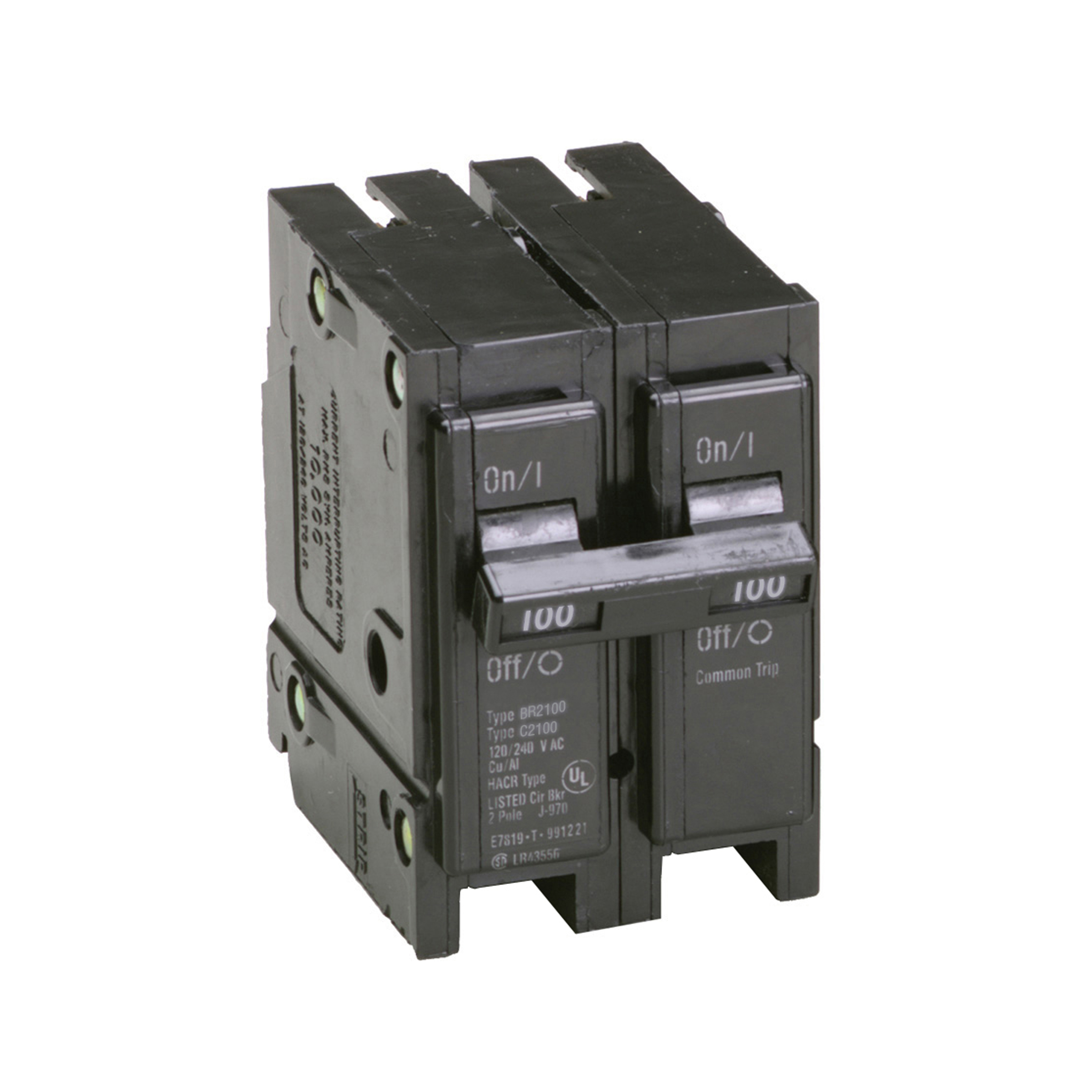

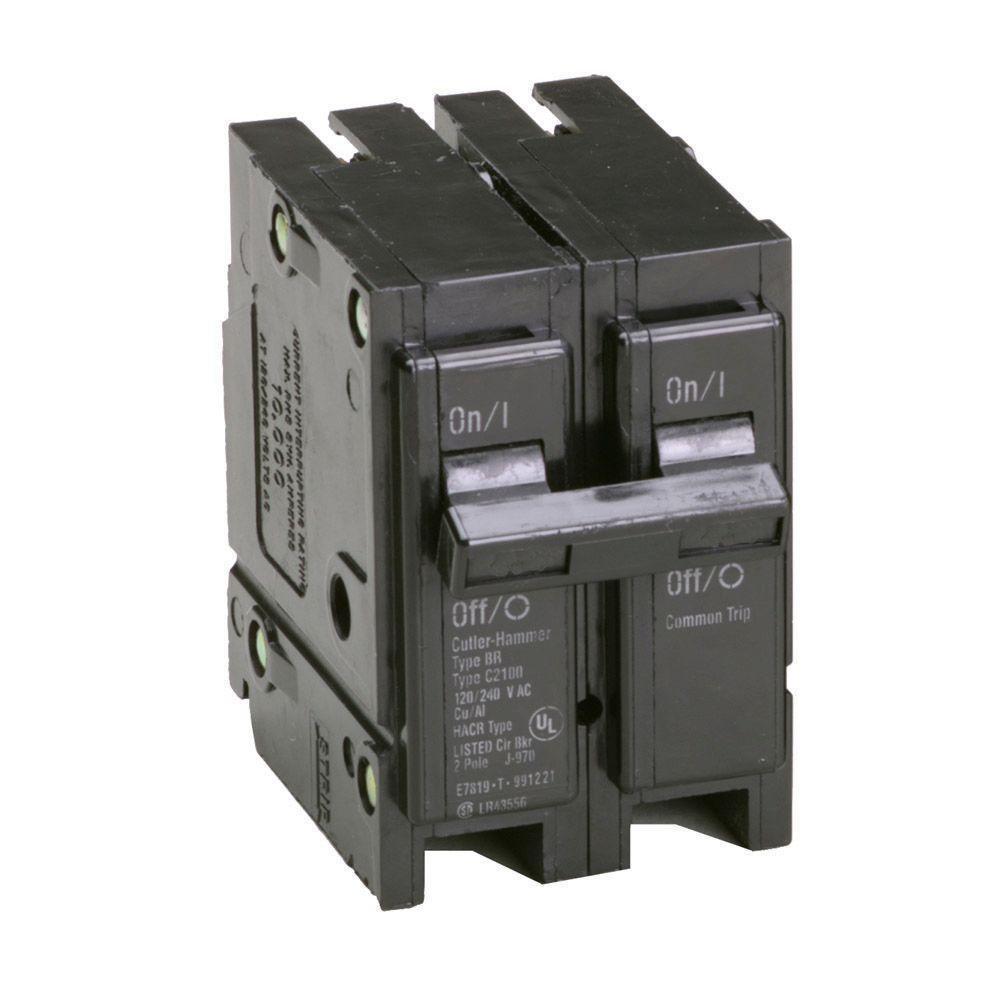

Cutler-Hammer BR2100 100A 2-Pole Circuit Breaker

Product Description

The Cutler-Hammer BR2100 is a plug-on circuit breaker designed for use in electrical systems. This breaker features a 100A capacity and is a two-pole configuration, making it suitable for dual voltage applications of one hundred twenty or two hundred forty volts.

• Compatible with Westinghouse, Challenger, and Bryant load centers
• Rated for 10 kAIC interrupt capacity
• Utilizes #4-1/0 AWG copper or aluminum wire

Product Highlights

This circuit breaker is designed for reliable performance and safety in residential and commercial electrical systems. It is a crucial component for protecting circuits from overloads and faults.

Product Information

Standard Information

• Brand: Cutler-Hammer
• MPN: BR2100

Technical Specifications

• Type: Type BR 1-Inch Plug-On Circuit Breaker
• Amperage Rating: 100A
• Interrupt Rating: 10 kAIC
• Number Of Poles: Two-pole
• Voltage Rating: 120/240V
• Mounting: Plug-on
• Main Circuit Breaker: BR
• Trip Type: Common
• Wire Size: #4-1/0 AWG Cu/Al
• Dimensions: Height: 3 inches, Length: 3 inches, Width: 2 inches
