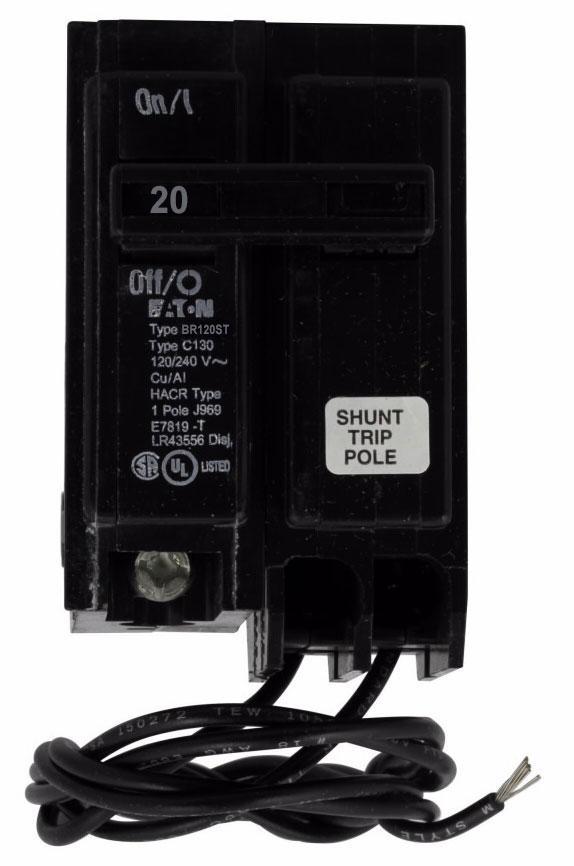

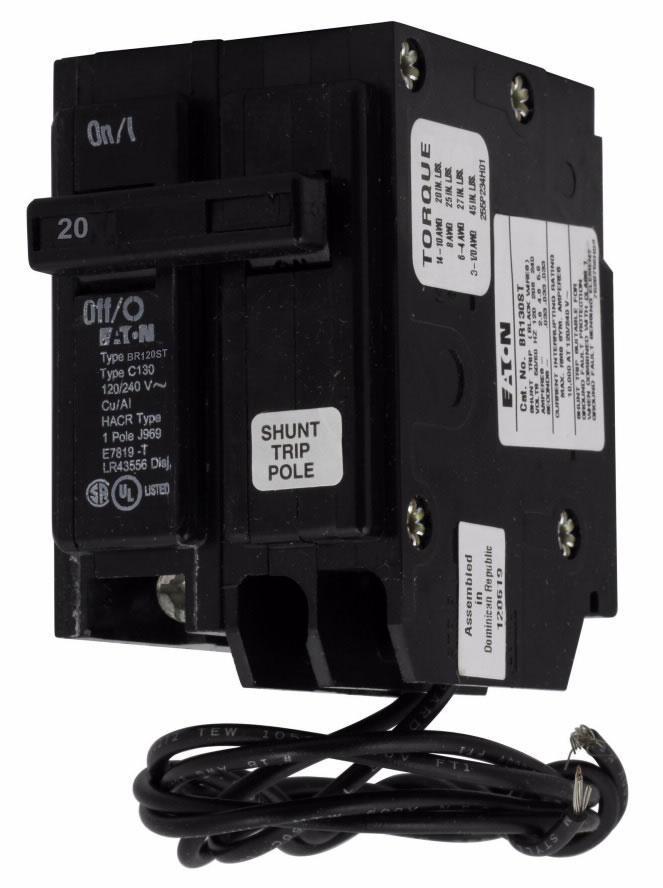

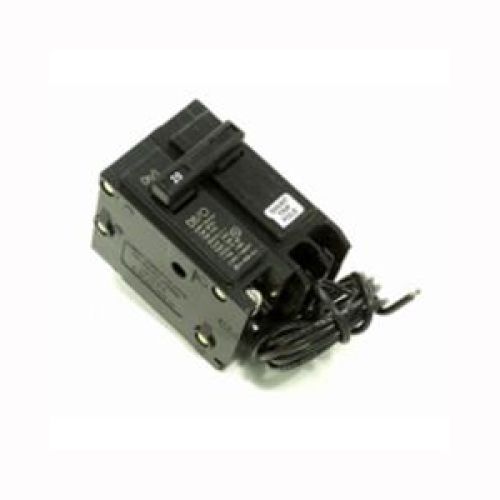

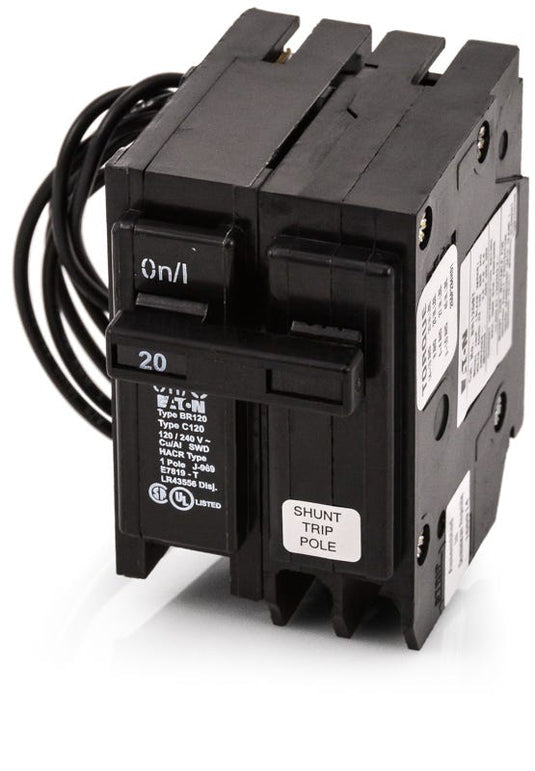

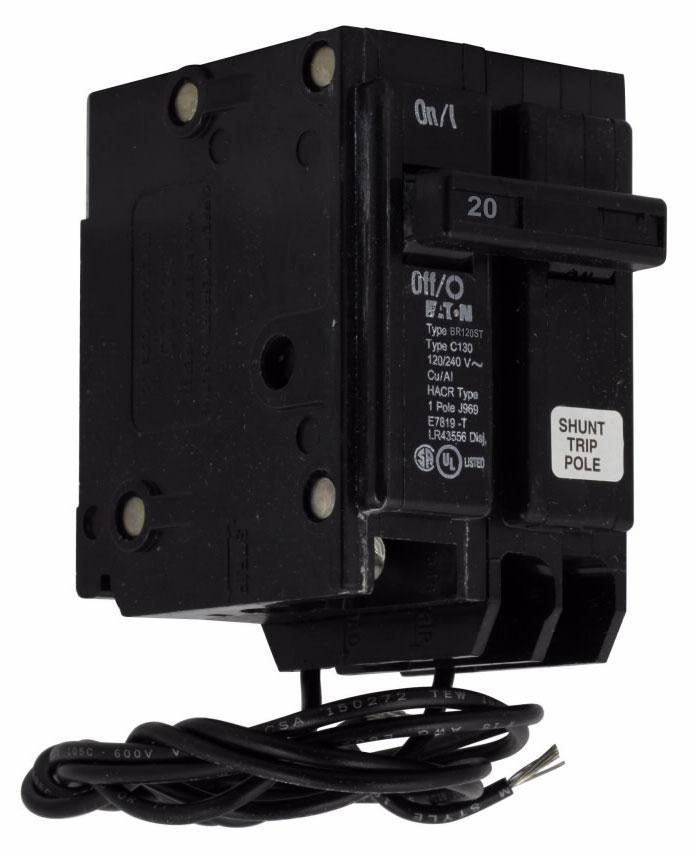

Cutler & Hammer BR120ST Type BR Thermal Magnetic Circuit Breaker with Shunt Trip 20A 120/240 VAC Single-Pole

Product Description

The CUTLER & HAMMER BR120ST is a Type BR thermal magnetic circuit breaker with a shunt trip, designed for residential load centers, panelboards, and similar electrical devices. This single-pole, 20A breaker operates at 120/240 VAC and is suitable for a wide range of applications, including those requiring arc fault circuit interrupters (AFCI) and ground fault circuit interrupters (GFCI). It features a 1-inch plug-on design and a 10 kAIC interrupting rating.

• Residential BR circuit breaker for load centers and panelboards.
• Includes arc fault circuit interrupters (AFCI) and ground fault circuit interrupters (GFCI) capabilities.
• Single-pole, 20A, 120/240 VAC operation with shunt trip.

Product Highlights

Thermal magnetic circuit breaker with shunt trip for residential and commercial applications.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: BR120ST
• Country of Origin: United States

Technical Specifications

• MPN: BR120ST
• Brand: CUTLER & HAMMER
• Breaker Type: BR Thermal Magnetic Circuit Breaker with Shunt Trip
• Amperage: 20A
• Voltage: 120/240 VAC
• Poles: Single-Pole
• Mounting Type: Plug-In
• Interrupting Rating: 10 kAIC @ 120/240VAC
• Shunt Trip Voltage: 120V
• Phase: 1
• Trip Function: Long Time and Instantaneous
• Wire Size: 14 to 4 AWG (ALUMINUM/COPPER)
• Certifications: UL 489, CSA Certified, Federal Specifications Classification W-C375
• Application: Load Center
• HACR Rated: Yes
• Family: BR Series
• Terminal Type: Box Lugs
• Trip Function Code: LI
• Trip Adjustability: Fixed
• Available Options: Padlock Attachment, Handle Lock-Off
• Temp Rating: 40C
