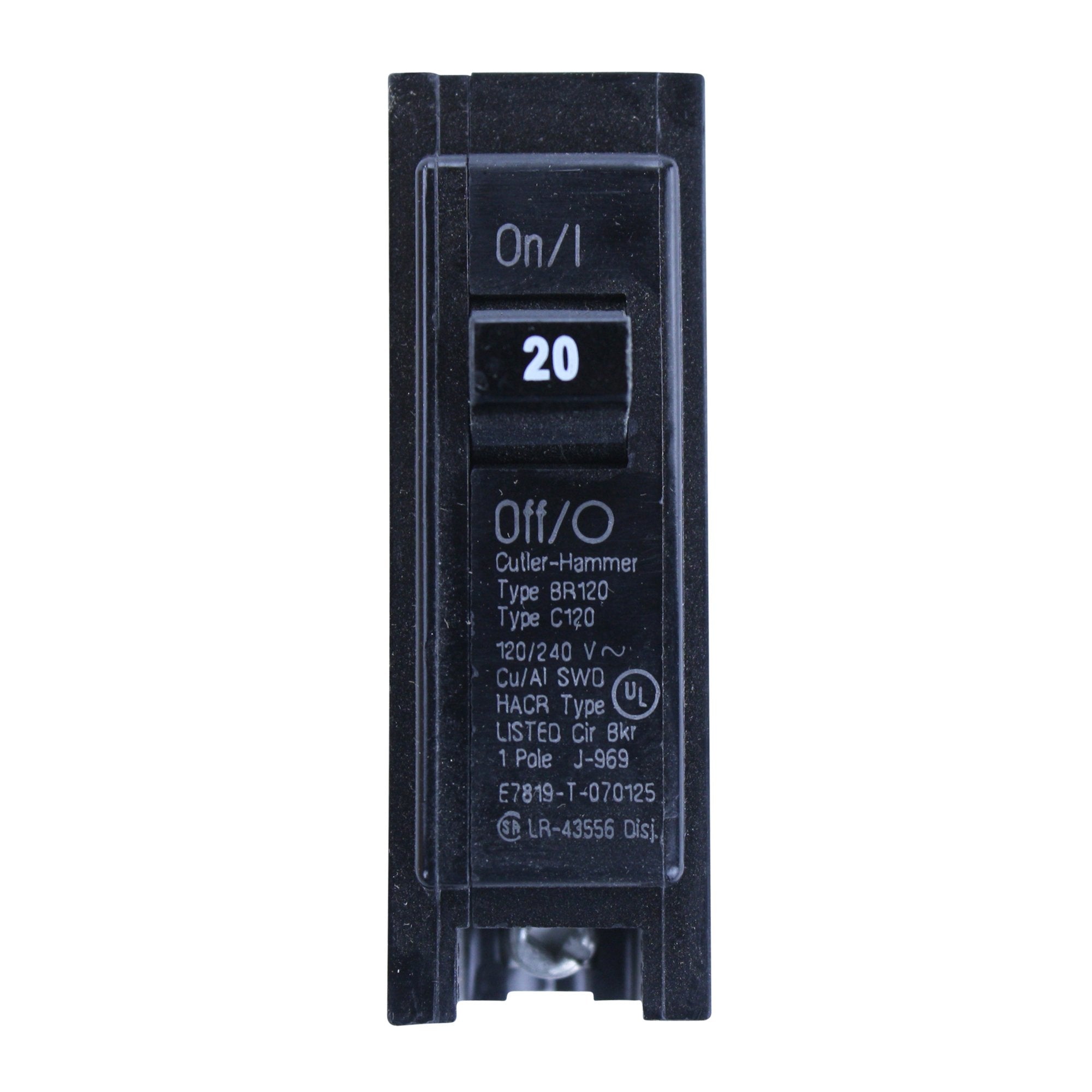

Cutler & Hammer BR120 Circuit Breaker 20 A

Product Description

The CUTLER & HAMMER BR120 is a type BR circuit breaker used in load centers, panelboards and similar devices. This 120/240 VAC, 20 A, single-pole breaker features a thermal/magnetic trip and is suitable for a wide range of applications. It is designed for plug-on mounting and accepts 14 to 4 AWG wire.

• Residential BR circuit breakers
• Thermal/Magnetic Trip
• Plug-On Mounting

Product Highlights

Single-pole, 20A circuit breaker for residential load centers and panelboards. Provides overload and short-circuit protection.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: BR120

Technical Specifications

• Type: BR
• Voltage: 120/240 VAC
• Amperage: 20 A
• Interrupt Capacity: 10 kA
• Trip Type: Thermal/Magnetic
• Poles: 1 Pole
• Phase: 1 ph
• Wire Size: 14 to 4 AWG
• Enclosure: NEMA 1/4X/3R
• Mounting: Plug-On
• MPN: BR120
• Brand: CUTLER & HAMMER
• Manufacturer: Eaton Corporation
• Product Type: CIRCUIT_BREAKER
• UPC: 378482854887
• Product Length/Depth: 2.5 in
• Product Height: 3 in
• Product Width: 1 in
• Compliances: Federal Specifications Classification W-C375
• Certifications: UL 489
• Used with: Type BR Loadcenters
• Voltage rating: 120/240 V
• Circuit breaker type: BR
• Interrupt rating: 10 kAIC
• Number of poles: Single-pole
• Actuator Type: Quick-Make, Quick-Break
• Current Rating: 20 A
• Operating Frequency: 50/60 Hz
• Operating Temperature: 40 deg C
• Number of Phases: 1
• Connection Type: Plug-On Clip
• Material: Glass Polyester
• Series: Series BR
• Commercial/Residential: Residential
