Cutler & Hammer BQ2402120 BR Thermal Magnetic Circuit Breaker (2) Single-Pole 20A, (1) Two-Pole 40A

Product Description

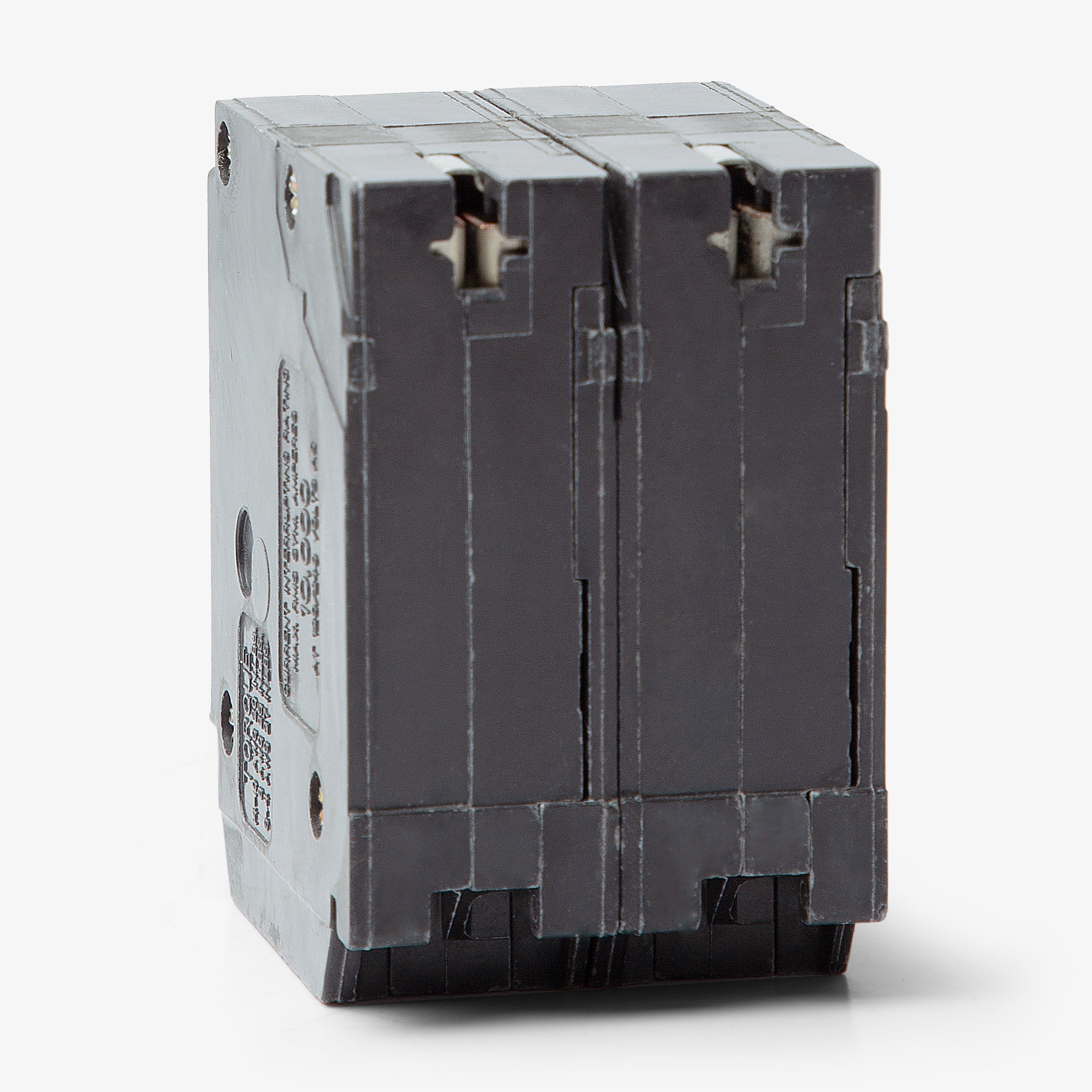

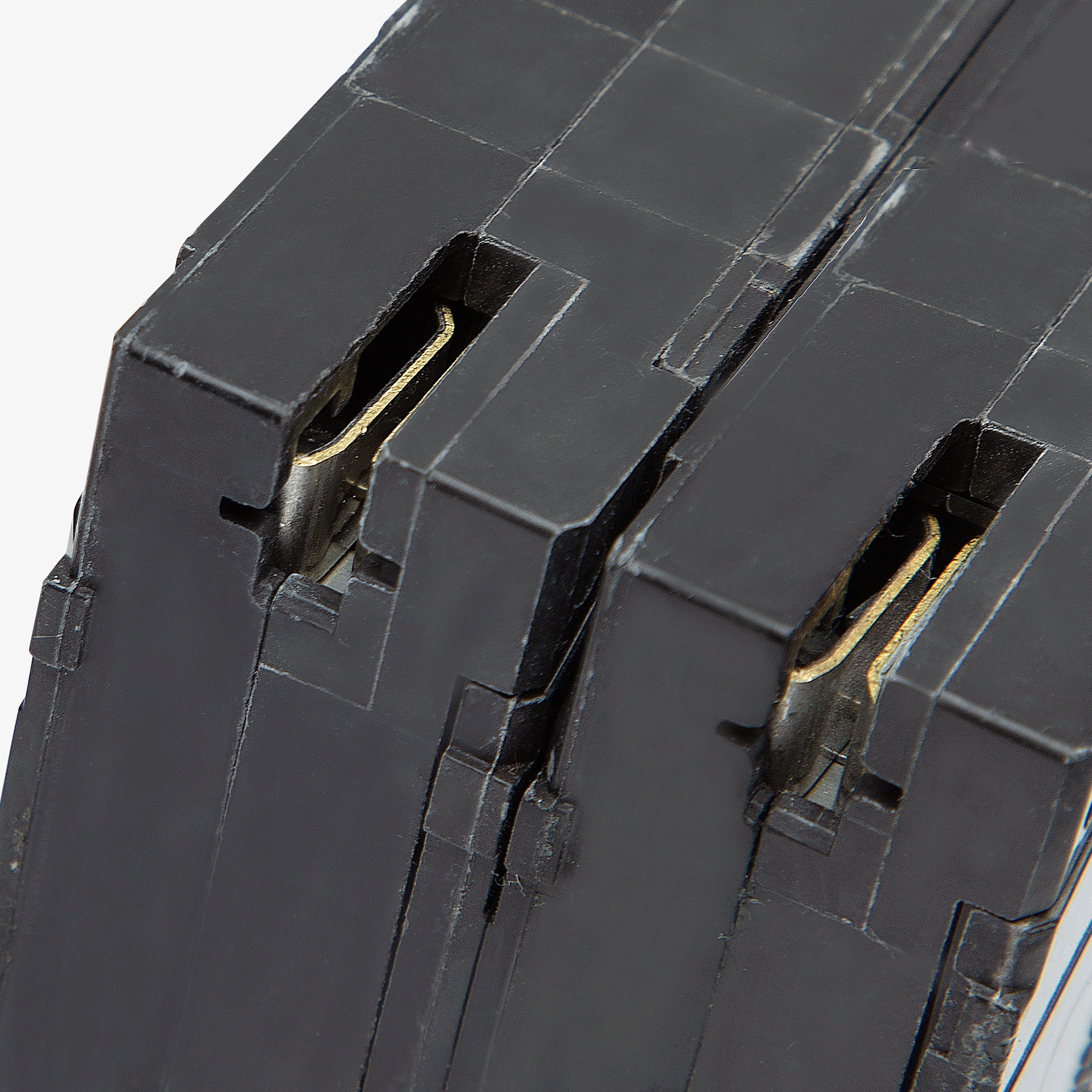

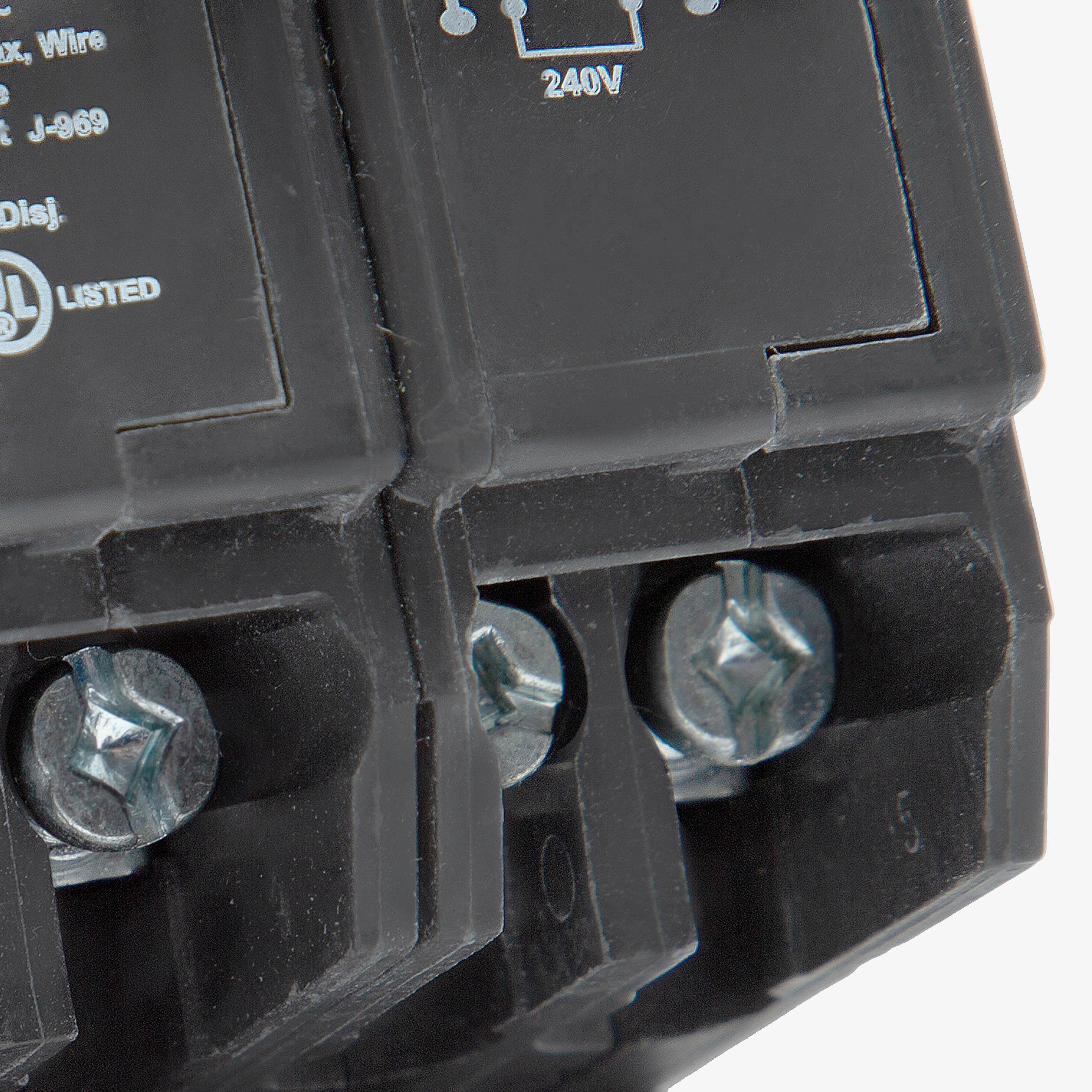

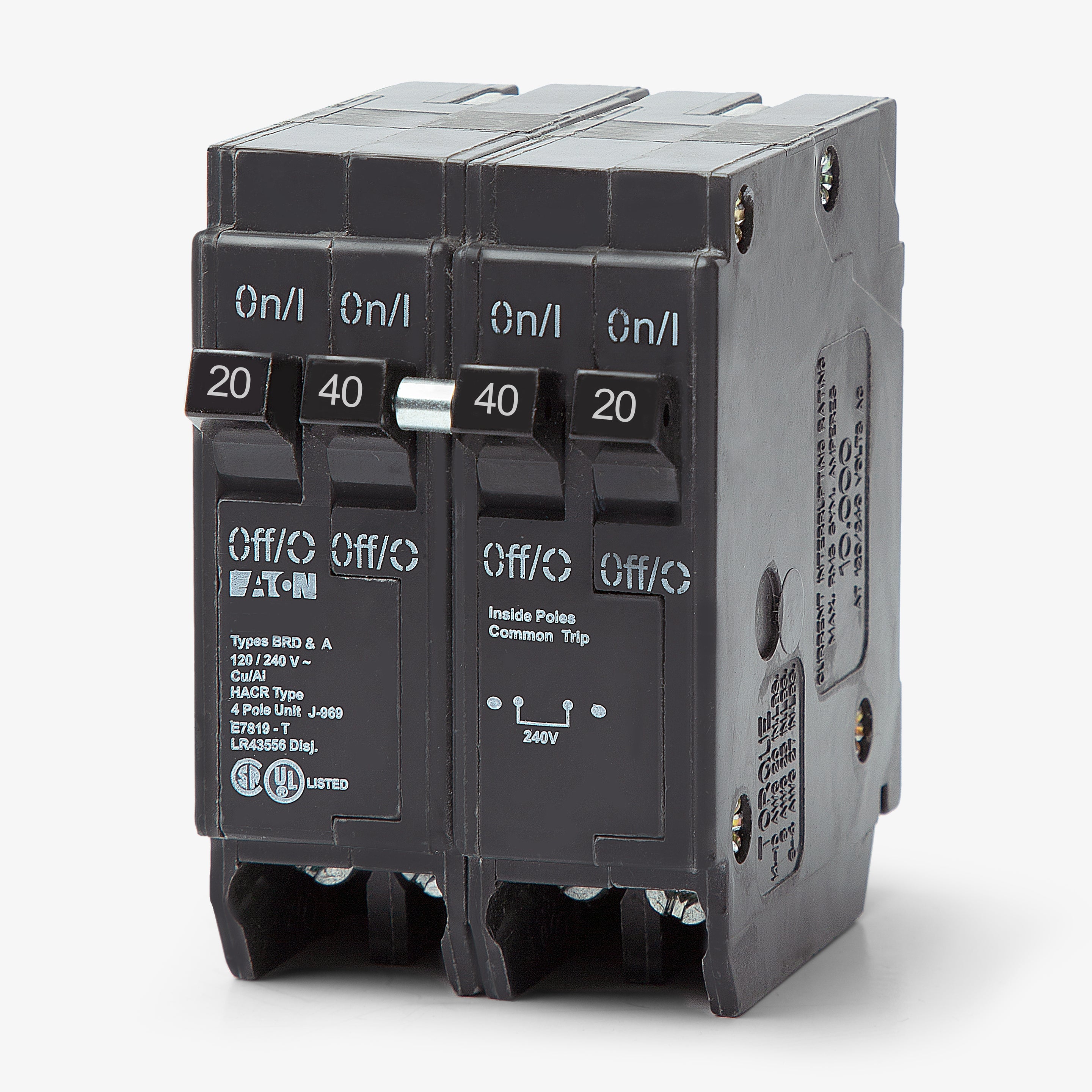

The CUTLER & HAMMER BQ2402120 BR thermal magnetic circuit breaker is a Type BQ 1-Inch CTL plug-on circuit breaker. It includes a rejection tab feature and is suitable for use with Type BR Loadcenters. It features (2) Single-Pole 20A, (1) Two-Pole 40A, and 10 kAIC. It is a four-pole circuit breaker.

• Includes rejection tab feature
• Type BQ 1-Inch CTL plug-on circuit breaker
• High-density circuit protection

Product Highlights

This quadplex breaker combines two 20A single-pole circuits and one 40A two-pole circuit into a single device. It provides reliable thermal-magnetic trip functions with a 10 kAIC interrupt rating at 120/240V.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: BQ2402120
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton BR thermal magnetic circuit breaker
• Catalog Number: BQ2402120
• UPC: 786676371650
• Product Length/Depth: 3 in
• Product Height: 3 in
• Product Width: 2 in
• Compliances: Federal Specifications Classification W-C375
• Certifications: UL 489
• Catalog Notes: All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated.
• Product Type: Thermal magnetic circuit breakers
• Used with: Type BR Loadcenters
• Amperage Rating: 20A (Outer Pole), 40A (Center Pole)
• Voltage rating: 120/240V at 40A, 120V at 20A
• Trip Type: T194
• Circuit breaker type: BQ
• Mounting Method: Plug-on
• Interrupt rating: 10 kAIC
• Main circuit breaker: BQ
• Wire size: #14-4 AWG Cu/Al
• Number of poles: Four-pole
• Type: Type BQ 1-Inch CTL plug-on circuit breaker
• Special features: Includes rejection tab feature
• Series: BQ
• Amperage: 20/40A
• Voltage: 120/240VAC
• Poles: 4
• Phase: 1
• AIC Rating: 10kA @ 120/240VAC
• Special Classification: Quadplex
• Mounting Style: Plug-On
• Terminal Type: Box Lugs
• For Use With: Type BR Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 14-4 AWG
• Max Wire: 4 AWG
• Min Wire: 14 AWG
• Available Options: Padlock Attachment
• Accessories: Rejection Tab
• Standards: CSA C22.2 No. 5, Federal Specification W-C375, UL 489
• Approval: CSA, UL
• Temp Rating: 40C
• Applications: For Heating, Air Conditioning, and Refrigeration (HACR)
• No. Of Poles: 4
• Length: 3 inch
• Width: 2 inch
• Height: 3 inch
• Wire Size Range: 14 to 4AWG Cu/Al
• Operating Temperature Range: 60 to 75 Deg C
• Standard: Meet UL 489, CSA, NEMA standards, Federal Spec Classification W-C 375 b/GEN.
• Model Number: BQ2402120
• Manufacturer: Cutler Hammer
• Group: Circuit Breakers
• Connection: Feed-Thru
• Protection: Thermal Magnetic
• Function: LI
• Classification: Molded Case Circuit Breakers
• Category: Circuit Breaker
