Product Description

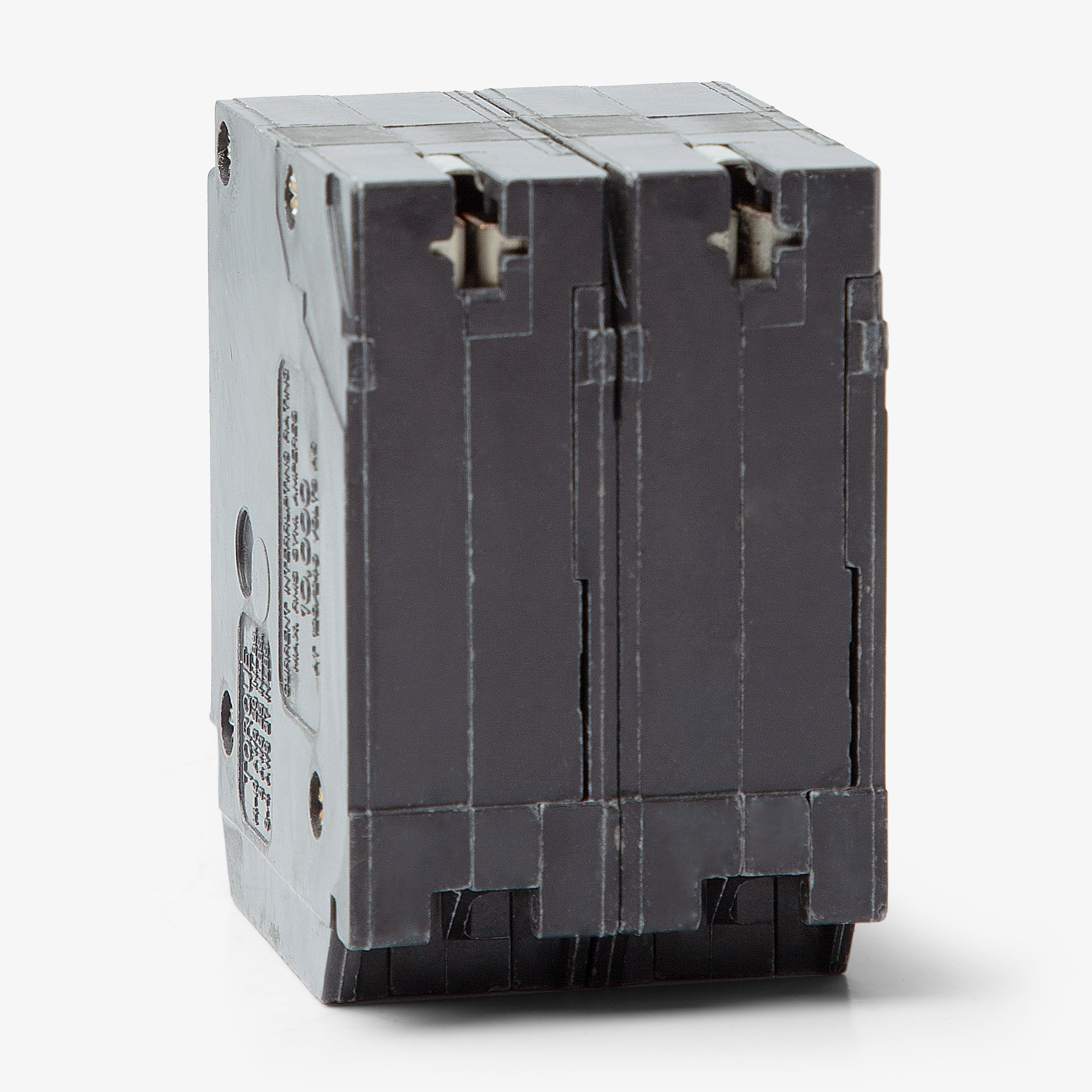

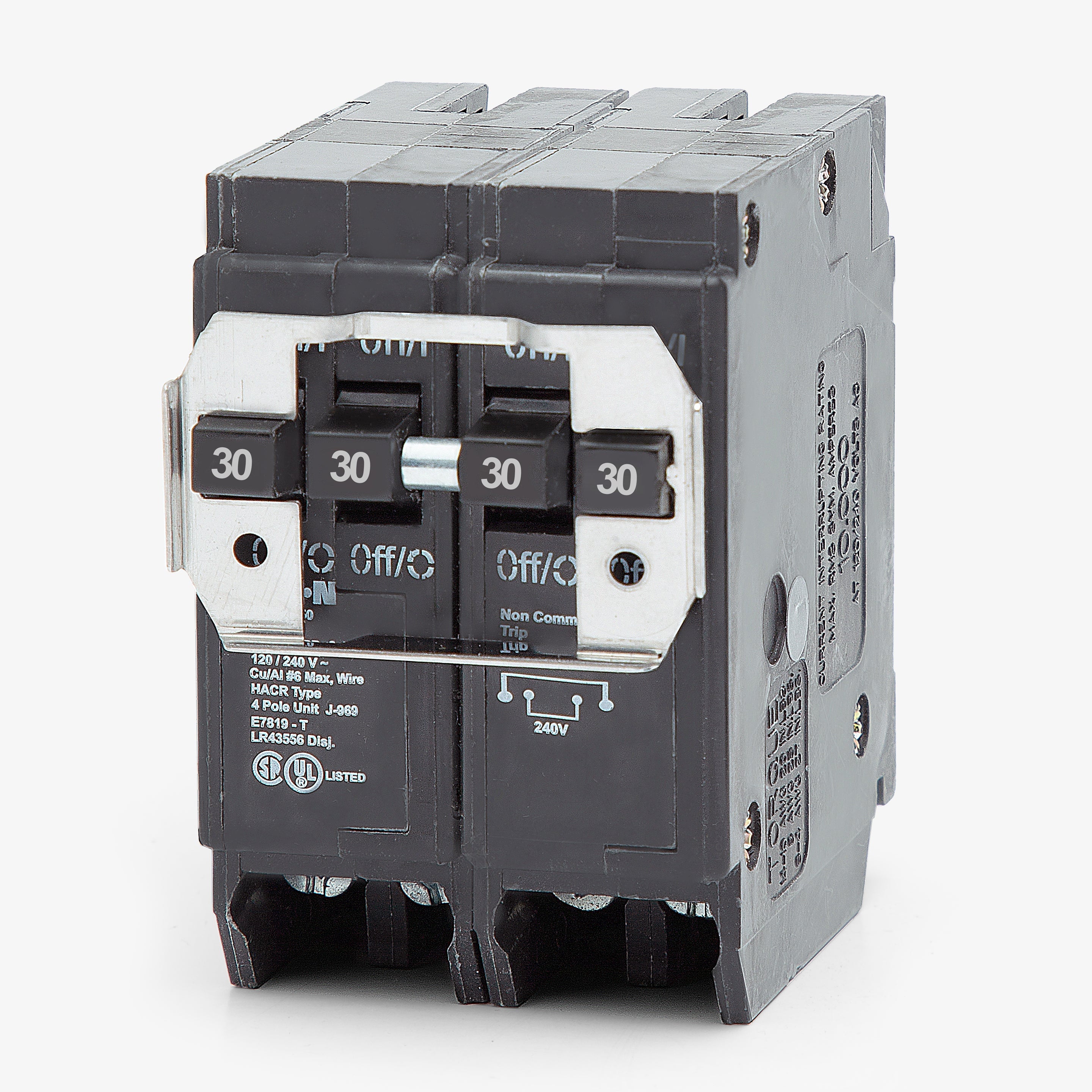

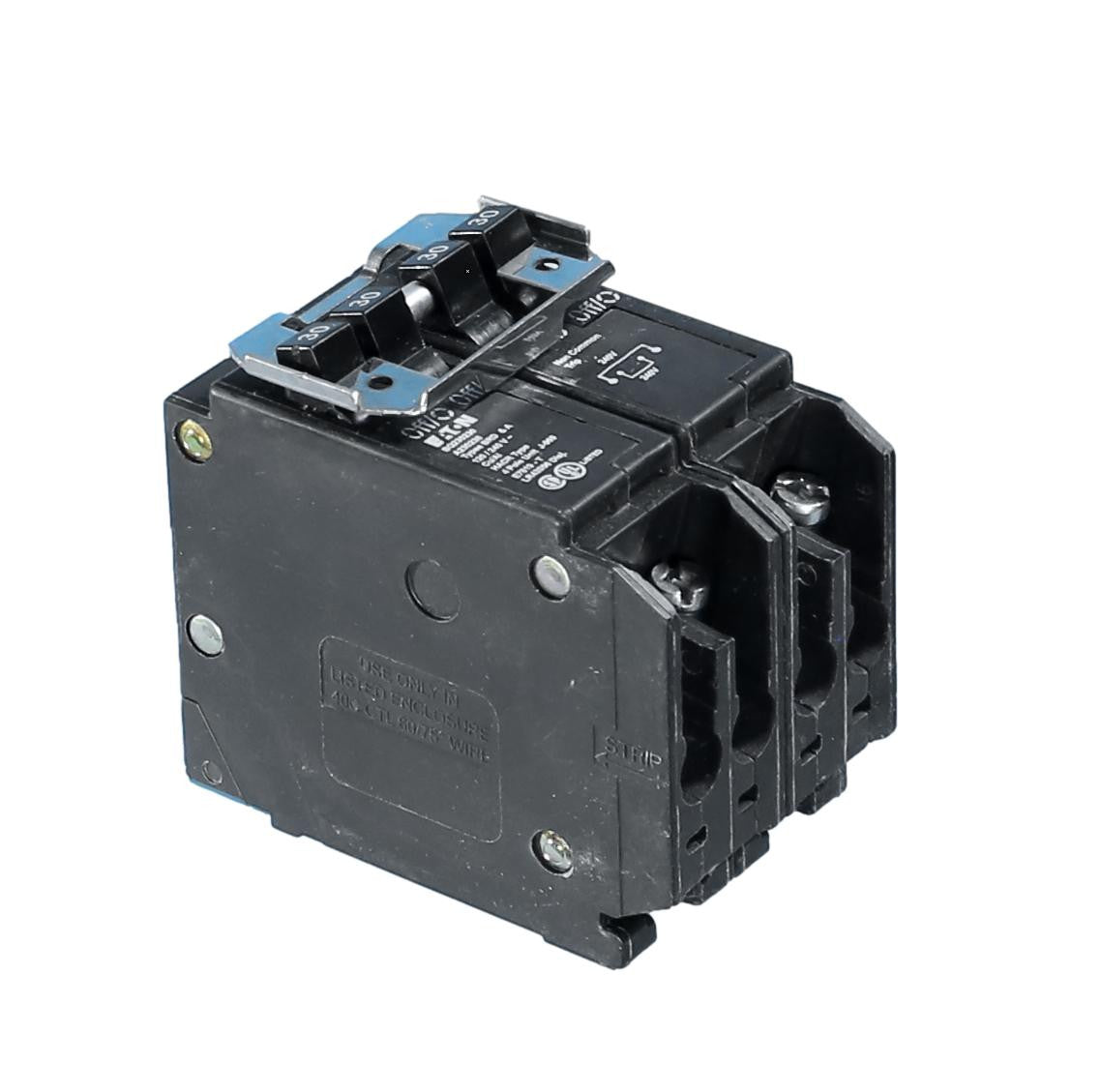

The Cutler-Hammer BQ230230 2-pole tandem circuit breaker is rated at 120/240 volts and 30 amps. It is for use with all type BD duplex and BQ quadplex listed for HACR applications. Ideal for expanding residential electrical systems and space-constrained applications. The thermal-magnetic unit features a 10 kAIC rating and independent trip mechanisms.
- 2-pole tandem circuit breaker
- Rated at 120/240 volts
- 30 amps
Product Highlights
The Cutler-Hammer BQ230230 circuit breaker is for use with all type BD duplex and BQ quadplex listed for HACR applications.
Product Information
Standard Information
-
Brand: CUTLER & HAMMER
-
Manufacturer Part Number: BQ230230
-
Country of Origin: Mexico
Technical Specifications
-
Brand: CUTLER & HAMMER
-
MPN: BQ230230
-
Type: BQ
-
Poles: 2
-
Voltage: 120/240 vac
-
Amperage: 30 ampere
-
Interrupting Rating: 10 kiloampere
-
Wire Size: 14 to 4 awg (aluminum/copper)
-
Mounting: Plug on
-
Approval: UL 489
-
Series: BQ
-
Amperage Rating: (2) Two-Pole 30A
-
Voltage rating: 120/240 V
-
Circuit Breaker Type: Quad
-
Voltage (volts): 120/240
-
AIC Rating: 10kA @ 120/240VAC
-
Special Classification: Quadplex
-

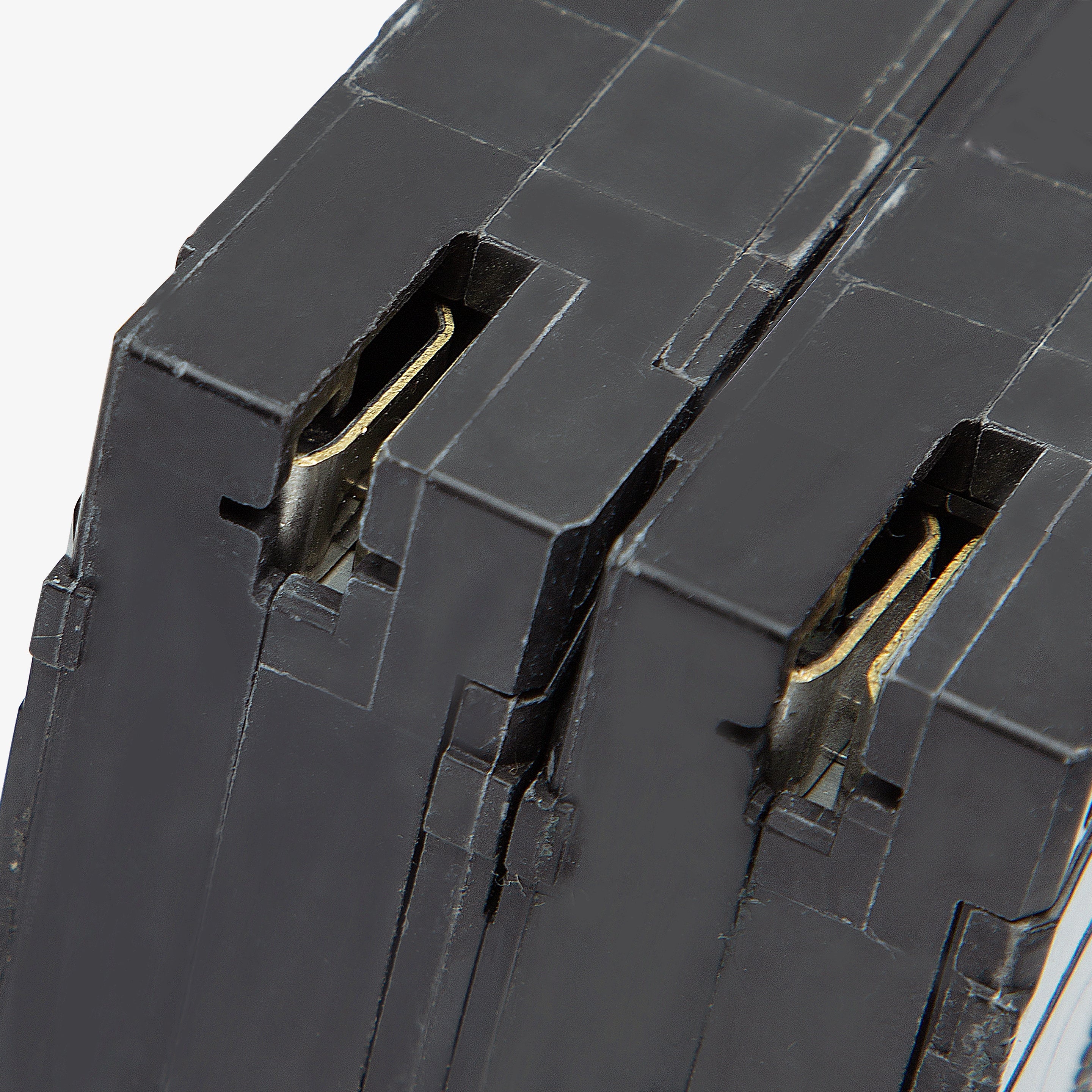

Mounting Style: Plug-On
-

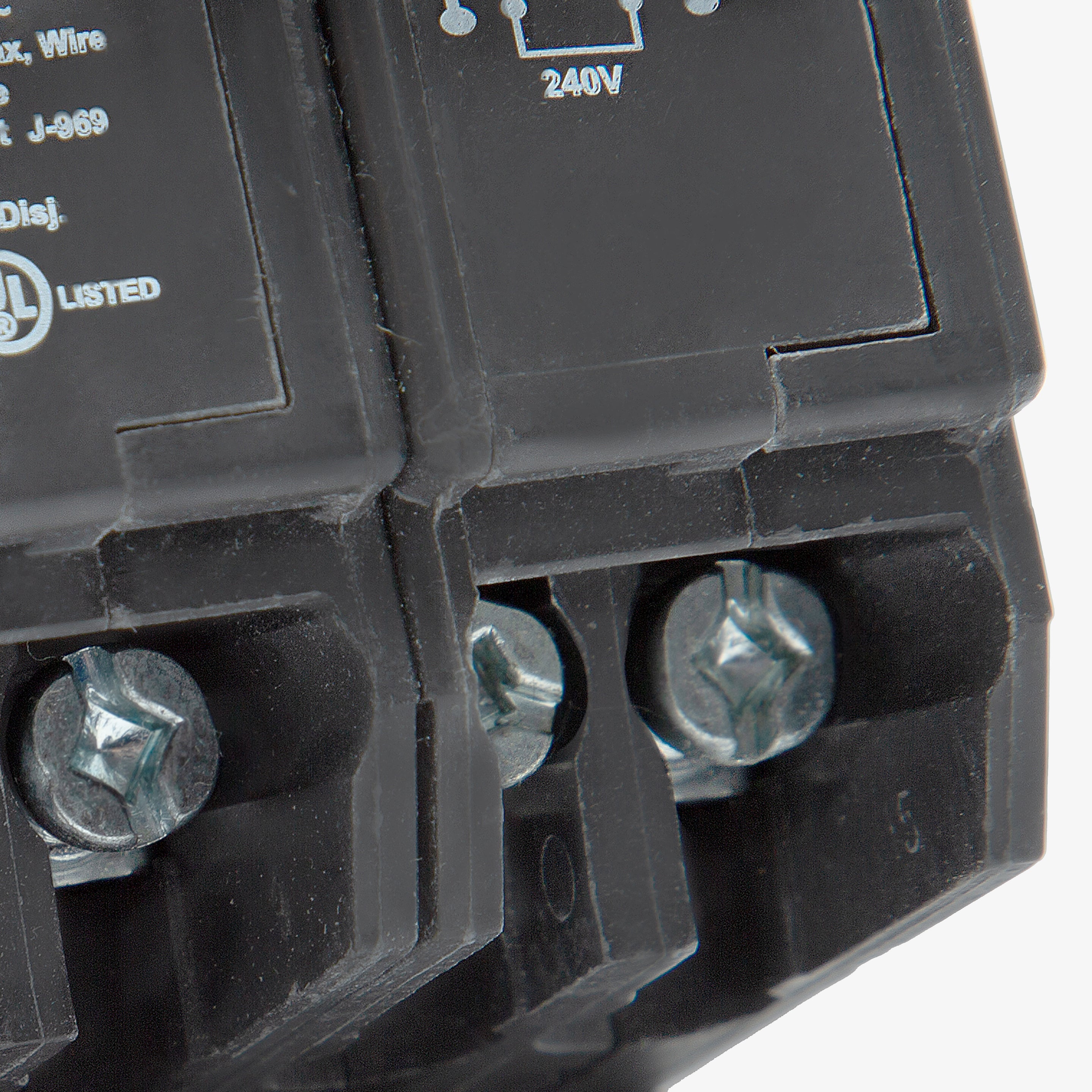

Terminal Type: Box Lugs
-
For Use With: Type BR Load Centers
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed
-
Wire Gauge: 14-4 AWG
-
Max Wire: 4 AWG
-
Min Wire: 14 AWG
-
Available Options: Padlock Attachment
-
Accessories: Rejection Tab
-
Standards: CSA C22.2 No. 5, Federal Specification W-C375, UL 489
-
Temp Rating: 60C to 75C
-
Construction Features: HACR Rated, Rejection Tab
-
Product Name: Eaton BR thermal magnetic circuit breaker
-
Catalog Number: BQ230230
-
UPC: 786676371001
-
Product Length/Depth: 1.4 in
-
Product Height: 3.1 in
-
Product Width: 3.2 in
-
Compliances: Federal Specifications Classification W-C375
-
Certifications: UL 489
-
Catalog Notes: All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated.
-
Product Type: Thermal magnetic circuit breakers
-
Used with: Type BR Loadcenters
-
Trip Type: T194
-
Circuit breaker type: BQ
-
Mounting Method: Plug-on
-
Interrupt rating: 10 kAIC
-
Main circuit breaker: BQ
-
Wire size: #14-4 AWG Cu/Al
-
Number of poles: Four-pole
-
Special features: Includes rejection tab feature
-
HACR: HACR Approved
-
Model: BRD & A
-
Also Fits: Challenger, Westinghouse, Bryant
-
Number of Phases: 1
-
Current Type: AC
