Cutler & Hammer BQ2302120 Bq2302120 2p-30a / 1-20a Cb

Product Description

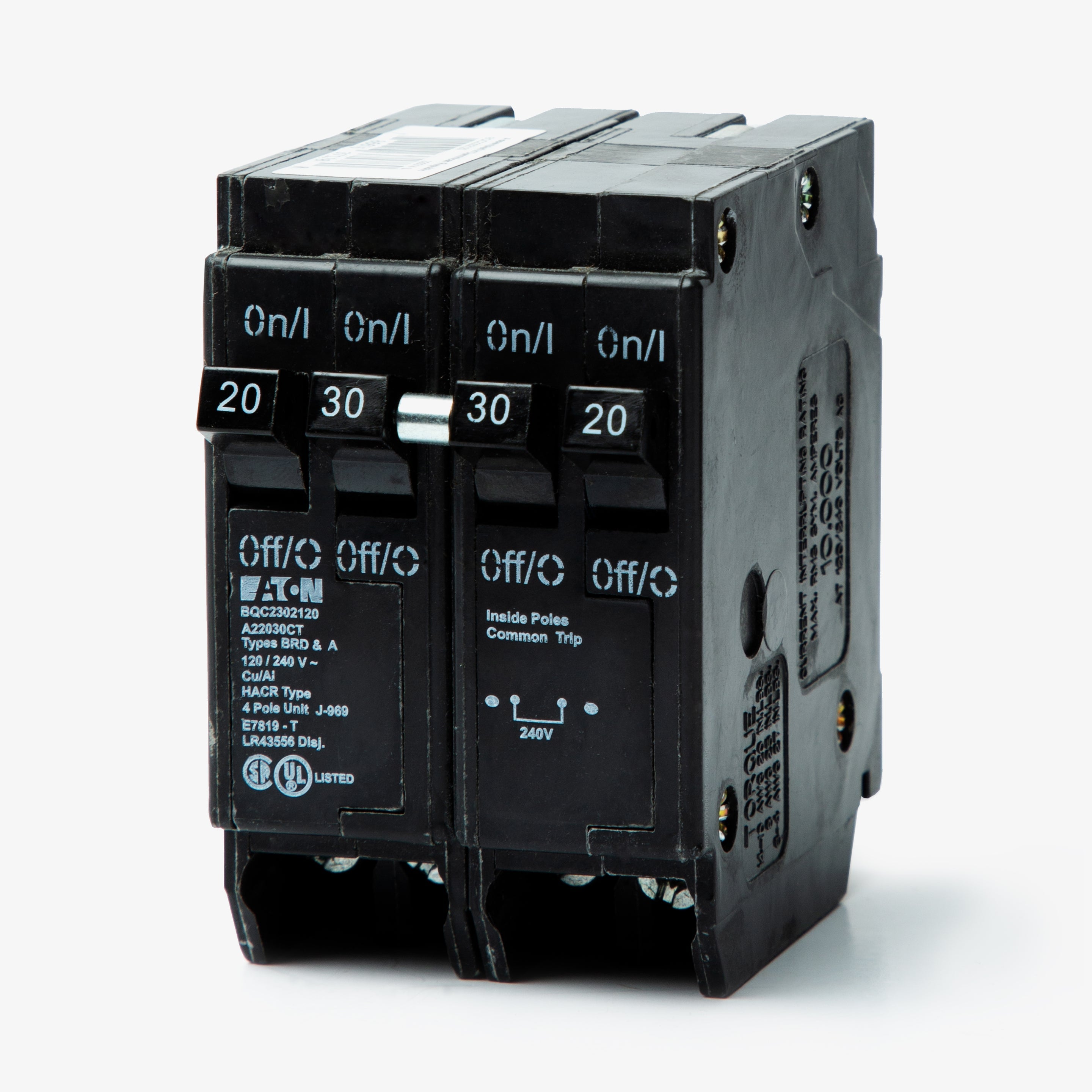

The CUTLER & HAMMER BQ2302120 is an Eaton BR thermal magnetic circuit breaker. This Type BQ 1-Inch CTL plug-on circuit breaker includes a rejection tab feature. It consists of (2) Single-Pole 20 A and (1) Two-Pole 30 A, with a 10 kAIC. It is a four-pole breaker, suitable for 120/240V at 30A and 120V at 20A, and uses NO.14-4 AWG Cu/Al.

• Eaton BR thermal magnetic circuit breaker
• Type BQ 1-Inch CTL plug-on circuit breaker
• Includes rejection tab feature

Product Highlights

The CUTLER & HAMMER BQ2302120 circuit breaker is designed for use with Type BR Loadcenters and is suitable for Heating, Air Conditioning, and Refrigeration (HACR) applications.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: BQ2302120

Technical Specifications

• Type: BQ
• Voltage: 120/240 VAC
• Amperage: 20/30/20 A
• Product Length/Depth: 3 in
• Product Height: 3 in
• Product Width: 2 in
• Compliances: Federal Specifications Classification W-C375
• Certifications: UL 489
• Product Type: Thermal magnetic circuit breakers
• Used with: Type BR Loadcenters
• Amperage Rating: 20A (Outer 1-Pole), 30A (Center 2-Pole)
• Voltage rating: 120/240V at 30A, 120V at 20A
• Interrupt rating: 10 kAIC
• Wire size: #14-4 AWG Cu/Al
• Number of poles: 4
• Special features: Includes rejection tab feature
• Series: BQ
• Mounting Type: Plug-On
• Poles: 4
• Voltage Rating: 120/240VAC
• Wire Size Range: 14 to 4AWG Cu/Al
• Operating Temperature Range: 60 to 75 Deg C
• Applications: For Heating, Air Conditioning, and Refrigeration (HACR)
• Standard: Meet UL 489, CSA, NEMA standards, Federal Spec Classification W-C 375 b/GEN.
