Product Description

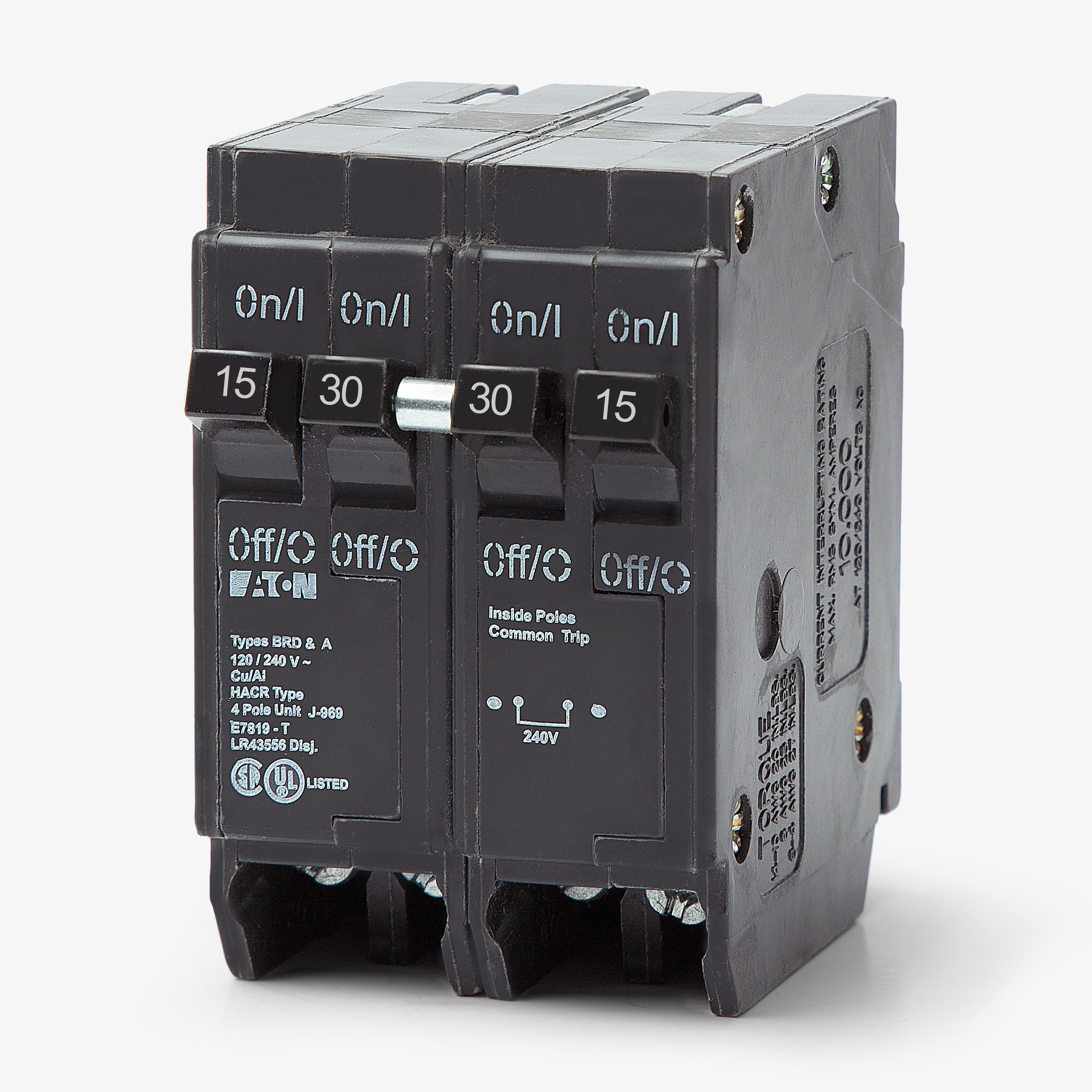

The Cutler & Hammer BQ2302115 quadplex breaker maximizes panel capacity, delivering two 15A single-pole and one 30A two-pole circuits. This space-saving design provides four independent circuits while occupying only two standard spaces. It mounts into Eaton BR series load centers and is compatible with legacy Bryant, Challenger, and Westinghouse panels. Rated 10 kAIC at 120/240V.
- Maximizes panel capacity
- Delivers two 15A single-pole and one 30A two-pole circuits
- Space-saving design
Product Highlights
The Cutler & Hammer BQ2302115 is a quadplex, thermal-magnetic breaker with a plug-on configuration. It is HACR rated for HVAC equipment.
Product Information
Standard Information
-
Brand: CUTLER & HAMMER
-
Manufacturer Part Number: BQ2302115
Technical Specifications
-
Brand: Eaton / Cutler-Hammer
-
Series: BQ
-
Part Number: BQ2302115
-
Amperage: 15/30A
-
Voltage: 120/240VAC
-
Poles: 4
-
Phase: 1
-
AIC Rating: 10kA @ 120/240VAC
-
Special Classification: Quadplex
-

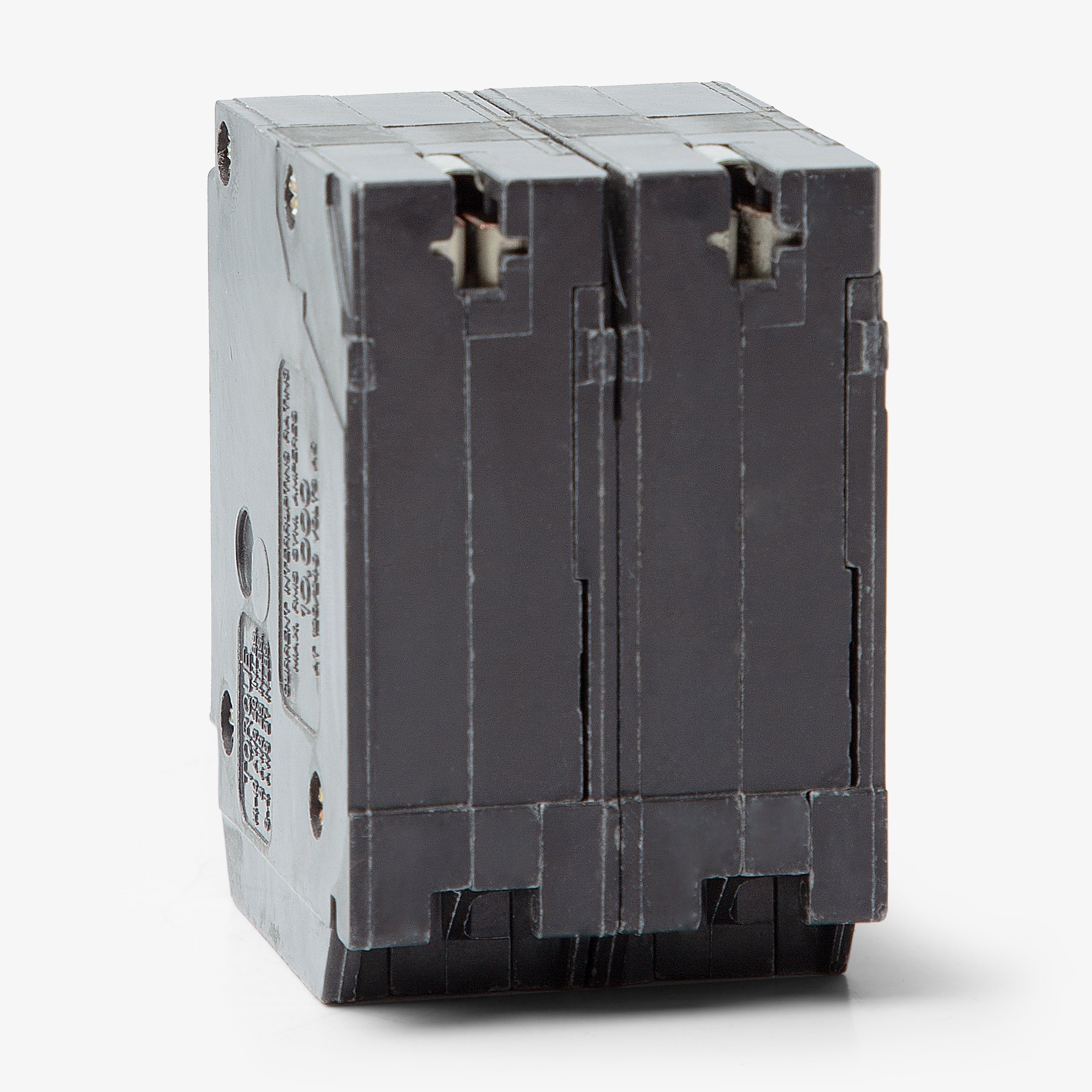

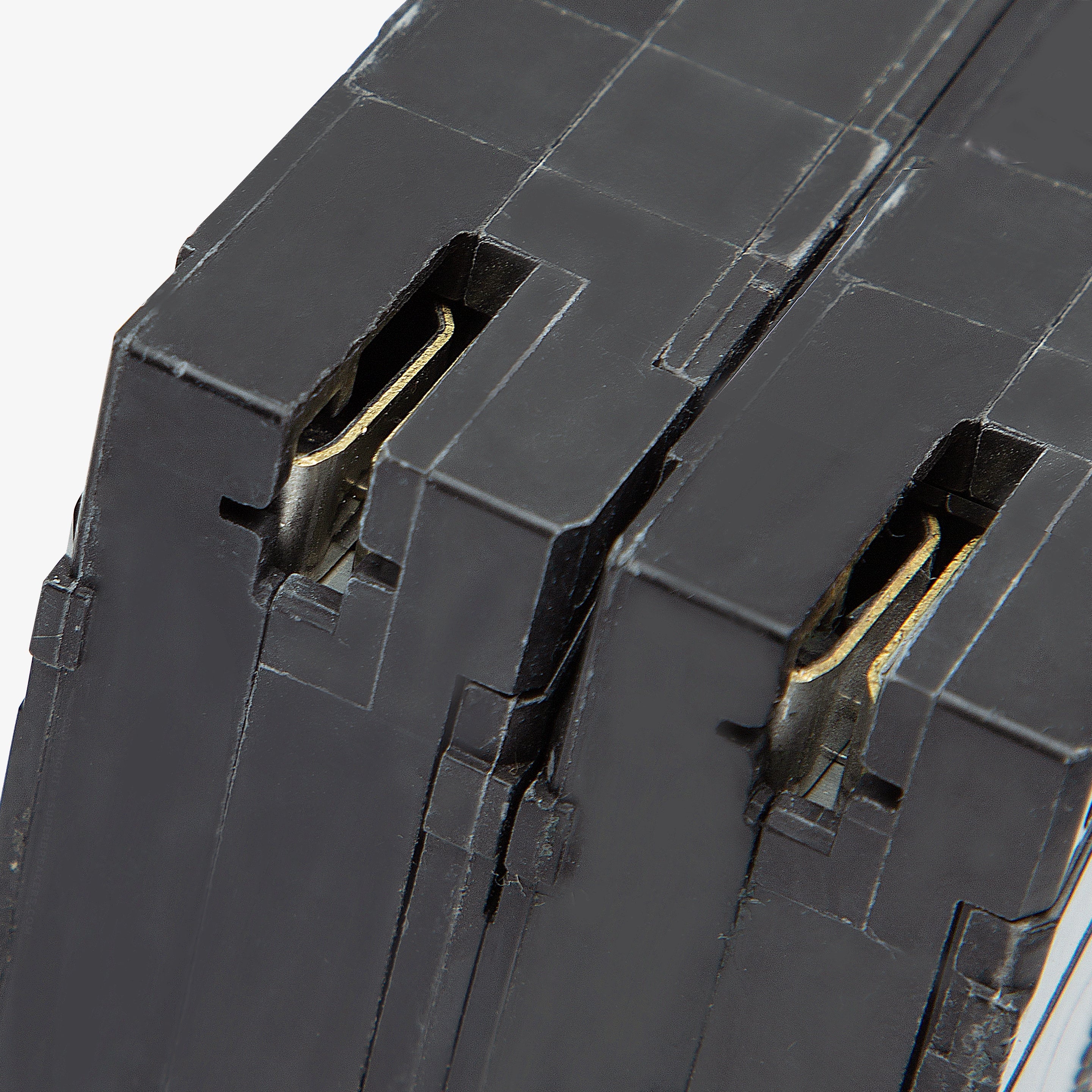

Mounting Style: Plug-On
-

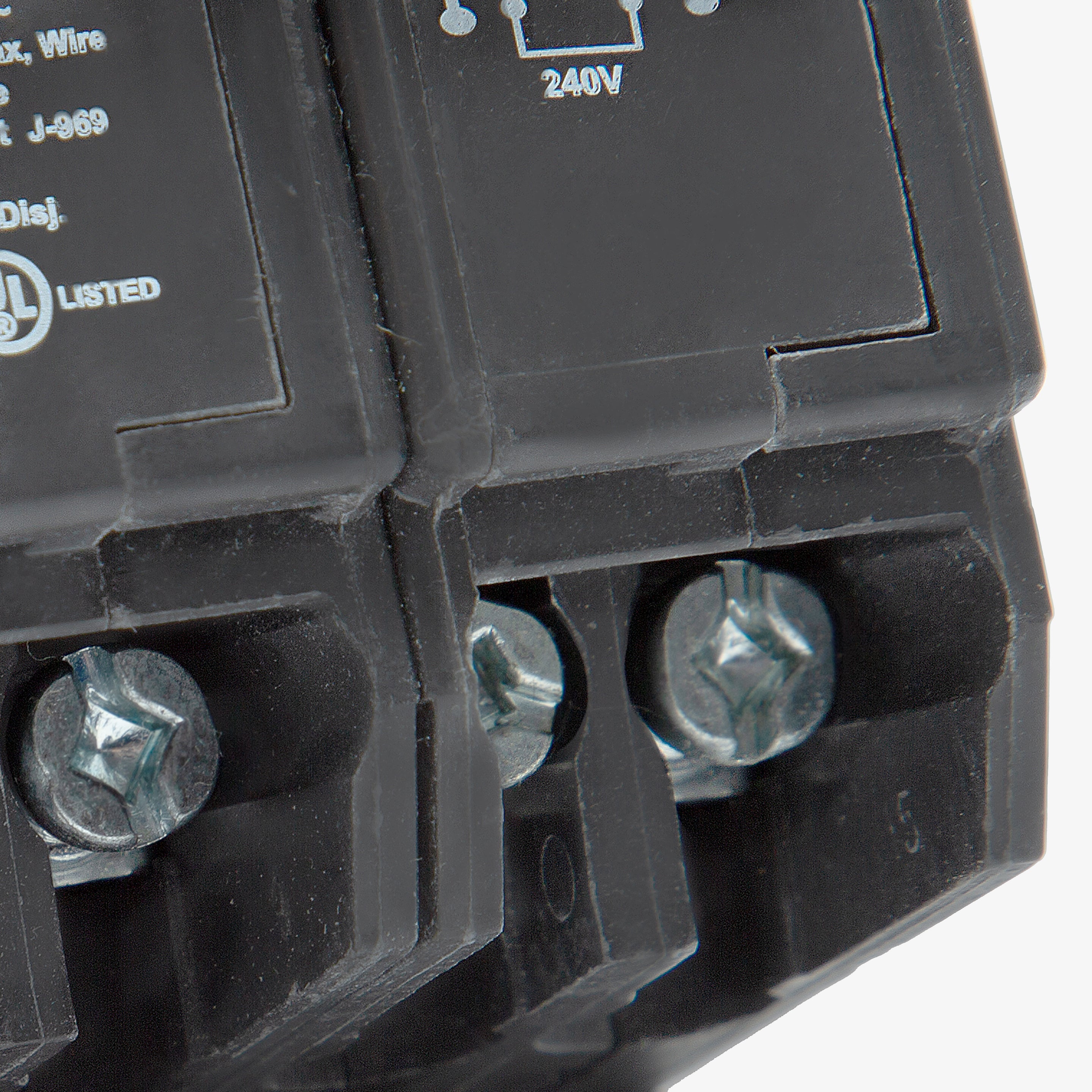

Terminal Type: Box Lugs
-
For Use With: Eaton BR Load Centers, Bryant Load Centers, Westinghouse Load Centers, Challenger Load Centers
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed
-
Wire Gauge: 14-4 AWG
-
Max Wire: 4 AWG
-
Min Wire: 14 AWG
-

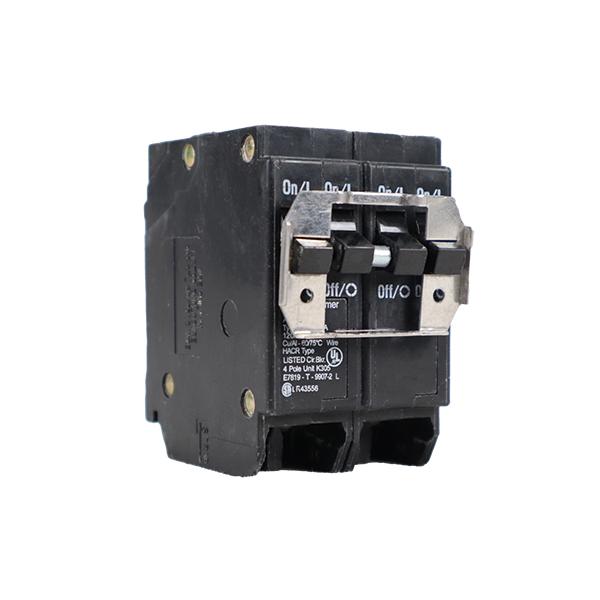

Available Options: Padlock Attachment
-
Accessories: Rejection Tab
-
Standards: CSA C22.2 No. 5, Federal Specification W-C375, UL 489
-
Approval: CSA, UL
-
Temp Rating: 60C to 75C
-
Compliances: Federal Specifications Classification W-C375
-
Certifications: UL 489
-
Catalog Notes: All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated.
-
Product Type: Thermal magnetic circuit breakers
-
Used with: Type BR Loadcenters
-
Amperage Rating: 15A (Outer 1-Pole), 30A (Center 2-Pole)
-
Trip Type: Independent
-
Circuit breaker type: BQ
-
Interrupt rating: 10 kAIC
-
Wire size: #14-4 AWG Cu/Al
-
Special features: Includes rejection tab feature
-
Model: BQ2302115
-
Applications: For Heating, Air Conditioning, and Refrigeration (HACR)
-
No. Of Poles: 4
-
Wire Size Range: 14 to 4AWG Cu/Al
-
Operating Temperature Range: 60 to 75 Deg C
-
Special Features: Requires Two 1 inch Spaces, Class CL
