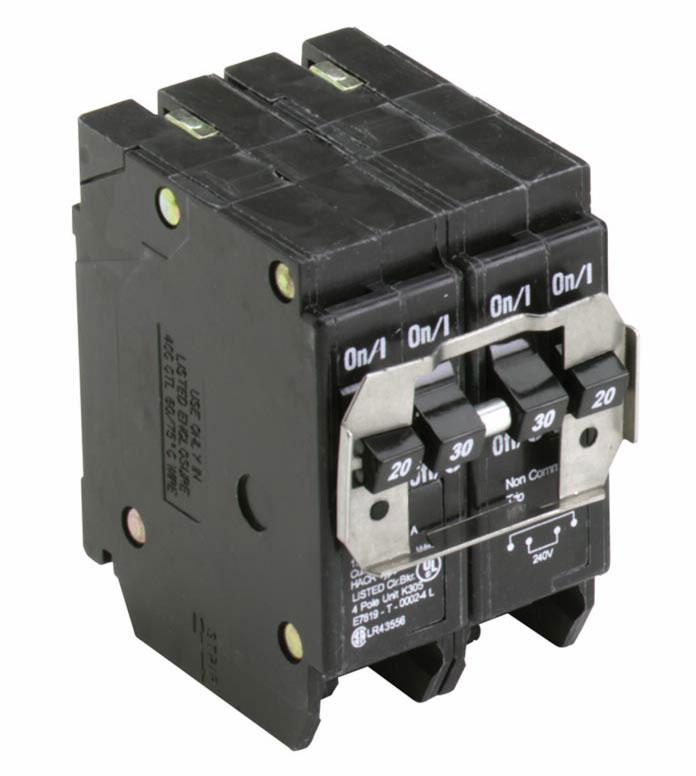

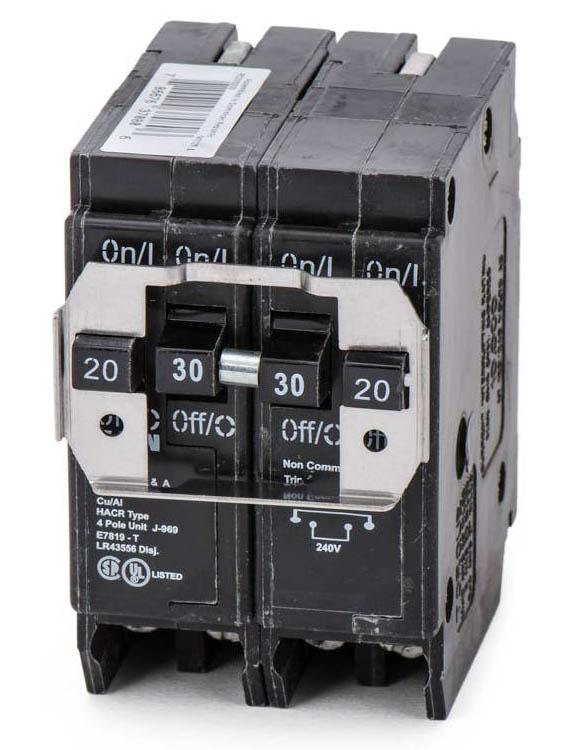

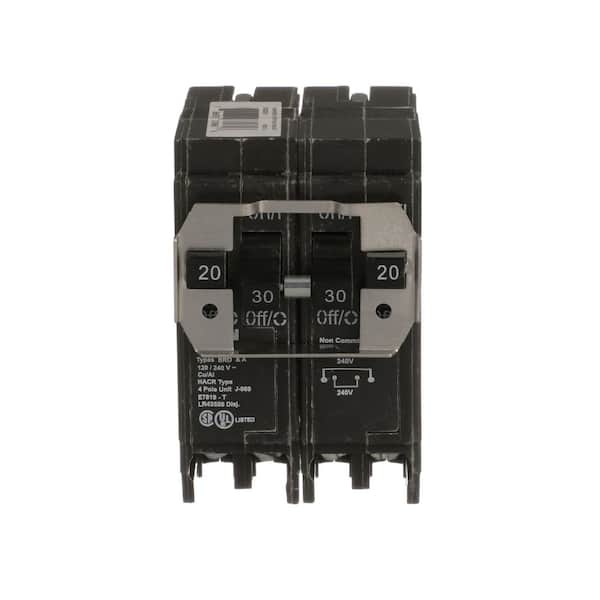

Cutler & Hammer BQ220230 BR Thermal Magnetic Circuit Breaker (2)20/(2)30

Product Description

The Cutler & Hammer BQ220230 is a 4-pole tandem thermal magnetic circuit breaker rated at 120/240 volts and (2)20/(2)30 amps. It is designed for use with all type BD duplex and BQ quadplex listed for HACR applications. It features an individual trip as well as a rejection tab.

• 4-pole tandem circuit breaker
• Rated at 120/240 volts and 20/30 amps
• For use with all type BD duplex and BQ quadplex
• Listed for HACR applications

Product Highlights

The Cutler-Hammer thermal magnetic circuit breaker protects against overheating and short circuits. It is ideal for residential and light commercial applications.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: BQ220230

Technical Specifications

• Brand: CUTLER & HAMMER
• MPN: BQ220230
• Type: Thermal Magnetic Circuit Breaker
• Application: HACR
• Voltage: 120/240 VAC
• Amperage: (2)20/(2)30
• Product Length/Depth: 3 in
• Product Height: 3 in
• Product Width: 2 in
• Compliances: Federal Specifications Classification W-C375
• Certifications: UL 489
• Catalog Notes: All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated.
• Product Type: Thermal magnetic circuit breakers
• Used with: Type BR Loadcenters
• Amperage Rating: (1) Two-Pole 20A, (1) Two-Pole 30A
• Voltage rating: 120/240 V
• Trip Type: T194
• Circuit breaker type: BQ
• Mounting Method: Plug-on
• Interrupt rating: 10 kAIC
• Main circuit breaker: BQ
• Wire size: #14-4 AWG Cu/Al
• Number of poles: 4
• Special features: Includes rejection tab feature
• Manufacturer: Eaton Cutler-Hammer
• Family: BQ Series
• UL Listed: UL Listed
• AIC Rating: 10kA@240V
• Protection: Thermal Magnetic
• Functions: LI - Long-Time and Instantaneous
• Suitable For: Interior
• Tripping Characteristics: Type A
• Current Type: AC
• Model: BQ220230
• Series: Series BQ
• Commercial/Residential: Light Commercial/Residential
• Interrupt Rating: 10 kA
• Actuator Type: Toggle Handle
• Connection Type: Feed-Thru
• Terminal Type: Lug Line and Load Side
• Temperature Rating: 60 - 75 deg C
• Wire Size: 14 - 4 AWG Aluminum/Copper
• Mounting Type: Plug-On
• Dimensions: 3 Inch L x 2 Inch W x 3 Inch H
