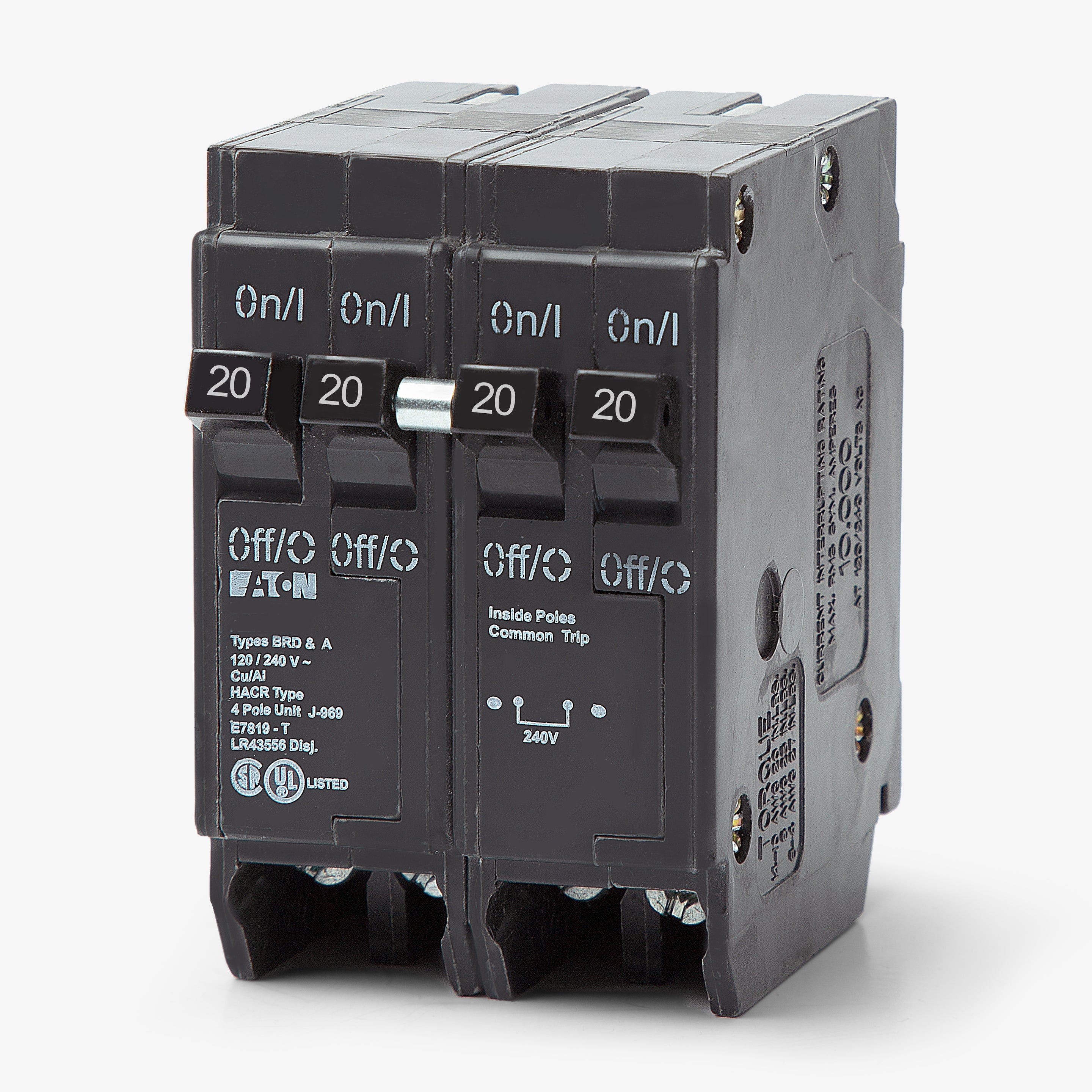

Cutler & Hammer BQ2202120 BR Thermal Magnetic Circuit Breaker 20/(2)20/20

Product Description

The Cutler & Hammer BQ2202120 is a 4-pole tandem circuit breaker rated at 120/240 volts and 20 amps. It is for use with all type BD duplex and BQ quadplex listed for HACR applications. This thermal magnetic circuit breaker maximizes panel density and mounts into Eaton BR, Bryant, Challenger, and Westinghouse load centers.

• 4-pole tandem circuit breaker
• Rated at 120/240 volts and 20 amps
• For use with all type BD duplex and BQ quadplex listed for HACR applications

Product Highlights

The Cutler & Hammer BQ2202120 circuit breaker is engineered for residential and commercial load centers.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: BQ2202120

Technical Specifications

• Brand: CUTLER & HAMMER
• MPN: BQ2202120
• Type: BQ
• Application: HACR
• Voltage: 120/240 VAC
• Amperage: 20/(2)20/20
• Product Length/Depth: 3 in
• Product Height: 2.5 in
• Product Width: 2 in
• Compliances: Federal Specifications Classification W-C375
• Certifications: UL 489
• Product Type: Thermal magnetic circuit breakers
• Used with: Type BR Loadcenters
• Amperage Rating: (2) Single-Pole 20A, (1) Two-Pole 20A
• Voltage rating: 120/240V at 20A, 120V at 15A
• Trip Type: T194
• Circuit breaker type: BQ

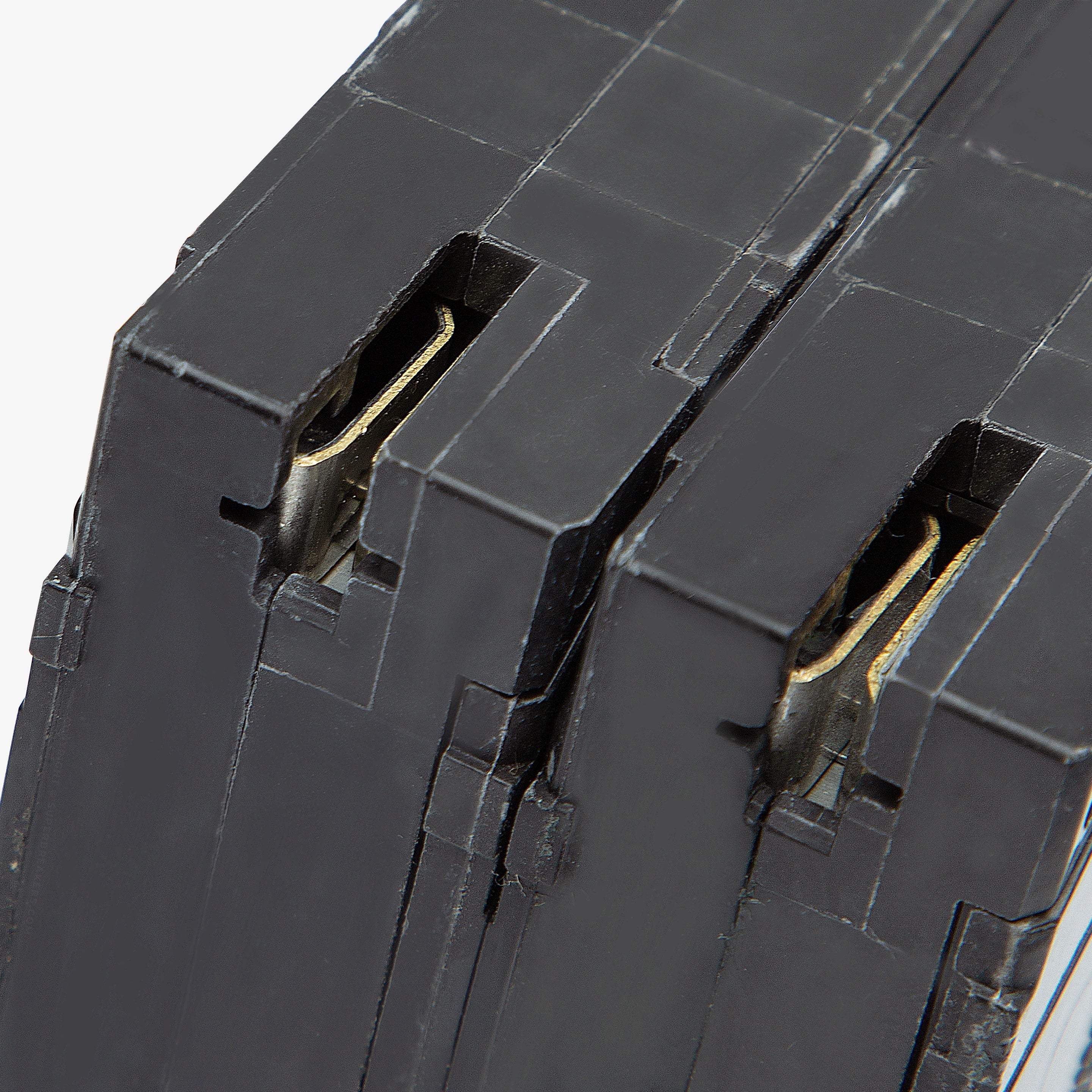

• Mounting Method: Plug-on
• Interrupt rating: 10 kAIC
• Main circuit breaker: BQ
• Wire size: #14-4 AWG Cu/Al
• Number of poles: Four-pole
• Special features: Includes rejection tab feature
• Series: BQ
• Part Number: BQ2202120
• Poles: 4
• Phase: 1
• AIC Rating: 10kA @ 120/240VAC
• Special Classification: Quadplex
• Mounting Style: Plug-On

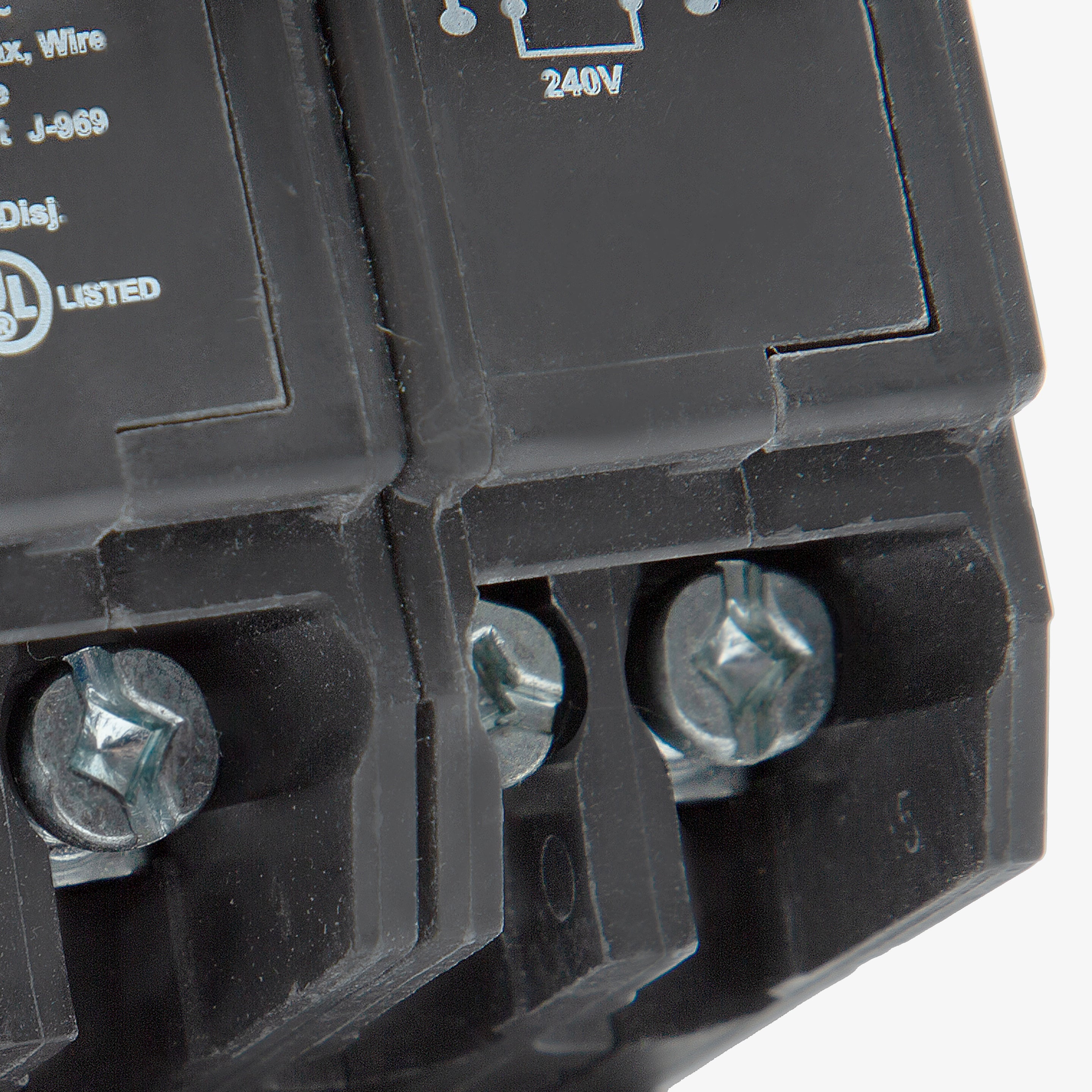

• Terminal Type: Box Lugs
• For Use With: Eaton BR Load Centers, Bryant Load Centers, Westinghouse Load Centers, Challenger Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 14-4 AWG
• Max Wire: 4 AWG
• Min Wire: 14 AWG
• Available Options: Padlock Attachment
• Accessories: Rejection Tab
• Standards: CSA C22.2 No. 5, Federal Specification W-C375, UL 489
• Approval: CSA, UL
• Temp Rating: 60C to 75C
• Ampere Rating (Amps): 20/20/20
• Voltage Rating (VAC): 120/240
• Mounting Type: Plug-In
• Interrupting Rating (kA): 10
• Width (In.): 2
• HACR Rated: Yes
