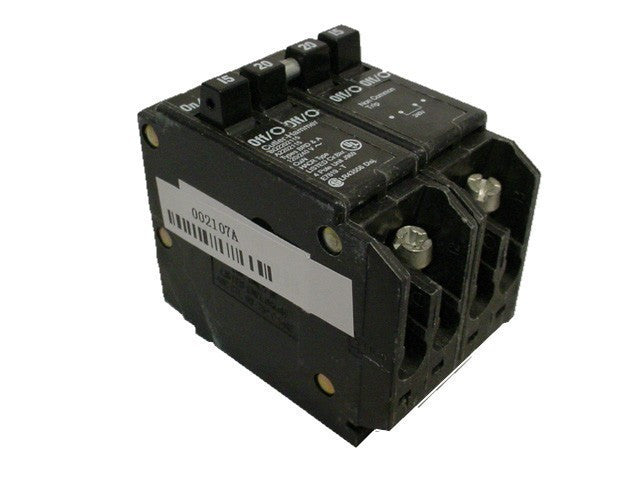

Cutler & Hammer BQ2202115 4-Pole Tandem Circuit Breaker 15/20 Amps

Product Description

The CUTLER & HAMMER BQ2202115 is a 4-pole tandem circuit breaker rated at 120/240 volts and 15/20 amps. It is designed for use with all type BD duplex and BQ quadplex listed for HACR applications. This quad breaker combines multiple circuits into a single two-pole space, ideal for residential upgrades and light commercial expansions.

• 4-pole tandem circuit breaker
• Rated at 120/240 volts
• 15/20 amps
• For use with all type BD duplex and BQ quadplex listed for HACR applications

Product Highlights

The Cutler-Hammer BQ2202115 circuit breaker provides a practical solution for full electrical panels, saving space and offering reliable circuit protection.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: BQ2202115
• Country of Origin: United States

Technical Specifications

• Brand: CUTLER & HAMMER
• MPN: BQ2202115
• Type: BQ 1" CTL Plug-On Circuit Breaker
• Voltage: 120/240V
• Amperage: 15/20A
• Poles: 4-Pole
• Series: BQ
• AIC Rating: 10kA @ 120/240VAC
• Special Classification: Quadplex

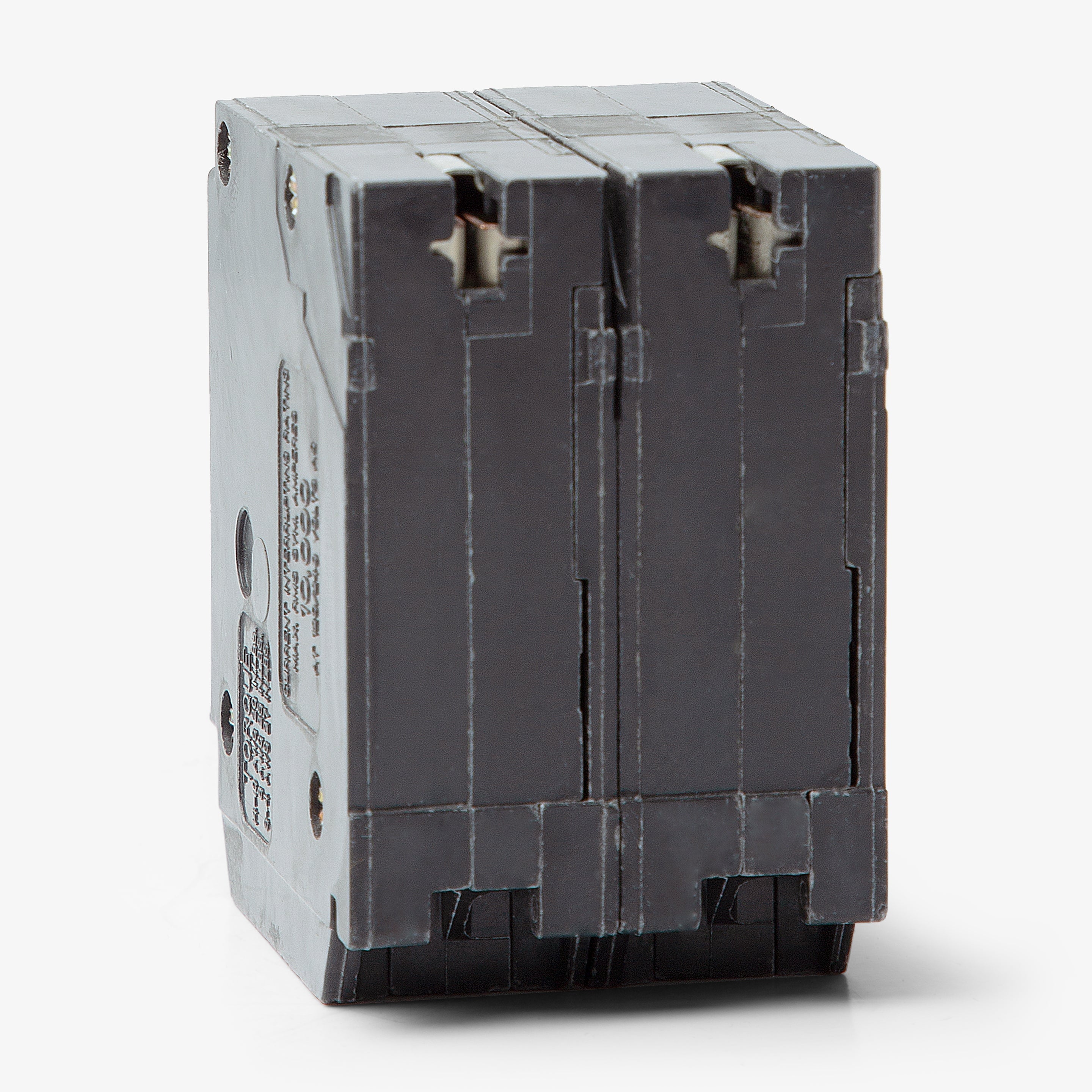

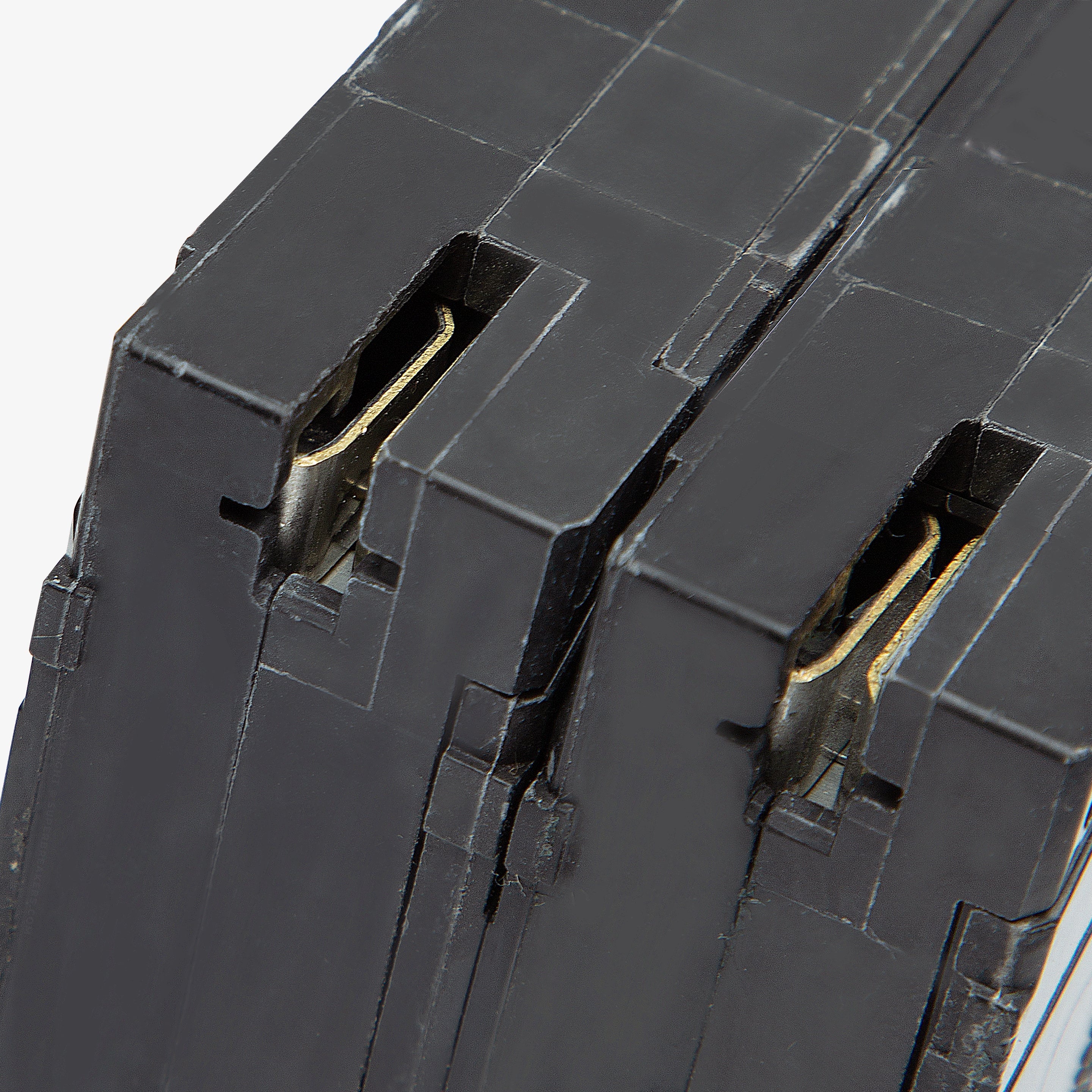

• Mounting Style: Plug-On

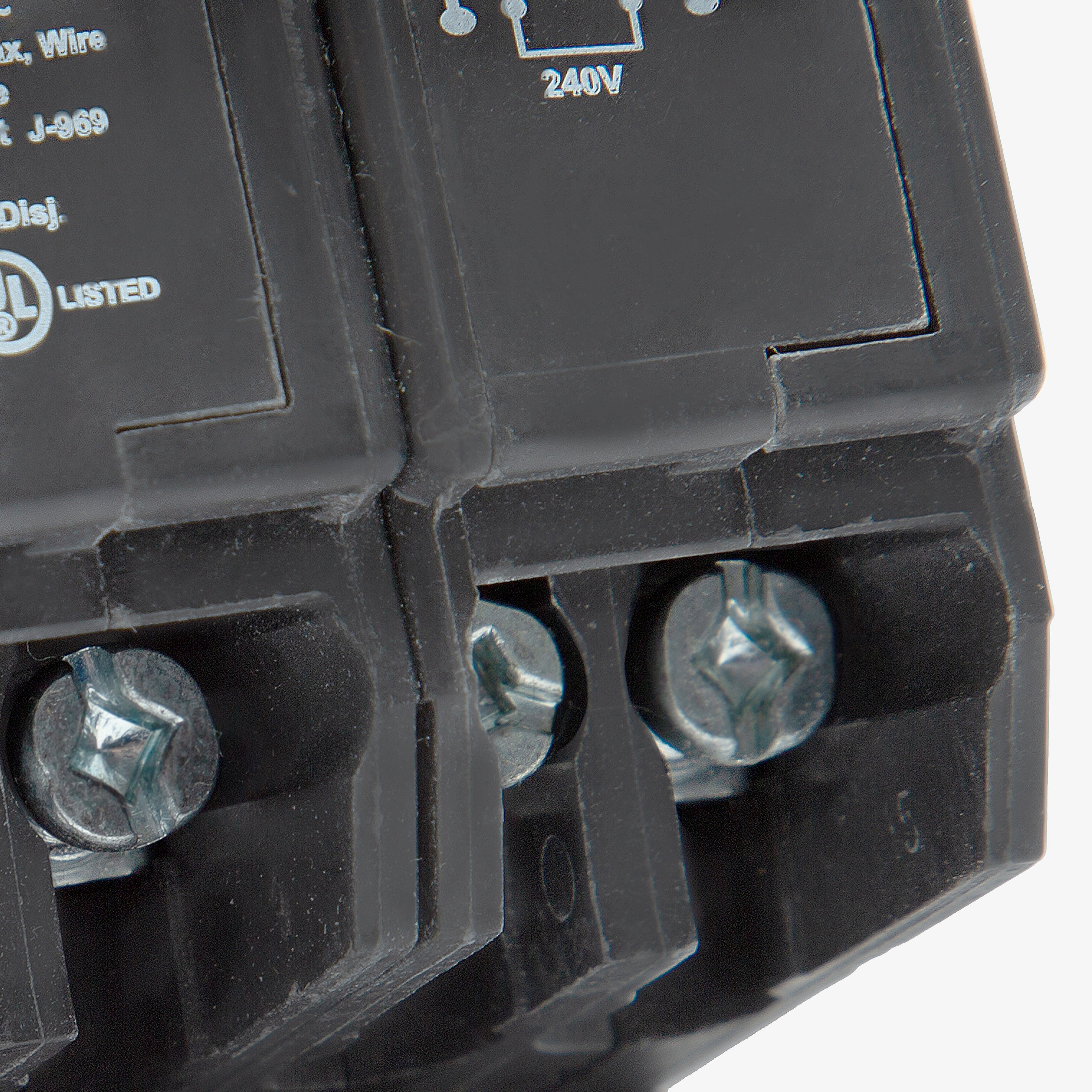

• Terminal Type: Box Lugs
• For Use With: Type BR Load Centers
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed
• Wire Gauge: 14-4 AWG
• Max Wire: 4 AWG
• Min Wire: 14 AWG
• Available Options: Padlock Attachment
• Accessories: Rejection Tab
• Standards: CSA C22.2 No. 5, Federal Specification W-C375, UL 489
• Approval: CSA, UL
• Temp Rating: 60C to 75C
• Product Length/Depth: 3 in
• Product Height: 3 in
• Product Width: 2 in
• Compliances: Federal Specifications Classification W-C375
• Certifications: UL 489
• Catalog Notes: All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated.
• Product Type: Thermal magnetic circuit breakers
• Used with: Type BR Loadcenters
• Voltage rating: 120/240V at 20A, 120V at 20A
• Trip Type: T194
• Circuit breaker type: BQ
• Mounting Method: Plug-on
• Interrupt rating: 10 kAIC
• Main circuit breaker: BQ
• Wire size: #14-4 AWG Cu/Al
• Number of poles: Four-pole
• Special features: Includes rejection tab feature
• Country of Origin: United States
