Product Description

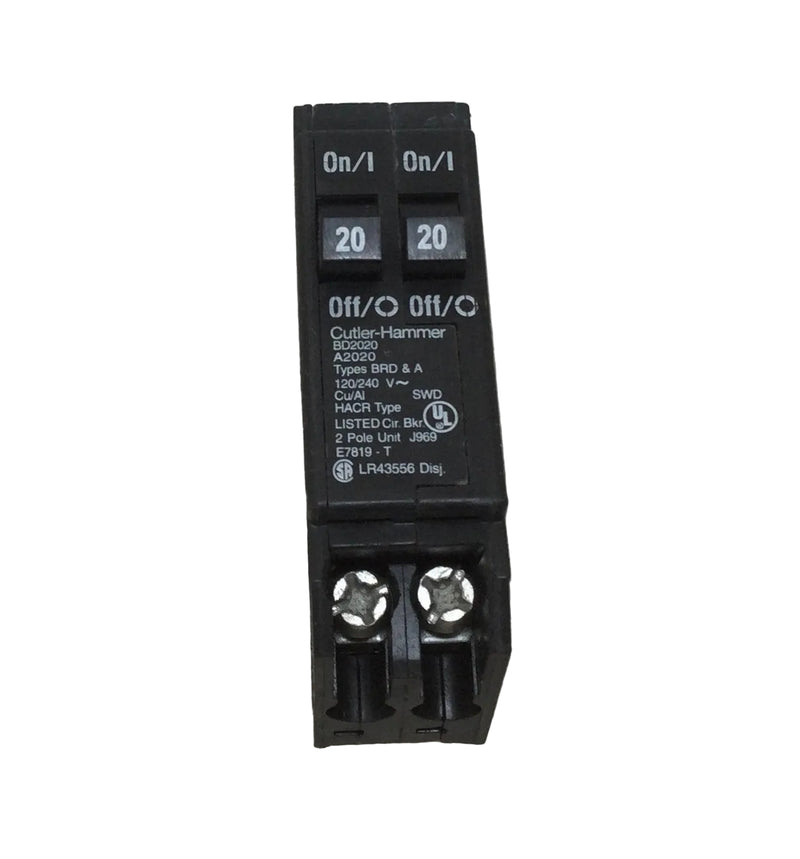

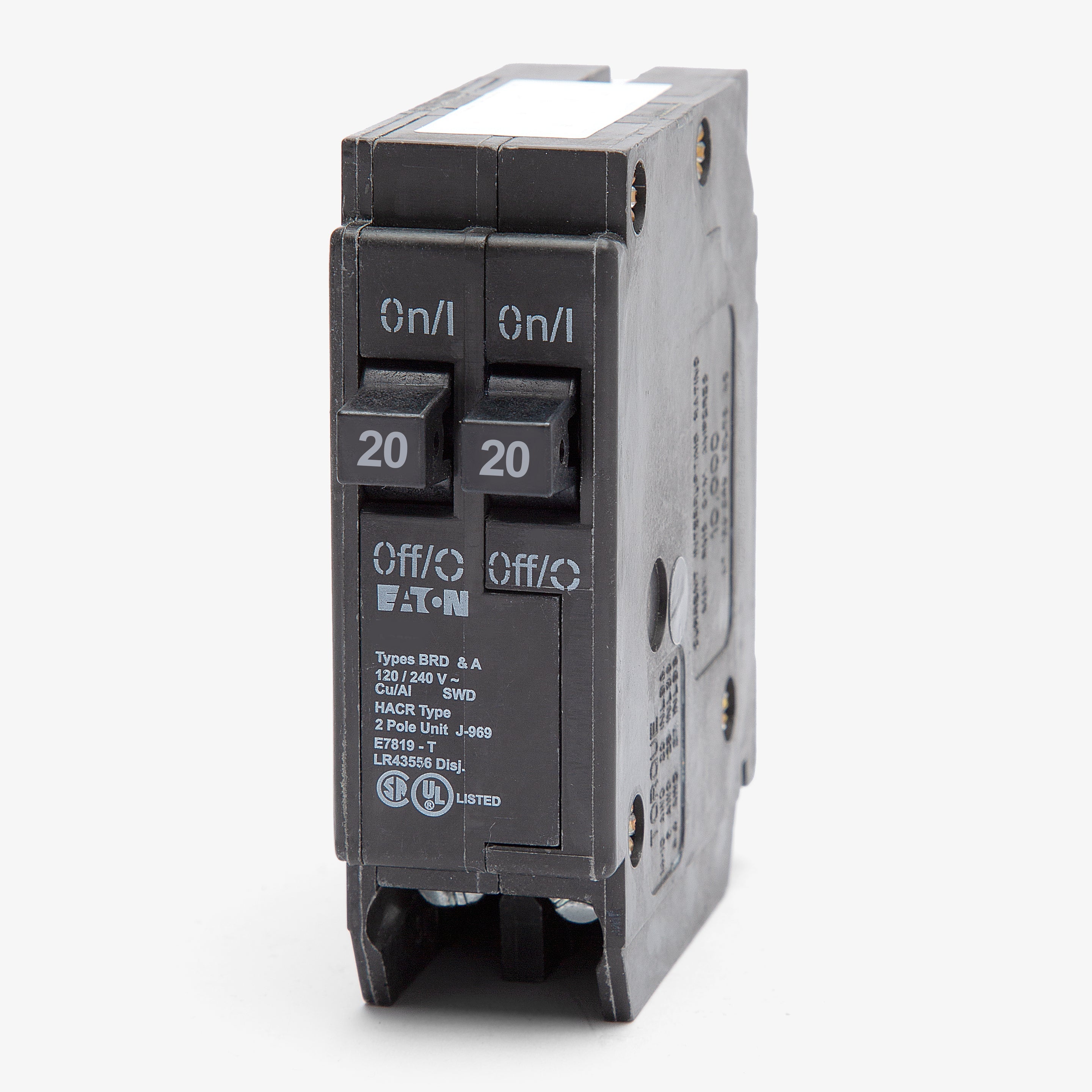

The CUTLER & HAMMER BD2020 is designed for residential power distribution, delivering two independent 20A circuits from a single one-inch panel space. This tandem breaker easily installs into modern Eaton BR load centers. It features a thermal-magnetic trip, a 10 kAIC interrupt rating at 120VAC, and includes a CTL rejection tab.
- Delivers two independent 20A circuits from a single one-inch panel space
- Easily installs into modern Eaton BR load centers
- Featuring a thermal-magnetic trip and a 10 kAIC interrupt rating at 120VAC
Product Highlights
The Cutler-Hammer BD2020 circuit breaker protects wiring from overloads and short circuits, ensuring maximum safety and reliability.
Product Information
Standard Information
-
Brand: CUTLER & HAMMER
-
Manufacturer Part Number: BD2020
Technical Specifications
-
Brand: Eaton / Cutler-Hammer
-
Series: BD
-
Part Number: BD2020
-
Amperage: 20/20A
-
Voltage: 120VAC
-
Poles: 2 Pole
-
Phase: 1
-
AIC Rating: 10kA @ 120VAC
-
Special Classification: Tandem
-
Mounting Style: Plug-On
-
Terminal Type: Feed-Thru
-
For Use With: Eaton Type BR Load Centers, Bryant Load Centers, Challenger Load Centers, Westinghouse Load Centers
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed
-
Wire Gauge: 14-4 AWG
-
Max Wire: 4 AWG
-
Min Wire: 14 AWG
-
Available Options: Padlock Attachment
-
Accessories: Rejection Tab
-
Standards: CSA C22.2 No. 5, Federal Specification W-C375, UL 489
-
Approval: CSA, CTL, HACR, SWD, UL
-
Temp Rating: 40C
-
Construction Features: Tandem, CTL Rejection, Rejection Tab, HACR Rated, SWD Rated
-
Model #: BD2020 / A2020
-
Amps: 20 Amps
-
Volts: 120/240 Volts
-
Type: BRD
-
Actuator Type: Magnetic, Thermal
-
Current Rating: 20 A
-
Interrupt Rating: 10 kA
-
Operating Frequency: 50/60 Hz
-
Operating Temperature: 40 deg C
-
Suitable for: Overload and Short Circuit Protection of Home Electrical System
-
Voltage Rating: 120 V
-
Number of Phases: 1
-
Trip Type: Instantaneous
-
Number of Spaces: 1
-
Mounting Type: Plug
-
SKU: BD2020
-
Product Name: Eaton BR thermal magnetic circuit breaker
-
Catalog Number: BD2020
-
UPC: 786676369251
-
Product Length/Depth: 3 in
-
Product Height: 1 in
-
Product Width: 1.6 in
-
Compliances: Federal Specifications Classification W-C375
-
Certifications: UL 489
-
Catalog Notes: All Type BD Duplex and BQ Quadplex circuit breakers carry listing for HACR applications. All 15 and 20 ampere single poles are switch duty rated.
-
Product Type: Thermal magnetic circuit breakers
-
Used with: Type BR Loadcenters
-
Amperage Rating: (2) 20A
-
Circuit breaker type: BR
-
Main circuit breaker: BD
-
Wire size: #14-4 AWG Cu/Al
-
Number of poles: Single-pole
-
Special features: Includes rejection tab feature
