Product Description

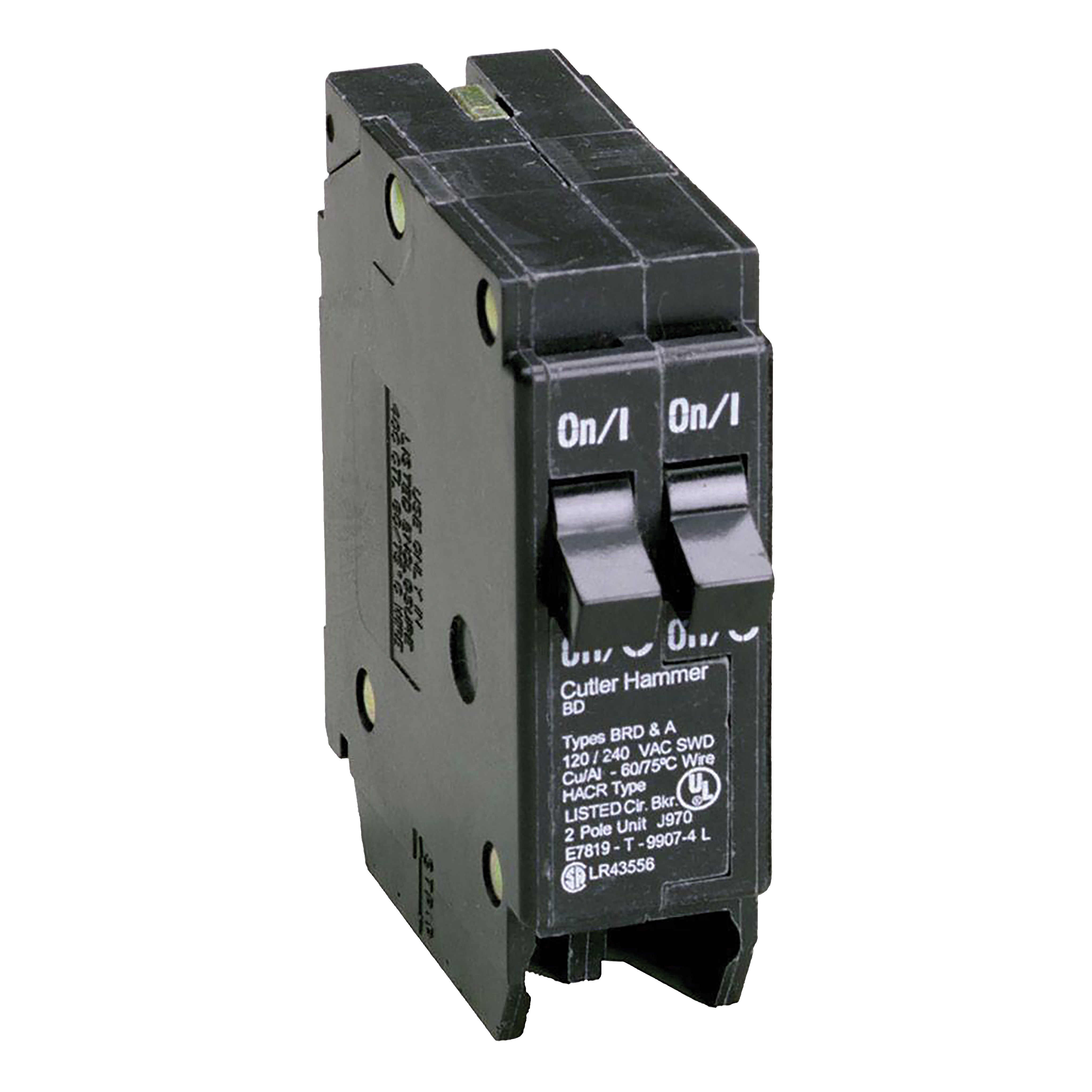

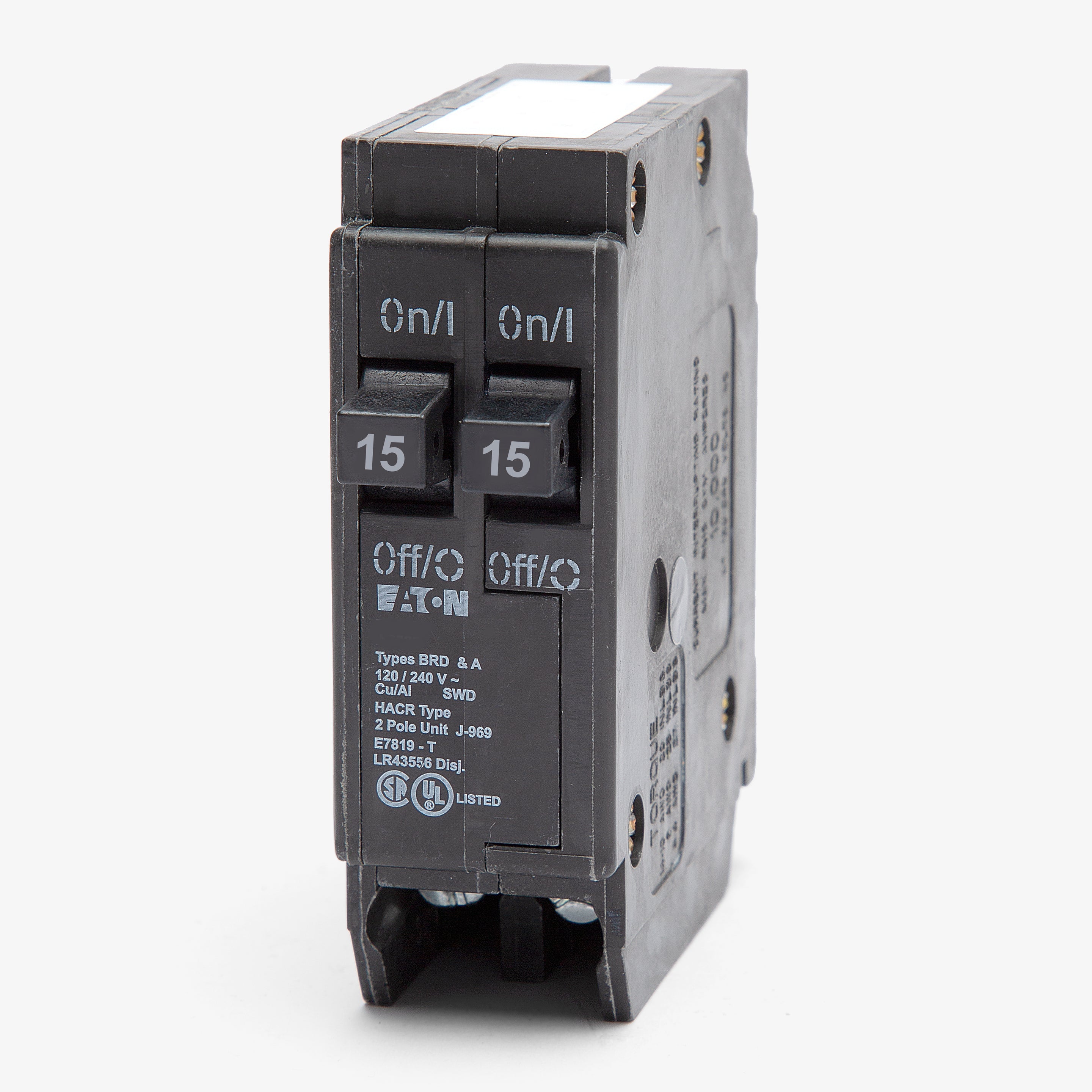

The Cutler & Hammer BD1515 is engineered for high-density power distribution, supplying two independent 15-amp poles from a single one-inch panel slot. Its space-saving profile helps add new branch circuits when existing enclosures are full. It is compatible with Eaton BR, legacy Bryant, and Westinghouse load centers.
- Engineered for high-density power distribution
- Supplies two independent 15-amp poles from a single one-inch panel slot
- Space-saving profile
Product Highlights
This tandem miniature circuit breaker is ideal for overload and short circuit protection of home electrical systems.
Product Information
Standard Information
-
Brand: CUTLER & HAMMER
-
Manufacturer Part Number: BD1515
-
Country of Origin: US
Technical Specifications
-
Brand: Eaton / Cutler-Hammer
-
Series: BD
-
Part Number: BD1515
-
Amperage: 15/15A
-
Voltage: 120VAC
-
Poles: 1
-
Phase: 1
-
AIC Rating: 10kA @ 120VAC
-
Special Classification: Tandem
-
Mounting Style: Plug-On
-

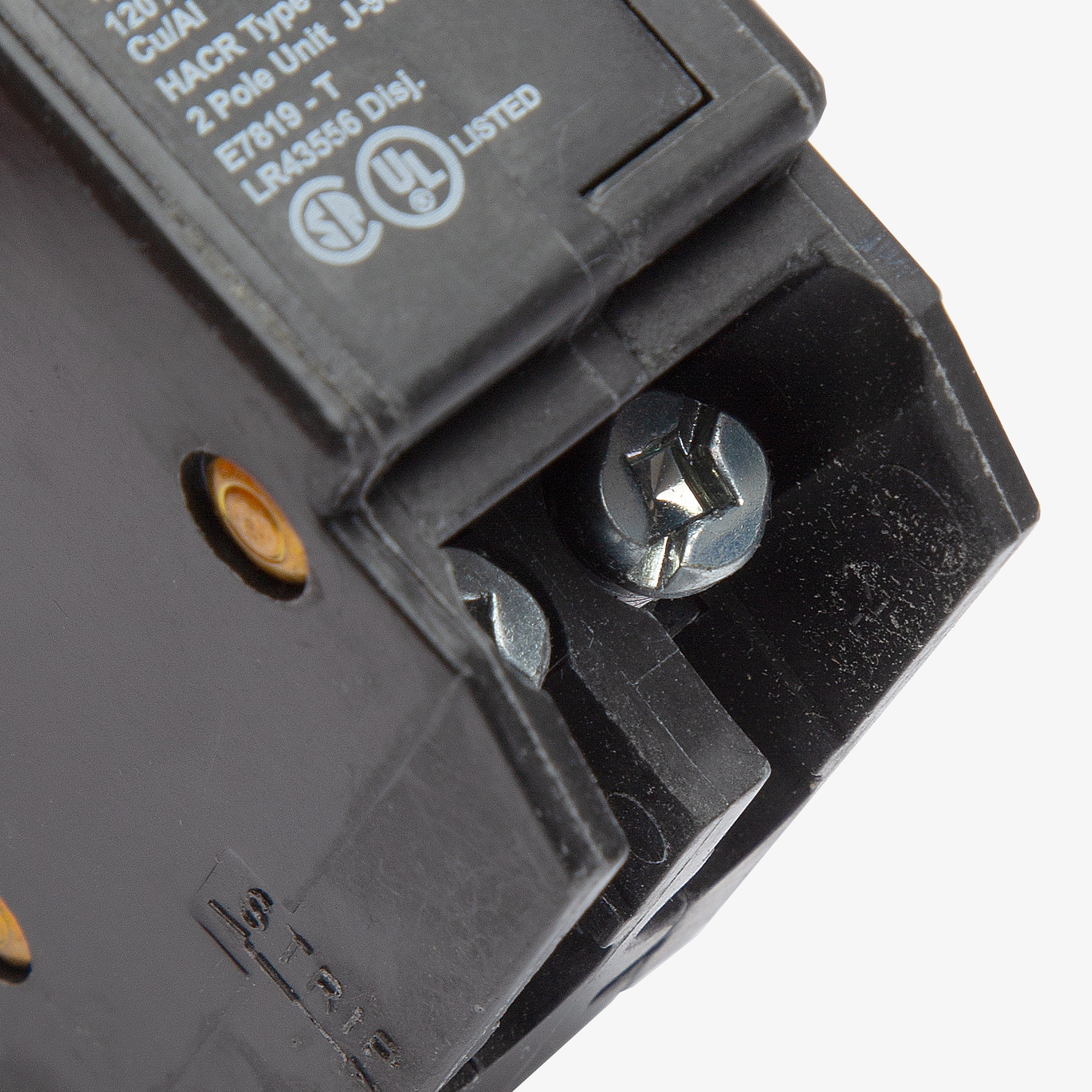

Terminal Type: Box Lugs
-
For Use With: Eaton Type BR Load Centers, Bryant Load Centers, Challenger Load Centers, Westinghouse Load Centers
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed
-
Wire Gauge: 14-4 AWG
-
Max Wire: 4 AWG
-
Min Wire: 14 AWG
-
Available Options: Padlock Attachment
-
Accessories: Rejection Tab
-
Standards: CSA C22.2 No. 5, Federal Specification W-C375, UL 489
-
Approval: CSA, CTL, HACR, SWD, UL
-
Temp Rating: 40C
-
Construction Features: HACR Rated, SWD Rated, Rejection Tab, Tandem
-
Type: Duplex
-
Voltage Rating: 120 V
-
Current Rating: 15 A
-
Operating Frequency: 50/60 Hz
-
Number of Phases: 1
-
Interrupt Rating: 10 kA
-
Actuator Type: Magnetic, Thermal
-
Trip Type: Instantaneous
-
Wire Size: 14 to 4 AWG
-
Number of Spaces: 1
-
Operating Temperature: 40 deg C
-
Suitable for: Overload and Short Circuit Protection of Home Electrical System
-
Maximum Amperage: 15 A
-
Current Type: AC/CA
-
Control Style: Analog/Mechanical
-
Model: BD1515
-
Features: SWD, HACR Type
-
Number of Poles: 2
-
Application: Branch Circuit
-
Finish: Matte
