Cutler-Hammer BAB3050H Circuit Breaker 240 VAC 50A

Product Description

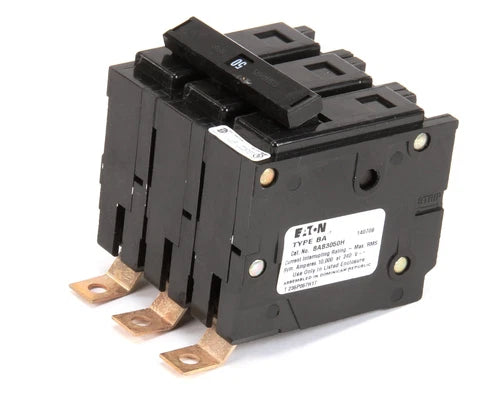

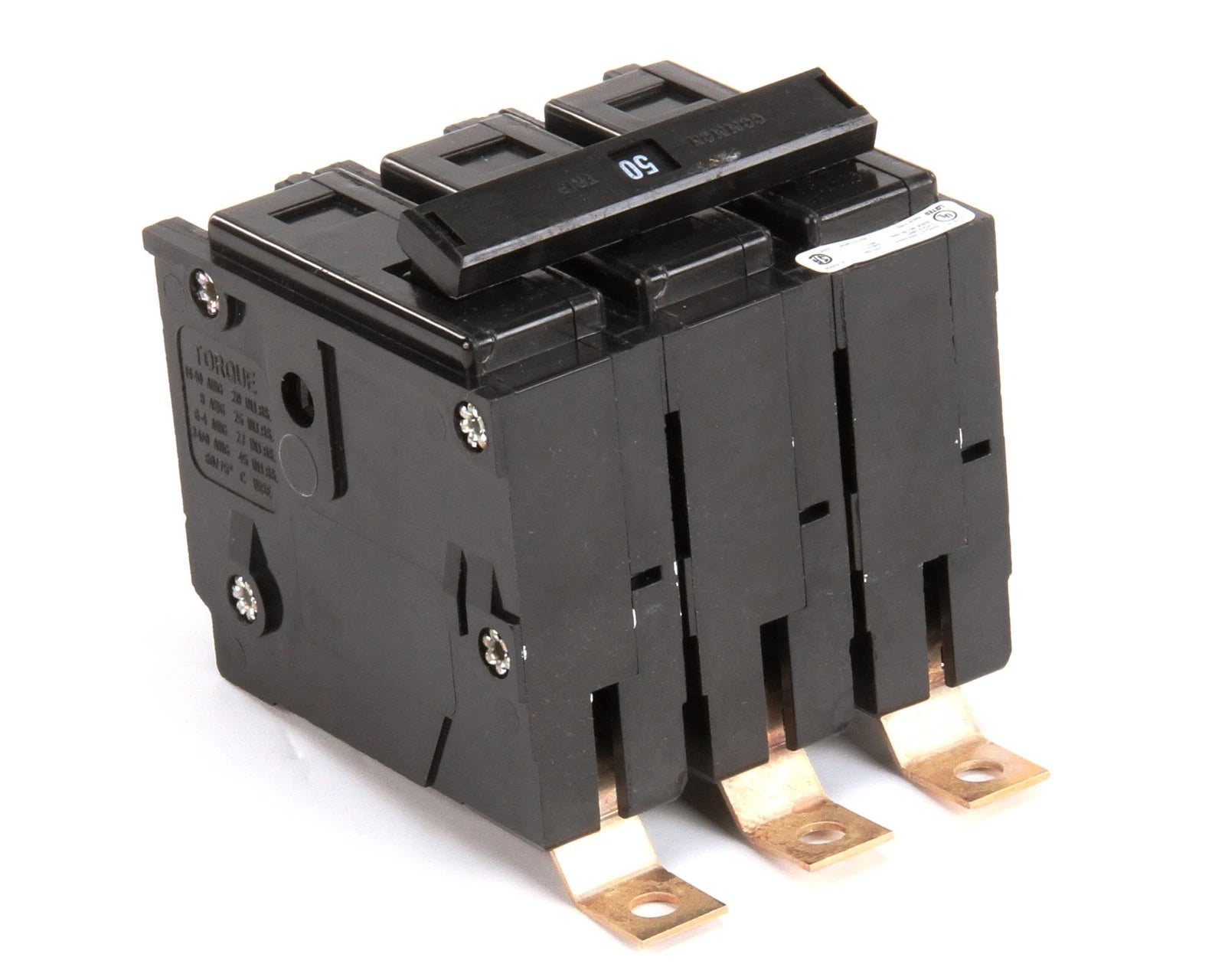

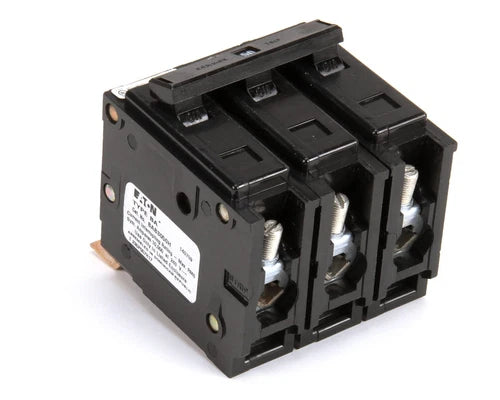

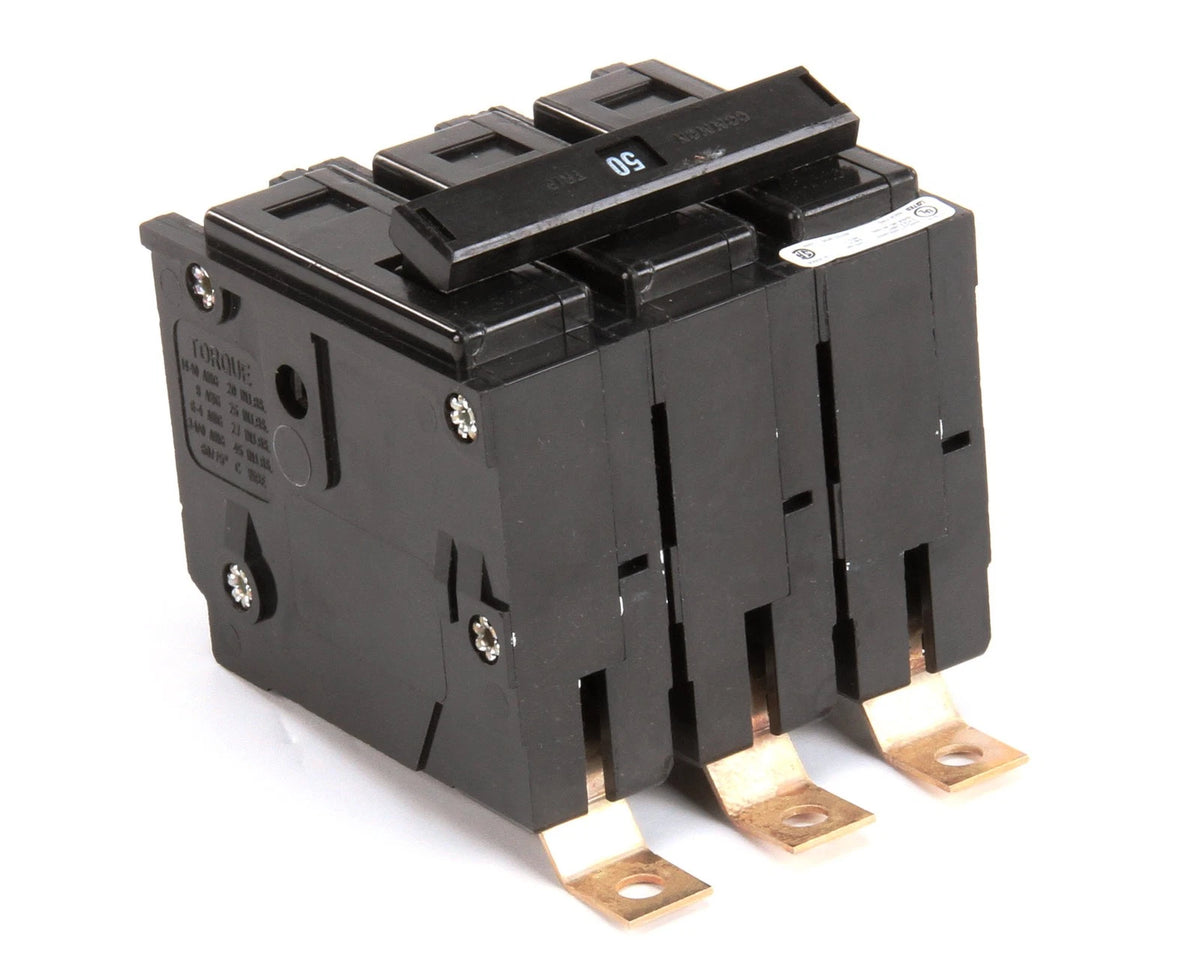

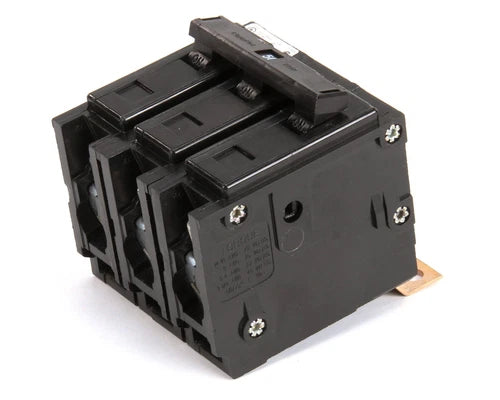

The Cutler-Hammer Manufacturing Co BAB3050H is a three-pole circuit breaker made for bolt-on mounting. This circuit breaker is rated for 240 VAC with a fifty amp amperage rating and an interrupt rating of 10 kA. It features a non-interchangeable trip type and accommodates wire sizes ranging from 14 to 4 AWG.

• Flexible power feed connection.
• Field mounting of accessories.
• Temperature rated to 40 degrees Celsius.

Product Highlights

This unit offers reliable performance in electrical systems and operates effectively at specified voltage and amperage ratings.

Product Information

Standard Information

• Brand: Cutler Hammer
• Country of Manufacture: United States

Technical Specifications

• Voltage Rating: 240 VAC
• Amperage Rating: 50 A
• Interrupt Rating: 10 kA
• Trip Type: Non-Interchangeable
• Number of Poles: 3
• Connection Type: Extended Tang Line/Box Lug Load
• Wire Size: 14 to 4 AWG
• Mounting Type: Bolt-On
• Temperature Rating: 40 deg C
• Dimensions: 3.8 x 3.2 x 4.9 inches
