Product Description

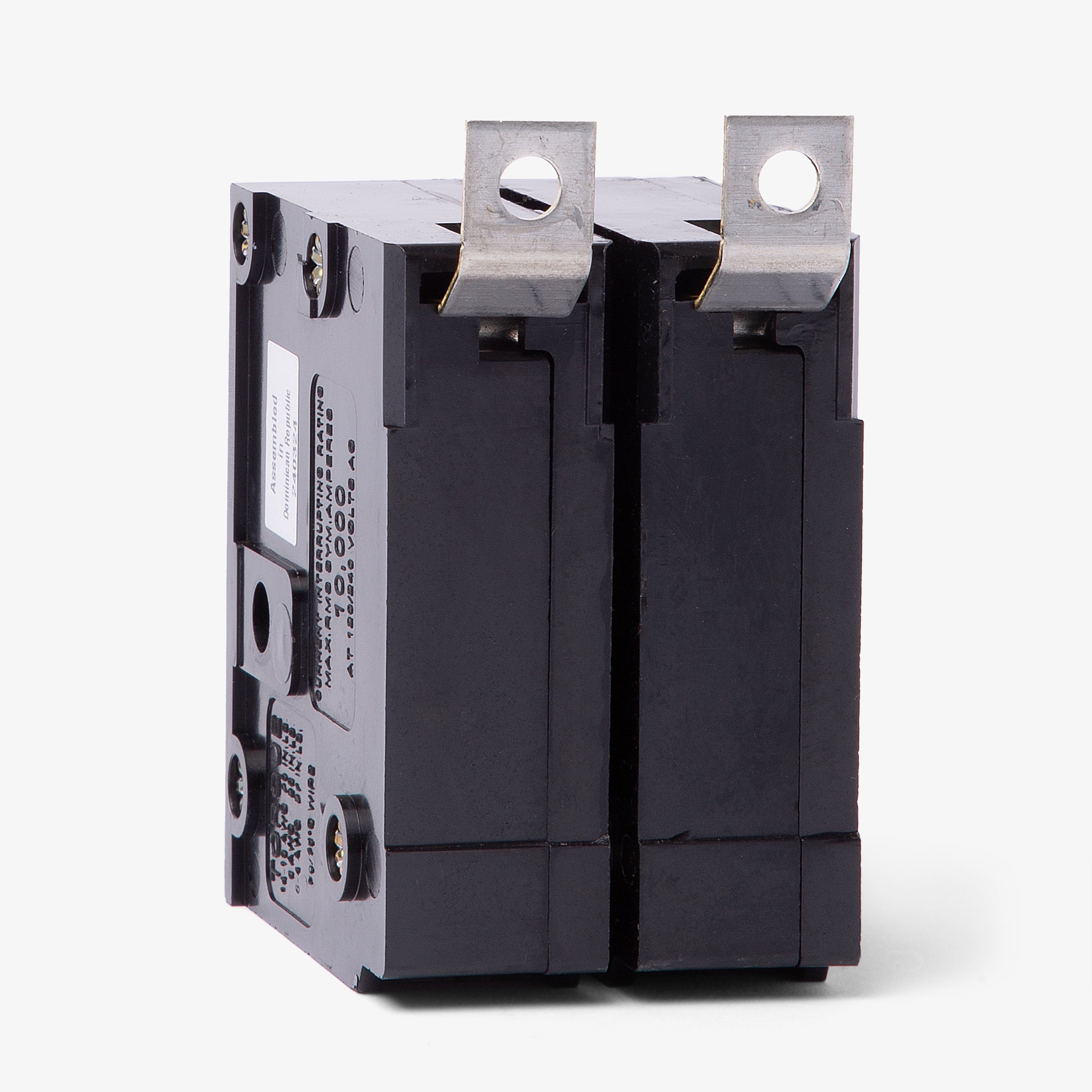

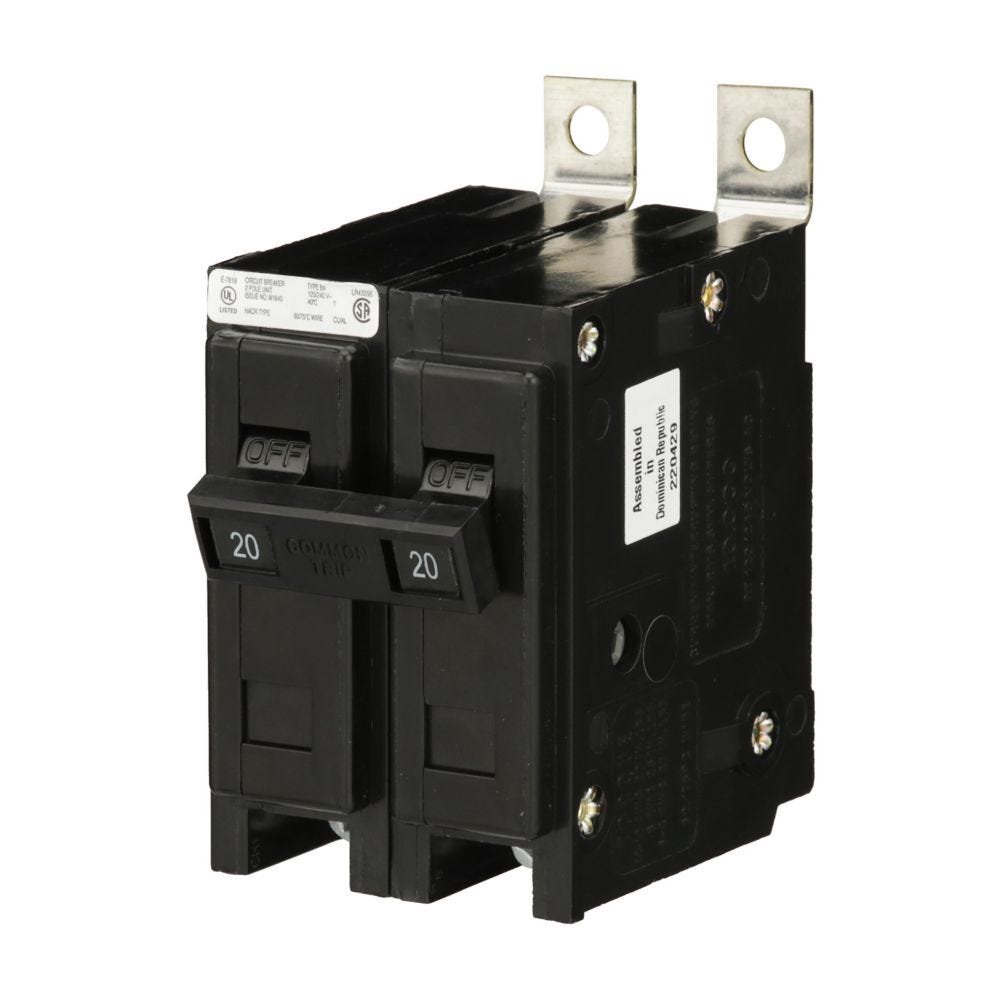

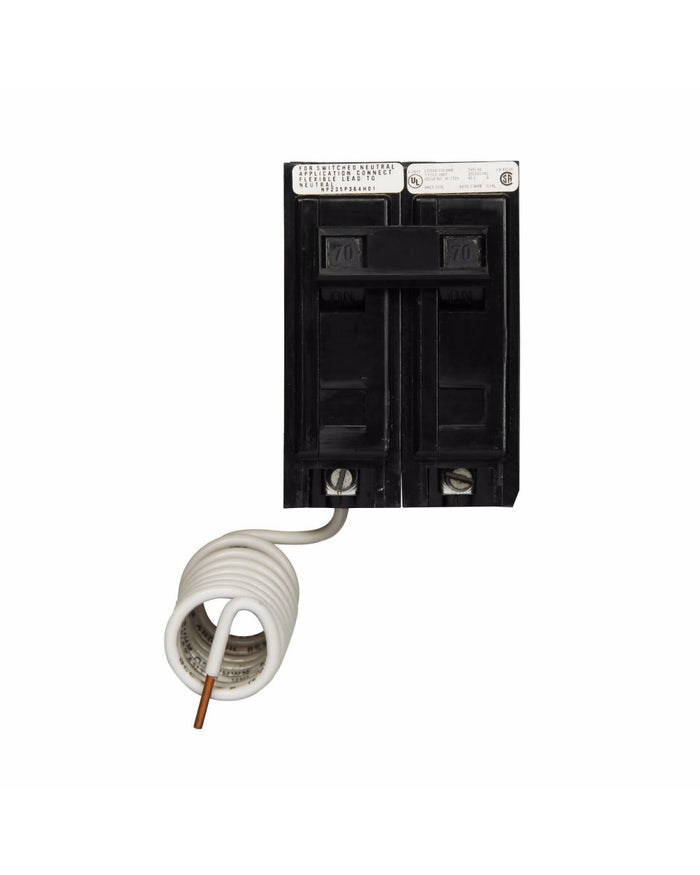

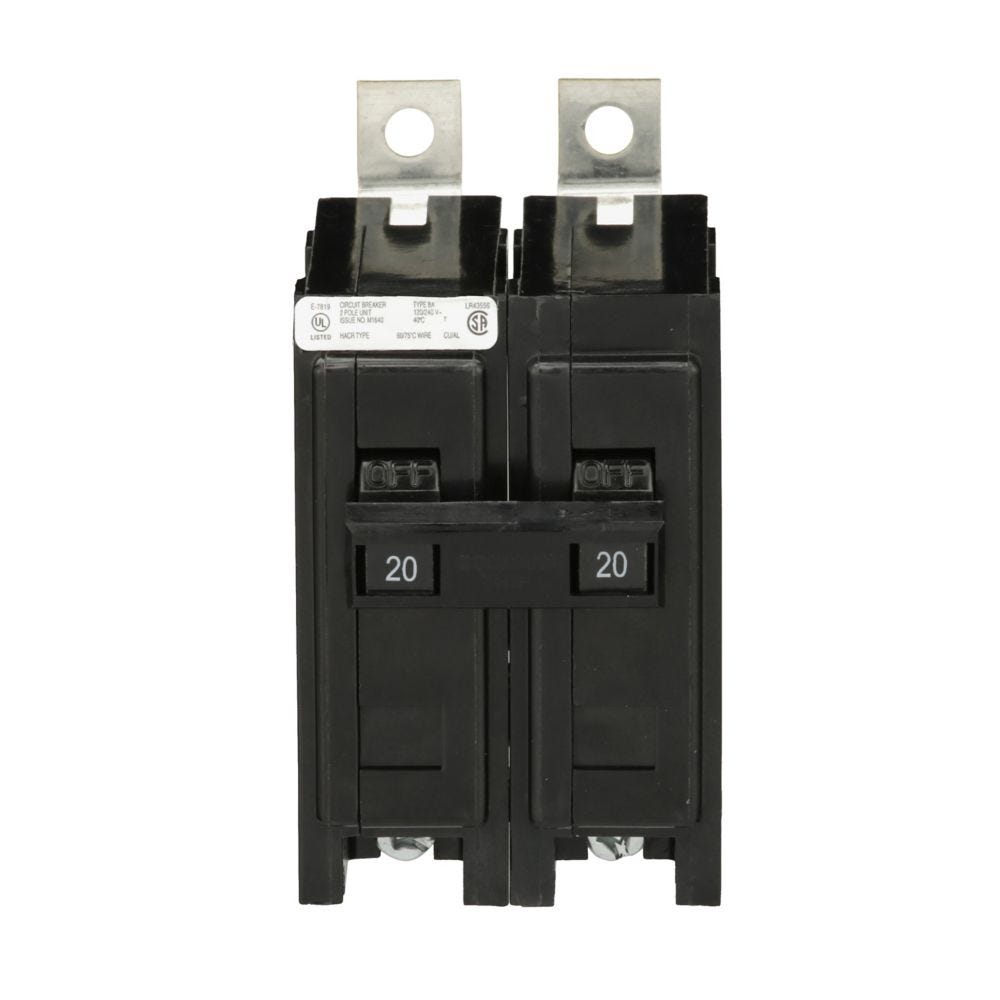

The CUTLER & HAMMER BAB2070 is a thermal magnetic circuit breaker. This Quicklag industrial thermal-magnetic circuit breaker features bolt-on mounting and is rated for 70 A. It is suitable for use in commercial to light industrial applications, providing overcurrent safety. HACR rated for air conditioning, heating, and refrigeration applications.
- Bolt-on mounting
- HACR rated
- 10 kAIC interrupt rating
Product Highlights
The BAB2070 circuit breaker ensures a direct power feed and energy efficiency, and is a reliable choice for various applications.
Product Information
Standard Information
-
Brand: CUTLER & HAMMER
-
Manufacturer Part Number: BAB2070
-
Country of Origin: United States
Technical Specifications
-
Product Name: Eaton BAB thermal magnetic circuit breaker
-
Catalog Number: BAB2070
-
UPC: 786679302705
-
Product Length/Depth: 3.6 in
-
Product Height: 3.7 in
-
Product Width: 2.2 in
-
Catalog Notes: HACR rated
-
Product Type: Thermal magnetic circuit breakers
-
Circuit breaker type: BAB
-
Mounting Method: Bolt-on
-
Number of poles: Two-pole
-
Type: Quicklag industrial thermal-magnetic circuit breaker
-
Amperage Rating: 70 A
-
Interrupt rating: 10 kAIC
-
Trip Type: Non-Interchangeable
-
Voltage rating: 120/240 V
-
Special features: Bolt-on mounting
-
Manufacturer: Eaton Cutler-Hammer
-
Item model number: CHBAB2070
-
Voltage: 120/240VAC, 24VDC, 48VDC, 62.5VDC, 80VDC
-
Wattage: 8400 watts
-
Item Package Quantity: 1
-
Mounting Type: Bolt-On Mount
-
Switch Style: Electromechanical
-
Included Components: CHBAB2070
-
Batteries Included?: No
-
Batteries Required?: No
-
Amperage: 70 Amp
-
Applications: Generation - Conventional Energy - Conventional EnergyGeneration - Renewable Energy - Alternative EnergyOtherMarine Vessels and Equipment - Marine Vessels and Equipment - OtherDatacenters - IT Space: CI and Hyper ConvergedResidential Bldgs & Facilities - Residential Bldgs & Facilities - Other
-
Number of Poles: 2 Pole
-
Trip: Fixed Trip
-
Approval: UL, CSA. CE
-
Mounting: Bolt-on
-
Application: Commercial
-
Wire Size: 8 To 1/0 AWG (Aluminum/Copper, Load)
-

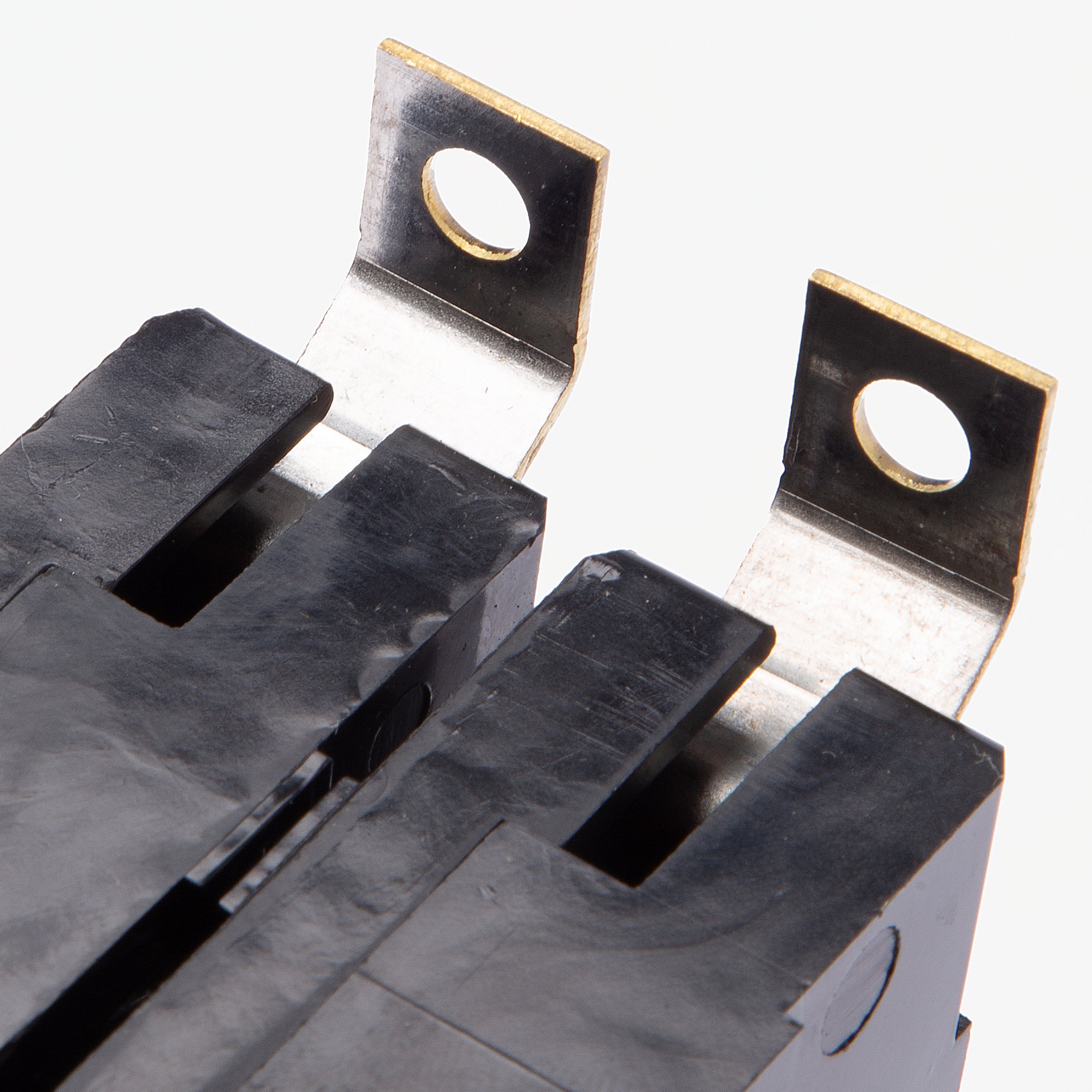

Terminal: Extended Tang Line Terminal, Box Lug Load Terminal Terminal
-
Model: BAB BA, QBHW
-
Brand: Quicklag[R]
-
Poles: 2
-
AIC Rating: 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 5kA @ 62.5VDC, 5kA @ 80VDC
-
Mounting Style: Bolt-On
-
Terminal Type: Box Lugs
-
For Use With: Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards
-
Trip Technology: Thermal Magnetic
-
Trip Function Code: LI
-
Trip Function: Long-Time, Instantaneous
-
Trip Adjustability: Fixed
-
Wire Gauge: 8-1/0 AWG (Al/Cu)
-
Max Wire: 1/0 AWG
-
Min Wire: 8 AWG
-
Available Options: Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment
-
Accessories: Extended Tang Line Terminal
-
Standards: HACR, UL 489, CSA C22.2 No. 5
-
Temp Rating: 40C
