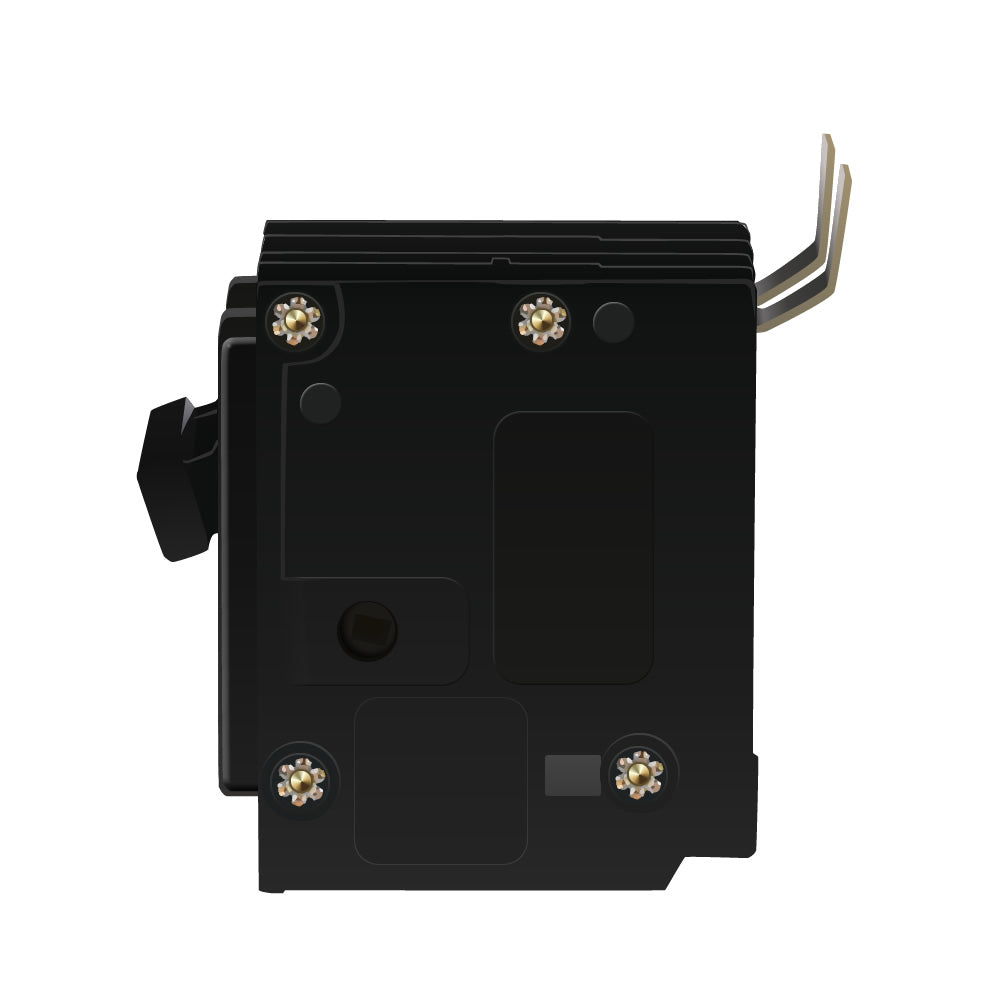

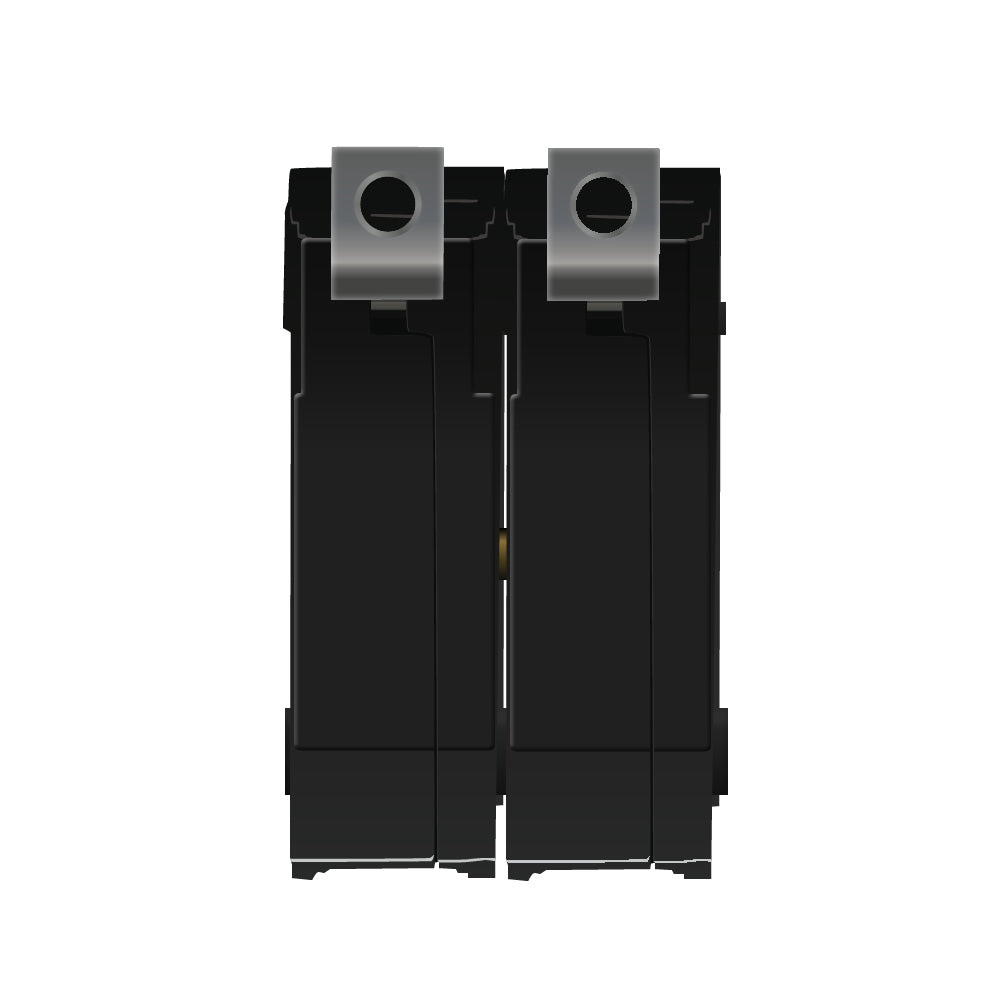

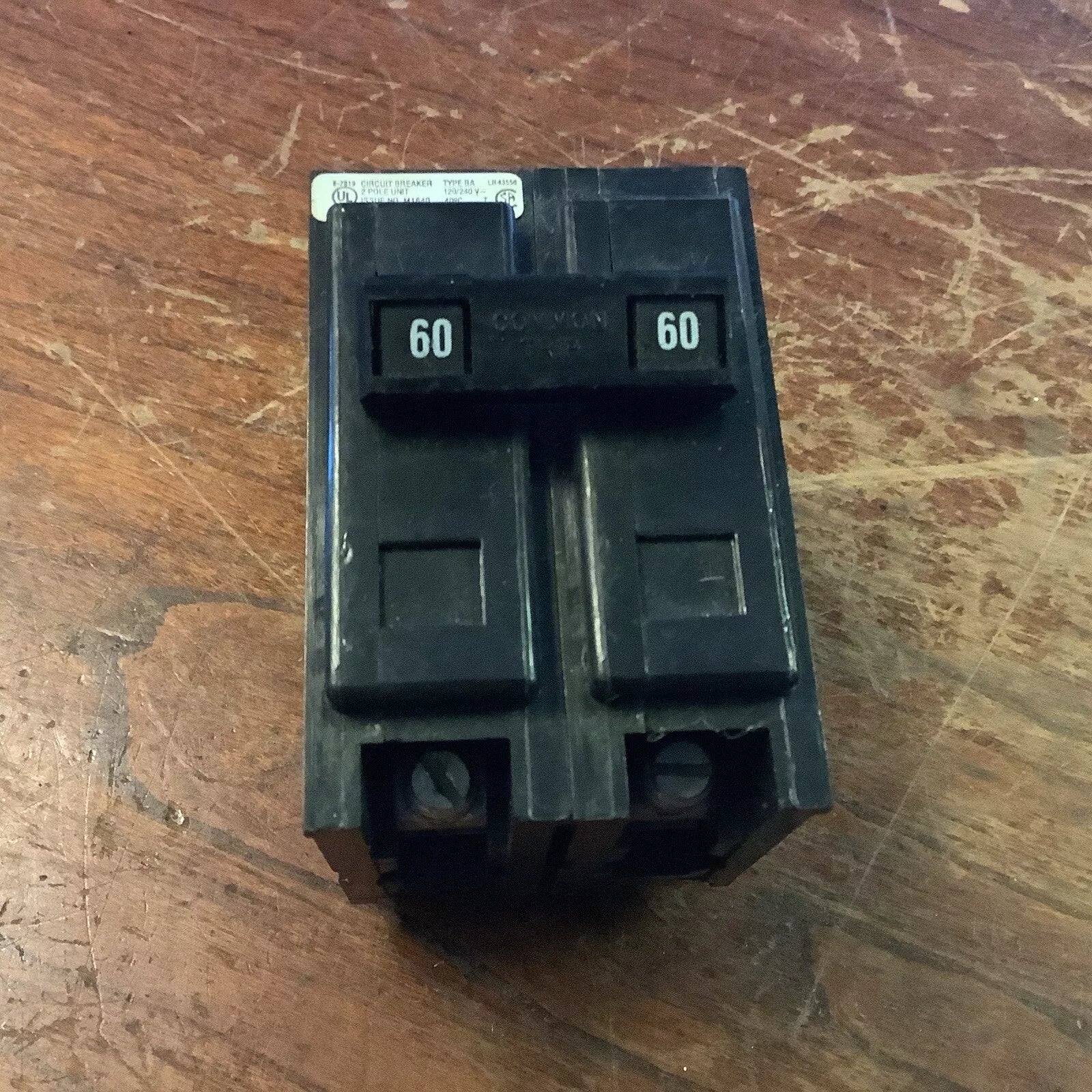

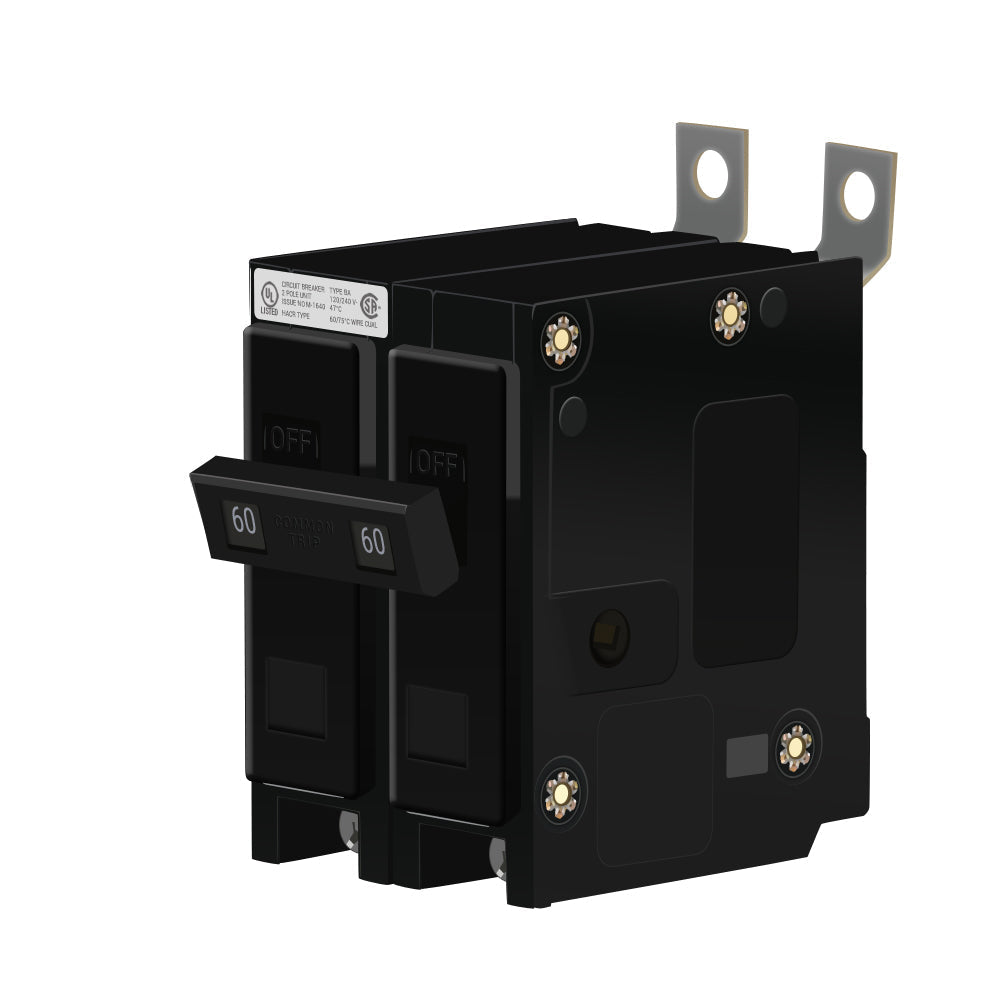

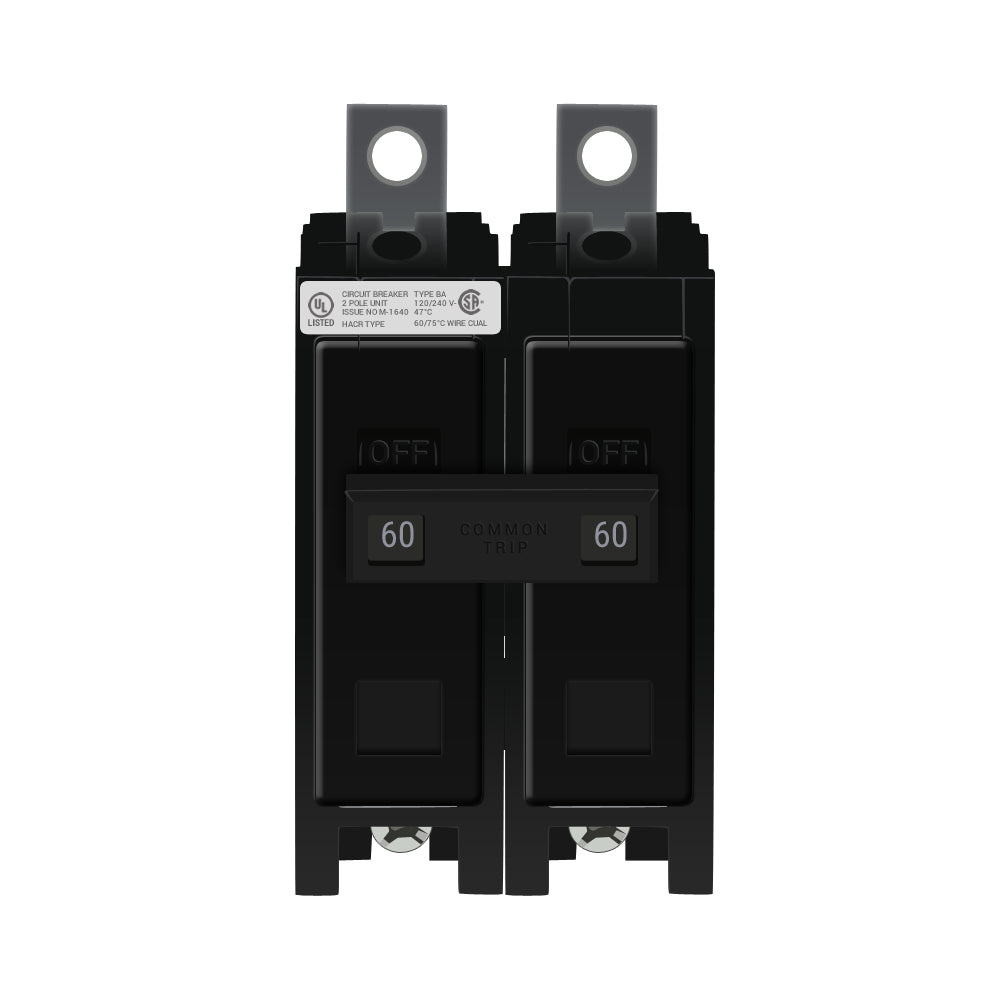

Cutler-Hammer BAB2060 Circuit Breaker 60A Bolt-on

Product Description

The Cutler-Hammer Manufacturing Co BAB2060 is a 2-pole circuit breaker rated for sixty amps. It is designed for bolt-on installation in panelboards. This circuit breaker is suitable for both residential and commercial electrical systems operating at 120/240 volts. The thermal-magnetic protection feature helps safeguard against overloads and short circuits.

• Two-pole design for dual functionality.
• Interrupting capacity of ten thousand and twenty-two thousand amperes.
• UL 489 listed and CSA approved for safety.

Product Highlights

The Cutler-Hammer BAB2060 circuit breaker is a reliable choice for effective circuit protection.

Product Information

Standard Information

• Brand: Cutler-Hammer
• Mounting Style: Bolt-On

Technical Specifications

• Type: 60A Bolt-on 2-pole Circuit Breaker
• Maximum Amperage: 60 A
• Voltage: 120/240V
• Model: BAB2060
• Number of Poles: 2
• Country of Manufacture: Dominican Republic
• Interrupting Capacity: 10,000/22,000 Amperes
• Dimensions (H x W x D): 2.31 inches x 2.00 inches x 2.37 inches
• HACR Rated: Yes
• Standards: UL Listed and CSA Certified
