Cutler & Hammer BAB2045 C-H BAB2045 45A Bolt on 2P BAB2045

Product Description

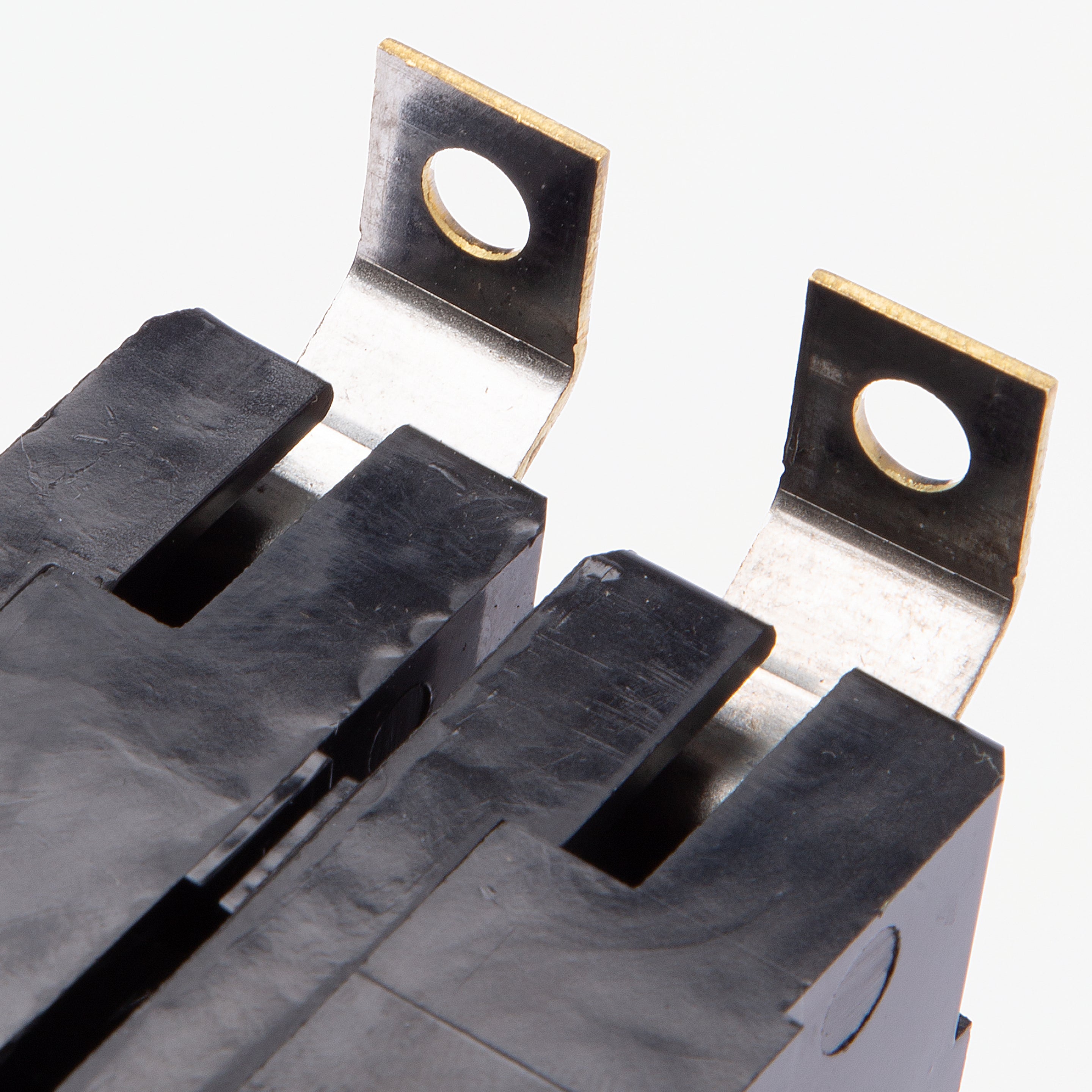

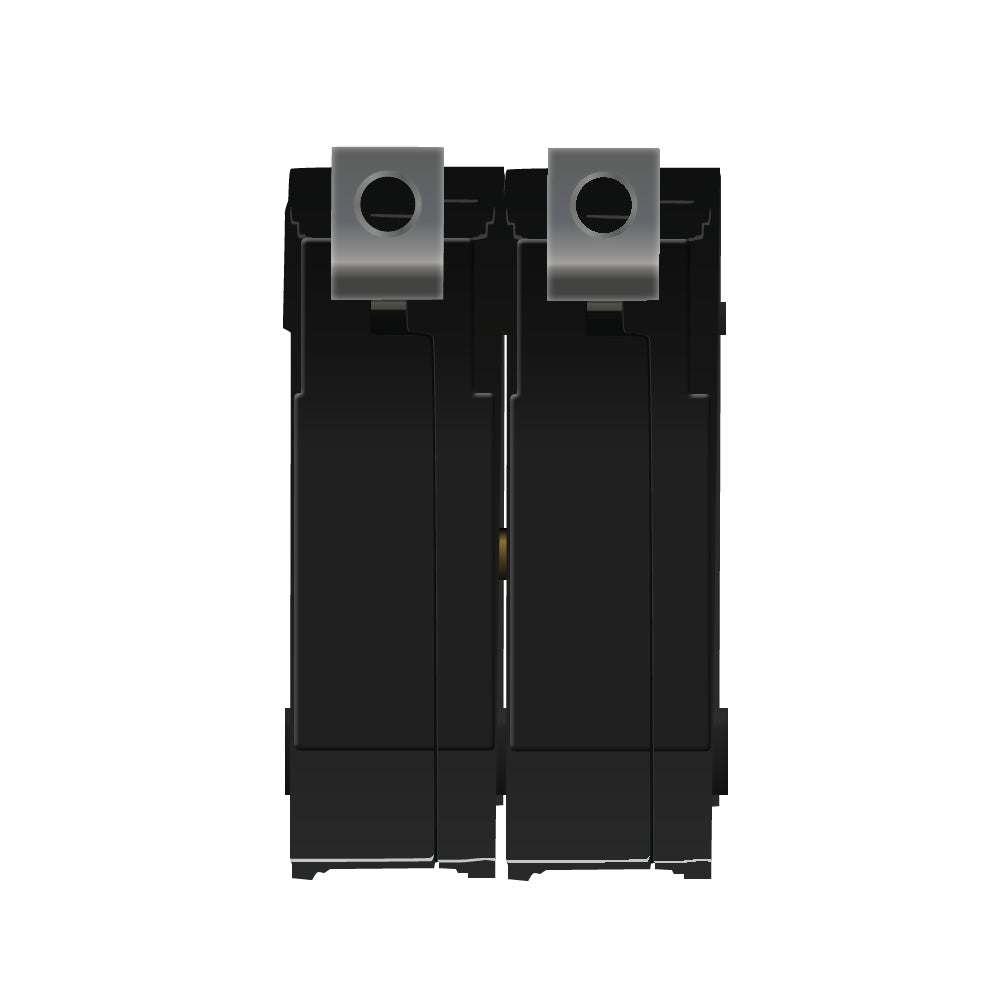

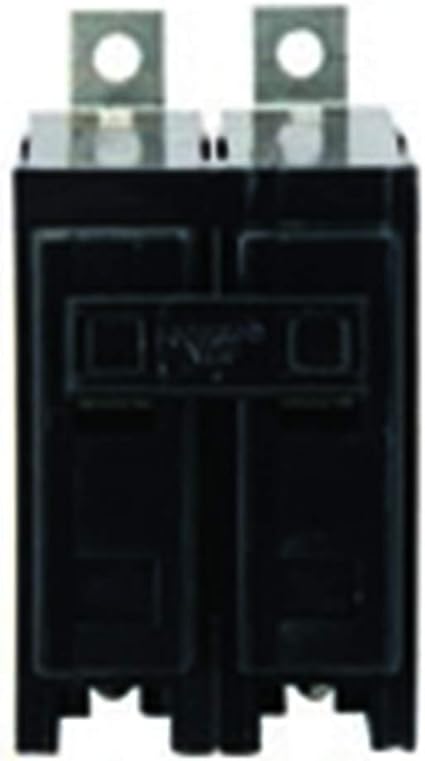

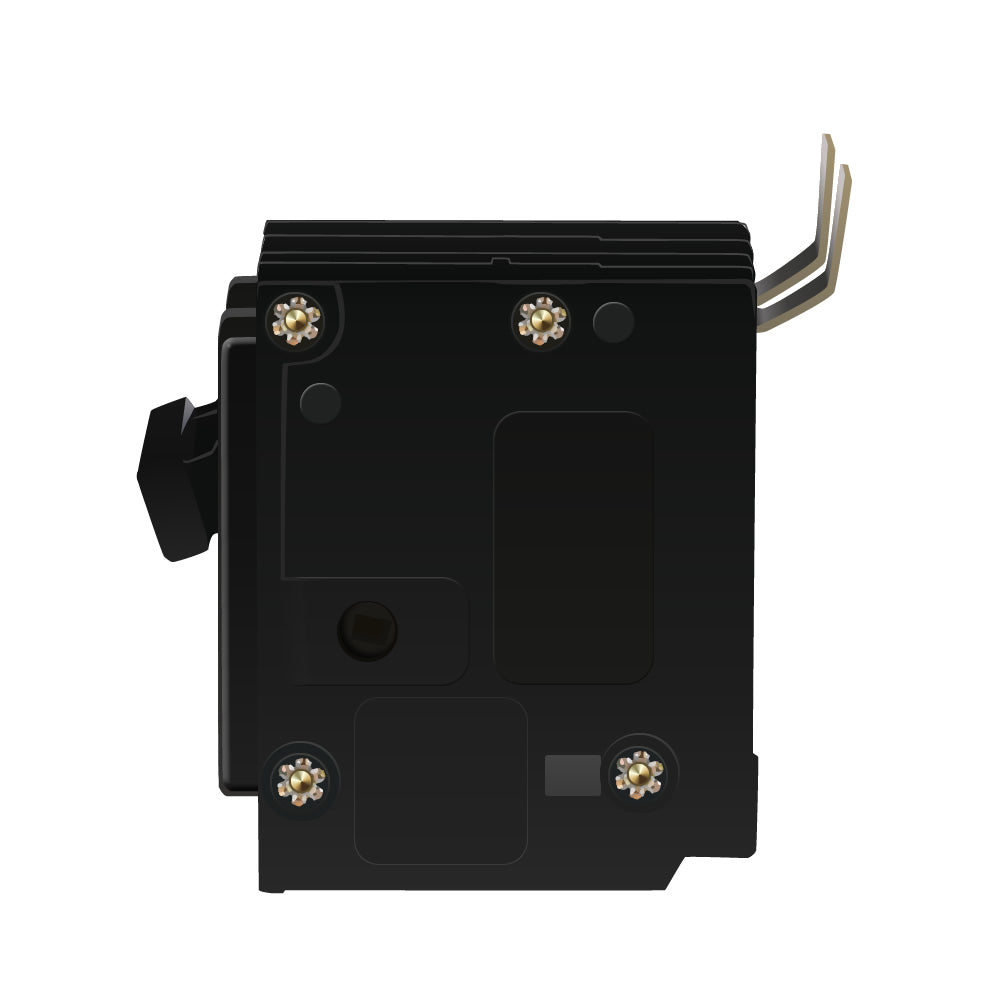

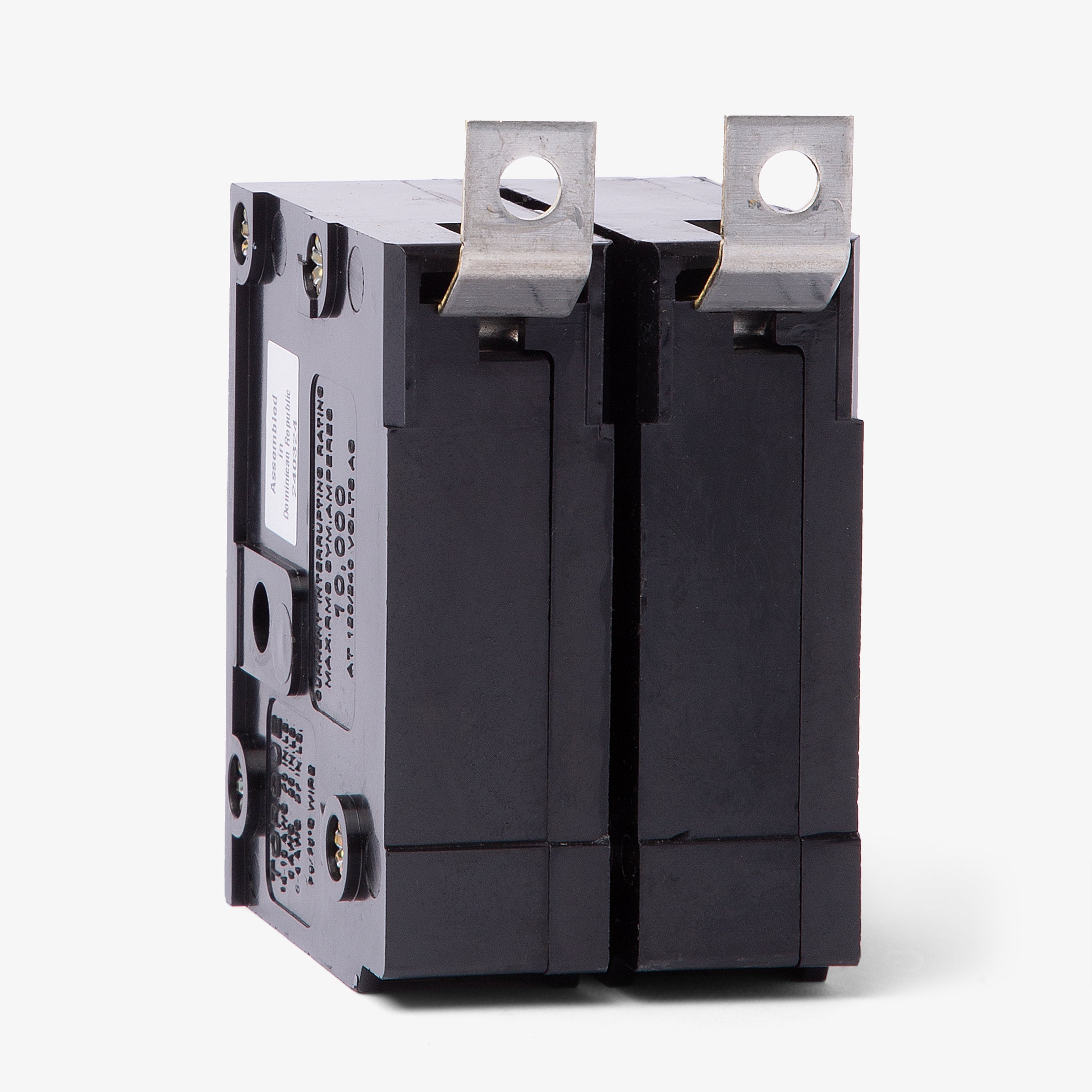

The CUTLER & HAMMER BAB2045 is an Eaton Cutler-Hammer Bolt-On, BAB type, thermal-magnetic circuit breaker, offering protection for panelboards. It is engineered for commercial environments, providing 10kAIC interrupting capacity at 120/240V. This two-pole Quicklag unit mounts securely into Eaton Pow-R-Line, Westinghouse, and legacy Cutler-Hammer panelboards.

• Bolt-On Mounting Type
• 2 Pole
• 45 Amp

Product Highlights

The BAB2045 is suitable for Eaton, Cutler-Hammer, Bryant, Westinghouse, Challenger, and Novaline panel boards. It is CSA Approved and UL Listed.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: BAB2045
• Country of Origin: United States

Technical Specifications

• Brand: Eaton / Cutler-Hammer
• Current Rating: 45 Amps
• Circuit Breaker Type: Standard
• Mounting Type: Bolt-On
• Number Of Poles: 2
• Voltage: 120/240V
• Model Number: BAB2045
• Family: BAB Bolt-on miniature Quicklag breaker
• Amperage: 45A
• Connection: Bolt-On
• Interrupting Capacity: 10,000/22,000 Amperes
• Interrupt Rating: 10 kAIC
• Type: Bolt-On
• Series: BAB
• Part Number: BAB2045
• AIC Rating: 10kA @ 120/240VAC, 5kA @ 24VDC, 5kA @ 48VDC, 3.8kA @ 62.5VDC
• Phase: 1
• Terminal Type: Box Lugs
• For Use With: Eaton Pow-R-Line Panelboards, Westinghouse Panelboards, Cutler-Hammer Panelboards
• Trip Technology: Thermal Magnetic
• Trip Function Code: LI
• Trip Function: Long-Time, Instantaneous
• Trip Adjustability: Fixed Thermal, Fixed Magnetic
• Wire Gauge: 14-4 AWG (Cu/Al)
• Max Wire: 4 AWG
• Min Wire: 14 AWG
• Available Options: Shunt Trip, Auxiliary Switch, Alarm Switch
• Standards: HACR, UL 489
• Approval: CSA, UL
• Temp Rating: 40C
• Country of Origin: United States
• Poles: 2
