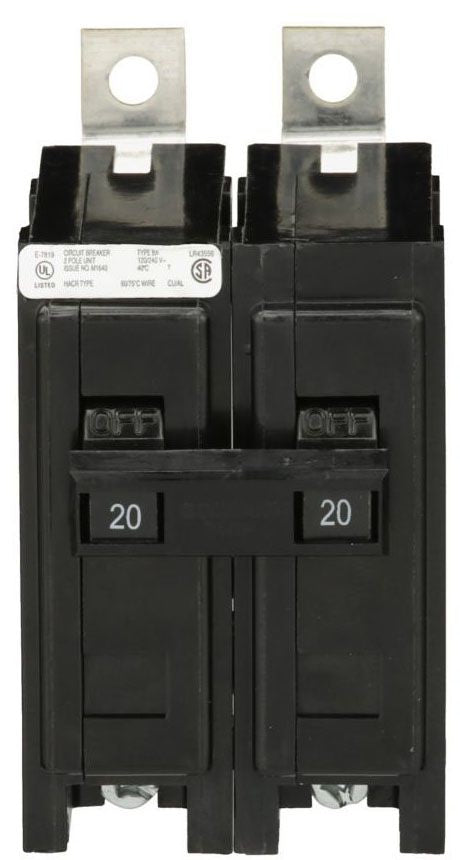

Cutler-Hammer BAB2020 Type BAB Molded Case Industrial Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA, 2 Poles

Product Description

The Cutler-Hammer BAB2020 is a miniature circuit breaker designed for use in electrical systems. It has an amperage rating of twenty amps and operates on a voltage rating of 120/240 volts. This circuit breaker features a thermal magnetic trip mechanism that provides reliable protection for wiring and connected equipment.

• Easy bolt-on installation for circuit panelboards
• Two-pole design suitable for typical residential and commercial applications
• Interrupt rating of ten kA for enhanced safety

Product Highlights

This circuit breaker is suitable for various applications, including those requiring circuit protection in residential and commercial electrical panels.

Product Information

Standard Information

• Manufacturer: Cutler-Hammer
• Type: Thermal magnetic circuit breaker

Technical Specifications

• MPN: BAB2020
• Amperage Rating: 20 A
• Voltage Rating: 120/240 V
• Number of Poles: Two-pole
• Interrupt Rating: 10 kAIC
• Dimensions: 6-1/4 in H x 3-1/2 in W x 2-1/4 in D
• Mounting Type: Bolt-On
• Application: For panelboards
• Standard & Approvals: UL Listed, CSA Certified
