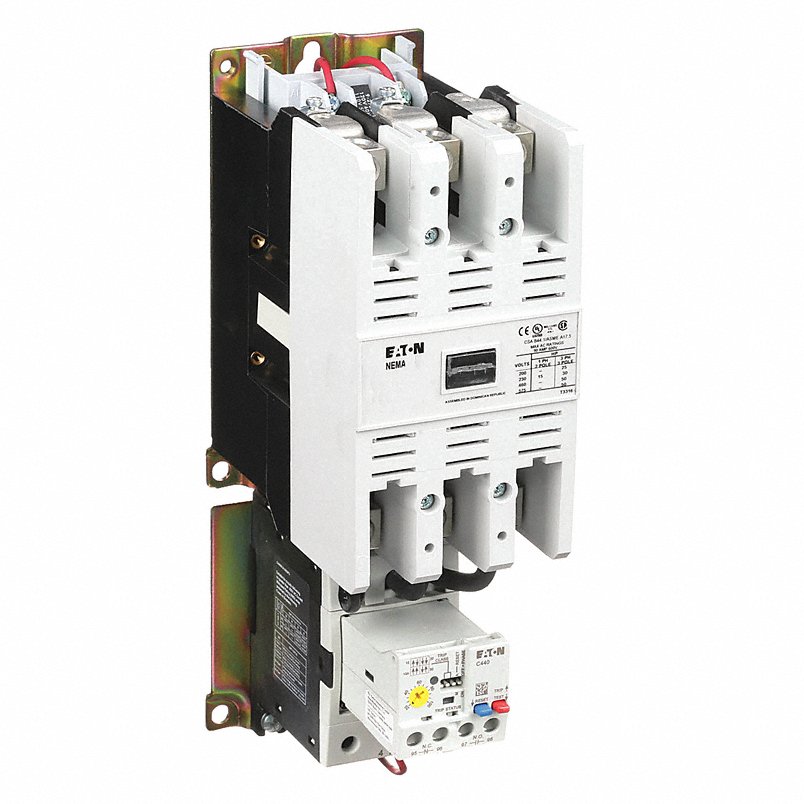

Cutler-Hammer AN19KN0A5E100 20-100A STR SZ3

Product Description

The Cutler-Hammer AN19KN0A5E100 is a motor control starter designed for use with various electrical assemblies. This device operates at a range of twenty to one hundred amps and features a full voltage non-reversing mechanism. The NEMA Size 3 open enclosure allows for horizontal mounting in different electrical applications. It is equipped with a C440 electronic overload relay, making it suitable for various operational needs.

• Full voltage non-reversing operation
• NEMA Size 3 enclosure for versatile mounting
• Compatible with 120/60 or 110/50 coil voltages

Product Highlights

This motor starter is ideal for use in panels and electrical assemblies. Its standard feature set includes options for overload protection and easy installation.

Product Information

Standard Information

• Manufacturer: Cutler-Hammer
• Family Group: Motor Control

Technical Specifications

• Type: Motor control starter
• Weight: 11 lbs
• Dimensions: 5.92 inches x 4.09 inches x 11.4 inches
• Coil Voltage: 120/60 or 110/50
• NEMA Frame Size: NEMA Size 3
• Standard: NEMA; CSA; UL; CE; RoHS Compliant
• Application: Electrical Assemblies; Panels
• Special Features: With C440 EOLR standard feature set; SEL reset; SEL class (10A; 10; 20; 30)
