Cutler & Hammer 10250T221LLP06 30.5 mm; Hvy Dty

Product Description

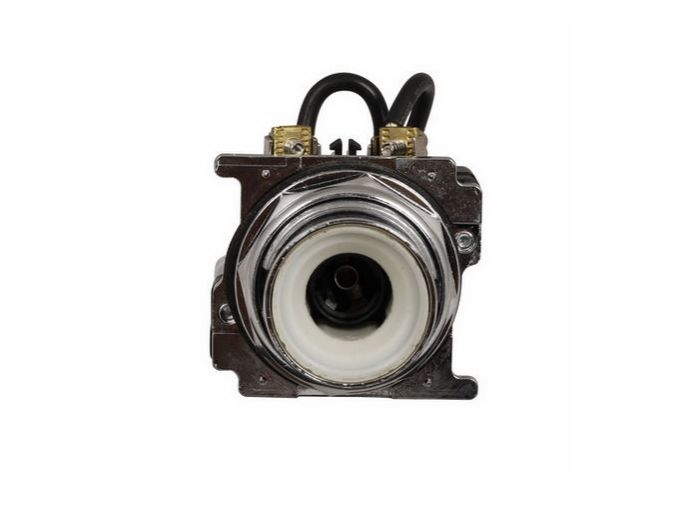

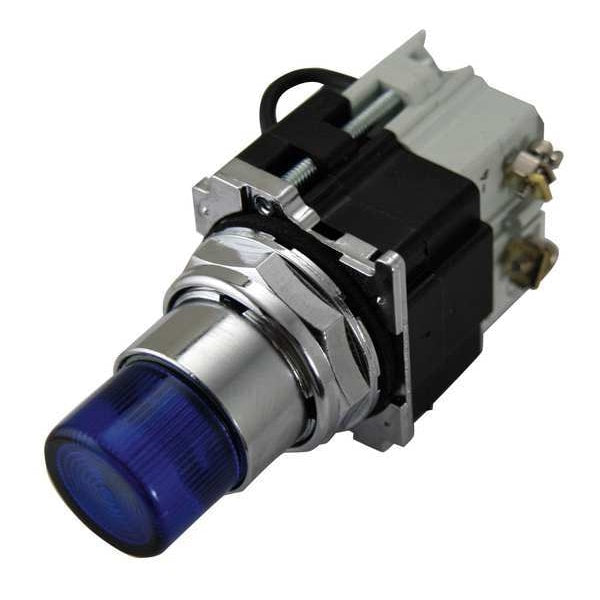

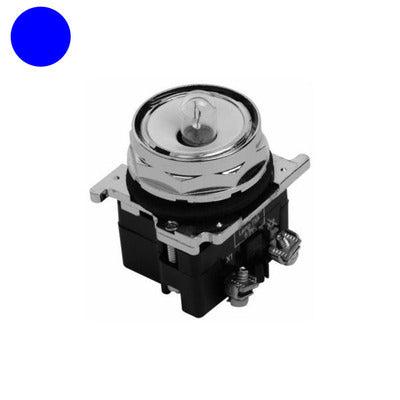

The Cutler & Hammer 10250T221LLP06 is a heavy-duty watertight and oiltight indicating light. This 30.5 mm pushbutton features a PresTest function, LED, and transformer. It conforms to NEMA 3, 3R, 4, 4X, 12, and 13 standards. It has a zinc die cast construction with chrome plated housing and mounting nut.

• 30.5mm Mounting Size
• Incandescent or LED Types
• Standard Screw Terminals

Product Highlights

The 10250T series pilot devices include grounding nibs to enhance the ground connection. Easy to assemble with heavy-duty oiltight design.

Product Information

Standard Information

• Brand: CUTLER & HAMMER
• Manufacturer Part Number: 10250T221LLP06
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: 10250T221LLP06
• Manufacturer: Eaton
• Product Series: 10250T
• Family Series: Eaton Pilot Lights, 10250T Series
• Description: Eaton 10250T pushbutton, Heavy-duty watertight and oiltight Indicating Light, PresTest, LED, Transformer, NEMA 3, 3R, 4, 4X, 12, 13, Blue, Plastic, 120 V
• Push-to-Test: Yes
• Mounting: 30 mm
• Lamp Type: LED
• Lens/Button Shape: Round Extended
• Lens Color: Blue
• Bezel: Metal Round
• Nominal Lamp Voltage: 120 VAC
• Protection Rating: IP65
• Terminal Type: Screw
• NEMA Rating: NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
• Approvals: CE, CSA, UL
• Light Unit Type: LED, transformer
• Type: Pushbutton
• Light Unit Voltage: 120 Vac
• Rating: NEMA 3, 3R, 4, 4X, 12, 13
• Lens Material: Plastic
• Actuator: PresTest
• Compliances: CE Marked
• Certifications: UL Listed
• Primary brand: Eaton
• Secondary brand: Cutler-Hammer
• Main function: Pilot light
• Product series / family name: 10250 series
• Functions: 30mm pilot light/lamp transformer integral LED push-to-test function
• Supply voltage (AC): 120Vac 6Vac
• Supply voltage (DC): 6Vdc
• Light Color: Blue
• Shape: Round
• Diameter: 30.5mm (door punch)
• Connection type: with pressure connections
• Degree of protection: IP65 NEMA 3 NEMA 3R NEMA 4 NEMA 4X NEMA 12 NEMA 13
• Material: Plastic (lens) Zinc die cast (body) Chrome-plated (housing)
• Manufacturer product status: Commercialized
• Compliant with standard(s): CE EN60947-5-1 EN60947-5-5 UL508 CSA
• Alternate Mfr Part Number: 10250T221LLP06
• Brand: Eaton - Cutler Hammer
• Series: 10250T Series
• UPC Code: 782114722404
• Voltage: 120V AC
• Terminal Connection: Saddle Clamp
• Lens Type: Fresnel
• Lamp Module Type: Transformer
• Basic Material: Metal
• Standards: CE, CSA, UL Listed
• Lamp Voltage: 6V AC/DC
• IP Rating: IP65
• Replacement Lamps: 39R109
• Includes: Light Module, Operator
• Body Material: Metal
• Voltage Rating - Maximum: 120 V AC/DC
• Includes Lens: Lens Included
• NEMA Enclosure Rating: 12, 13, 3, 3R, 4, 4X
• Includes Push-To-Test: Push-To-Test Included
• Lamp Color: Blue
• Lamp Voltage - Maximum: 120 V AC
• Includes Lamp Module: Lamp Module Included
• Body Finish: Chrome Plated
• Resistance Properties: Oil and Grease Resistant, Watertight
• Panel Cutout Diameter: 30 mm
• Size: 30 mm
