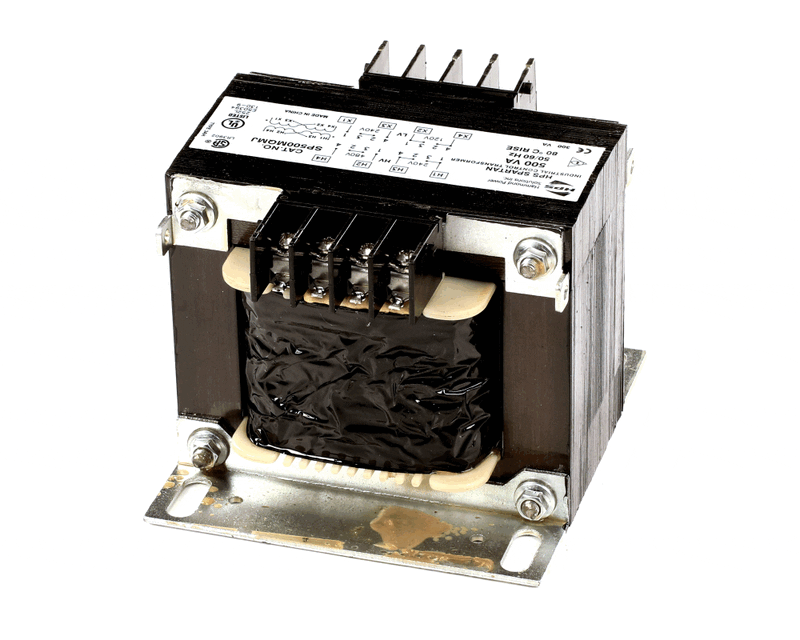

Curtis 3375000202 Transformer 500VA 240/480V to 120V

Product Description

The CURTIS 3375000202 is a step-down power transformer designed to reduce incoming line voltage to a usable secondary voltage for commercial appliance control circuits and low-voltage systems. With a 500 VA power rating, a dual primary input of 240 or 480 volts, and a 120-volt secondary output, this transformer provides stable power conversion in demanding commercial environments. It is a direct replacement part for Curtis commercial appliances and is typically installed by licensed electricians or qualified service technicians during equipment repair or refurbishment.

This transformer is suited for use in commercial appliance applications where primary line voltages vary between 240 and 480 volts and a regulated 120-volt secondary is required. The 500 VA capacity supports control circuit loads typical of Curtis commercial equipment. It is intended for indoor commercial service environments and is replaced during routine electrical component servicing or equipment overhaul.

Key Features

• 500 VA power rating supports commercial control circuit loads
• Dual primary voltage of 240/480 volts allows flexible installation across varying supply voltages
• 120-volt secondary output suitable for standard control and low-voltage circuits
• OEM Curtis replacement part ensuring proper fit and electrical compatibility
• Step-down design reduces line voltage to a safe, usable secondary level

Compatibility

Designed as an OEM-style replacement transformer for Curtis commercial appliances requiring a 500 VA, 240/480-volt primary to 120-volt secondary power transformer.

Installation Notes

Installation should be performed by a licensed electrician or qualified service technician in accordance with the National Electrical Code (NEC). Disconnect and lock out all power to the equipment before removing the existing transformer or making any wiring connections. Verify that the primary tap selection matches the available supply voltage before energizing. Inspect all terminal connections for proper seating and secure fastening before restoring power.

Technical Specifications

• Power Rating: 500 VA
• Primary Voltage: 240/480 volts
• Secondary Voltage: 120 volts

Standard Information

• Brand: CURTIS
• Manufacturer Part Number: 3375000202
