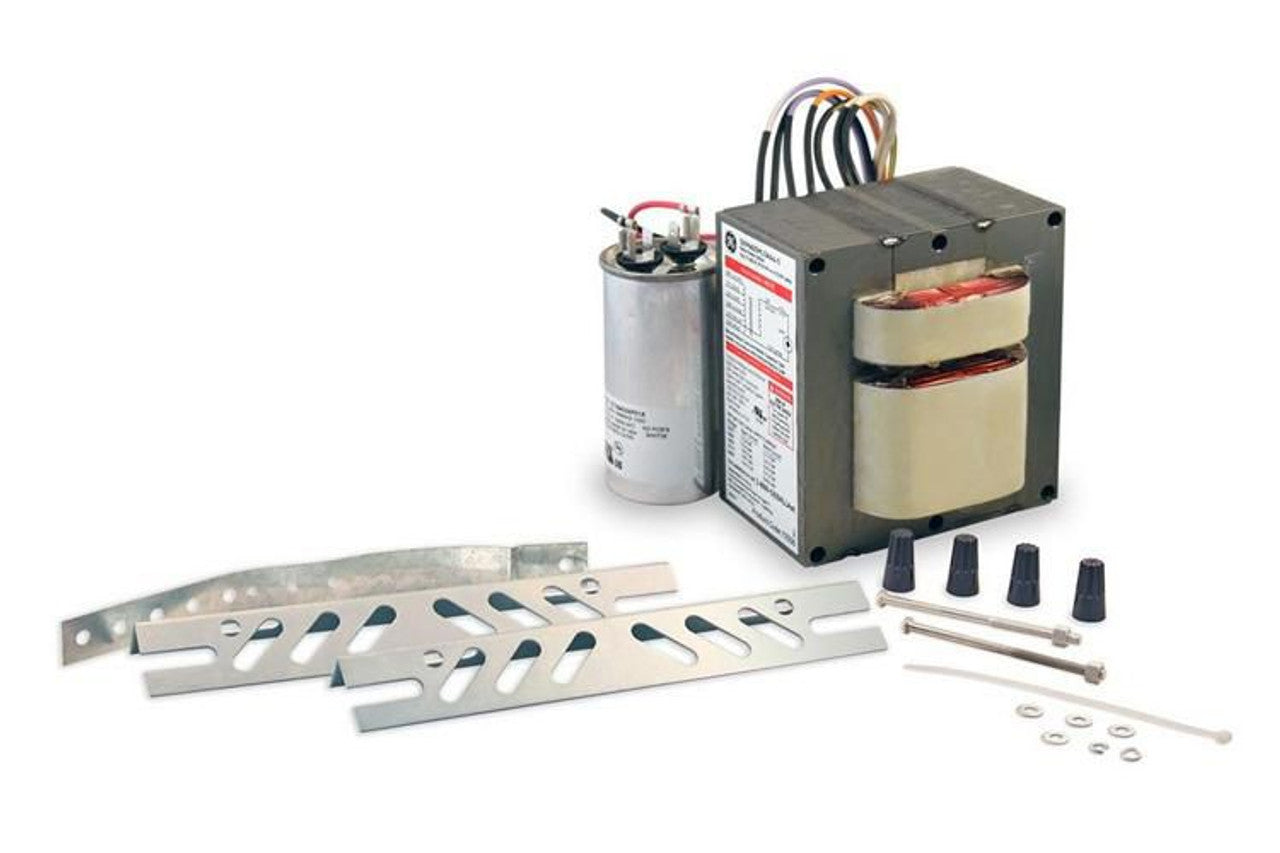

Current Lighting GEM250ML5AC3-5-UNV Magnetic Metal Halide Ballast

Product Description

The Current Lighting GEM250ML5AC3-5-UNV is a magnetic core and coil ballast suitable for metal halide lamps. Designed to operate with a voltage range from one hundred twenty to four hundred eighty volts, this ballast supports a single two hundred fifty watt metal halide lamp. It employs a pulse starting method to ignite the lamp. Features include a CWA circuit and normal ballast factor.

• Ballast type: Magnetic core and coil
• Compatible with metal halide lamps
• Input voltage range: 120-480V

Product Highlights

This ballast is ideal for applications requiring reliable lighting with metal halide lamps.

Product Information

Standard Information

• Brand: Current Lighting
• Manufacturer Part Number: GEM250ML5AC3-5-UNV

Technical Specifications

• Ballast Type: Magnetic Core and Coil Ballast
• Lamp Type: Metal Halide
• Lamp Watts: 250W
• Number of Lamps: 1
• Lamp Starting Method: Pulse
• Circuit: CWA
• Input Voltage: 120-480V
• Power Factor: 0.90
• Ballast Factor: Normal
• ANSI Code: H37/M58
• Minimum Operating Temperature: -22 degrees F
• Dimensions: 4 x 2.8 inches
• Enclosure: Metal
