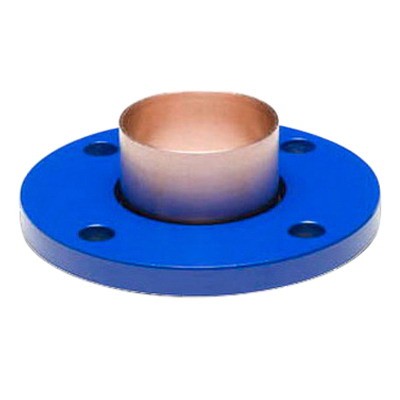

CTS BF004 Powder-Coated Plate Steel Conversion Companion Flange Adapter 4 inch

Product Description

The CTS Flanges BF004 is a copper conversion companion flange adapter with a nominal size of four inches. This product features a solder joint connection and is constructed from plate steel with a powder-coated finish. It meets the 150 lb pressure class and is rated for a working pressure of four hundred fifty PSI. The temperature range is from negative sixty-six to two hundred seventy-two degrees Fahrenheit. This product meets ANSI B 16.5 specifications for drilling and is manufactured to ASME B 16.22-95 standards.

• Nominal Size: 4 inch
• Pressure Rating: 450 PSI
• Material: Plate Steel

Product Highlights

This flange adapter is suitable for plumbing applications where a copper conversion is needed. It is designed for easy installation and provides reliable performance in various conditions.

Product Information

Standard Information

• Brand: CTS Flanges
• MPN: BF004

Technical Specifications

• Flange Type: Companion Flange
• Material: Plated Steel
• Nominal Size: 4 inch
• Pressure Class: 150#
• Finish: Powder Coated
• Inner Diameter: 3.84 inch
• Outer Diameter: 6.2 inch
• Temperature Range: -66 to 272 Deg F Service
• Standards: Drilling to Match ANSI B 16.5 Specifications, Manufactured to ASME B 16.22-95
