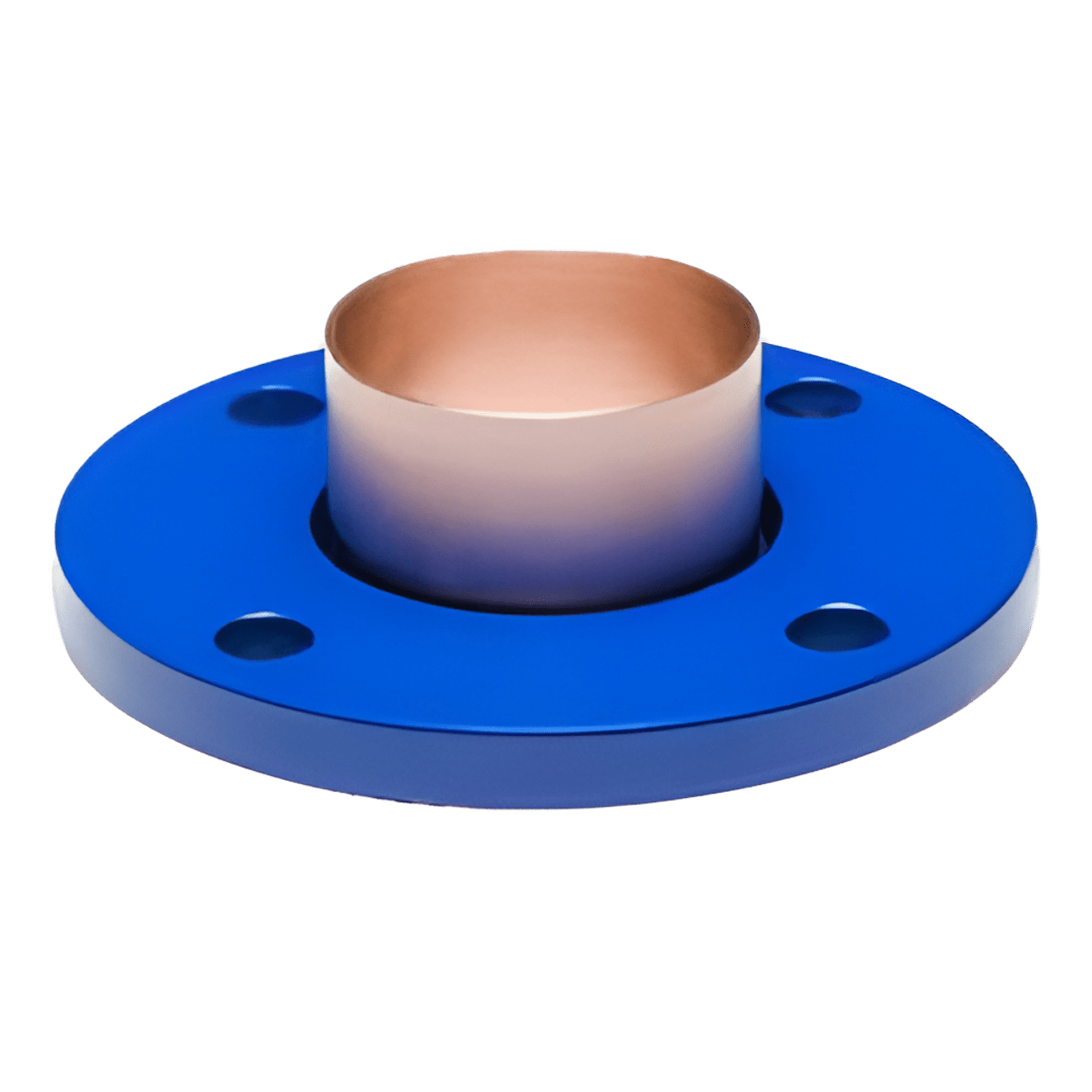

CTS BF002 CTS 150# Powder-Coated Plate Steel Copper Conversion Companion Flange Adapter, 2 inch CTS, Solder Joint

Product Description

The CTS BF002 is a copper conversion companion flange adapter designed for plumbing applications. This component is ideal for creating secure solder joints in pipelines. The flange is constructed from plated steel with a powder-coated finish for durability. The nominal size is two inches, making it suitable for various plumbing needs.

• Compatible with ANSI B 16.5 and ASME B 16.22 standards.
• Pressure rating of up to 450 PSI at atmospheric conditions.
• Temperature range of -66 to 272 degrees Fahrenheit.

Product Highlights

This flange adapter is designed for ease of installation and reliable performance in demanding environments.

Product Information

Standard Information

• Flange Type: Companion Flange
• Material: Plated-Steel

Technical Specifications

• Nominal Size: 2 inch
• Pressure Class: 150#
• Inner Diameter: 1.94 inch
• Outer Diameter: 3.7 inch
• Temperature Range: -66 to 272 Deg F Service
• Standards: Drilling to Match ANSI B 16.5 Specifications, Dimensions Of Solder Joint - Manufactured to ASME B 16.22-95
• Weight: 5.9 lb.
