Cs Basset Products FHA-400-1816 Safety Nail Plate Guard

Product Description

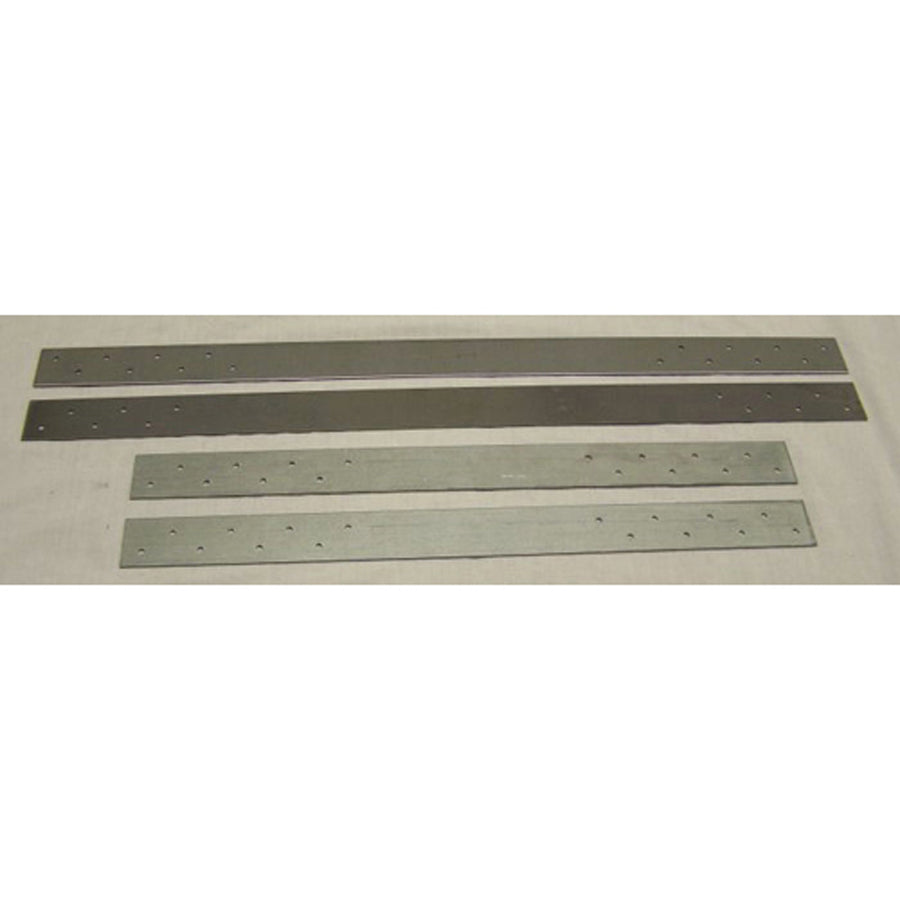

The CS BASSET PRODUCTS FHA-400-1816 is a galvanized steel safety nail plate guard designed to protect plumbing, HVAC, and electrical lines routed through wood framing members. At 1.5 inches wide and 18 inches long, fabricated from 16-gauge galvanized steel, this plate mounts flush against framing to create a barrier between fasteners and concealed pipe or conduit. The 8-hole pattern, positioned on each end of the plate, allows secure fastening directly to studs or joists. Plumbers, HVAC installers, and electricians install these plates where code requires protection against accidental nail or screw penetration.

This nail plate is suited for residential and light commercial framing applications where pipes, tubing, or low-voltage wiring pass through wood members at a depth that places them at risk from drywall screws or finish nails. It is commonly installed during rough-in before wall or ceiling coverings are applied. The FHA designation indicates compatibility with flat header or stud applications where a standard-width plate is appropriate.

Key Features

• 16-gauge galvanized steel construction resists corrosion in framed wall cavities
• 1.5 inches x 18 inches profile covers a full stud bay depth with room for secure fastening
• 8-hole pattern positioned on each end for positive attachment to framing members
• Flat profile sits flush against framing surface without creating gaps behind finish material
• Galvanized finish meets typical code requirements for nail plate guards in protected assemblies

Compatibility

Designed as an OEM-style replacement and standard fitment nail plate guard for residential and light commercial framing protection applications where a 1.5-inch by 18-inch flat header application plate is specified.

Installation Notes

Nail plate guards are typically installed by plumbers, HVAC rough-in technicians, or electricians during framing stage before sheathing or drywall is applied. Fasten the plate firmly to the framing member using nails or screws through the pre-drilled holes so the plate does not shift during finish work. Verify local building code requirements, including IRC and IPC provisions, for minimum plate thickness and placement distance from the pipe or conduit being protected. Do not install over already-concealed framing without confirming the protected line is within the zone of coverage.

Technical Specifications

• Material: Galvanized Steel
• Material Thickness: 16 Gauge
• Width: 1.5 inches
• Length: 18 inches
• Hole Count: 8 holes
• Hole Pattern: Positioned on each end of plate

Standard Information

• Brand: CS BASSET PRODUCTS
• Manufacturer Part Number: FHA-400-1816
