Cs Basset Products BH-8 Square Duct Hanger 8 Inch 18 Gauge

Product Description

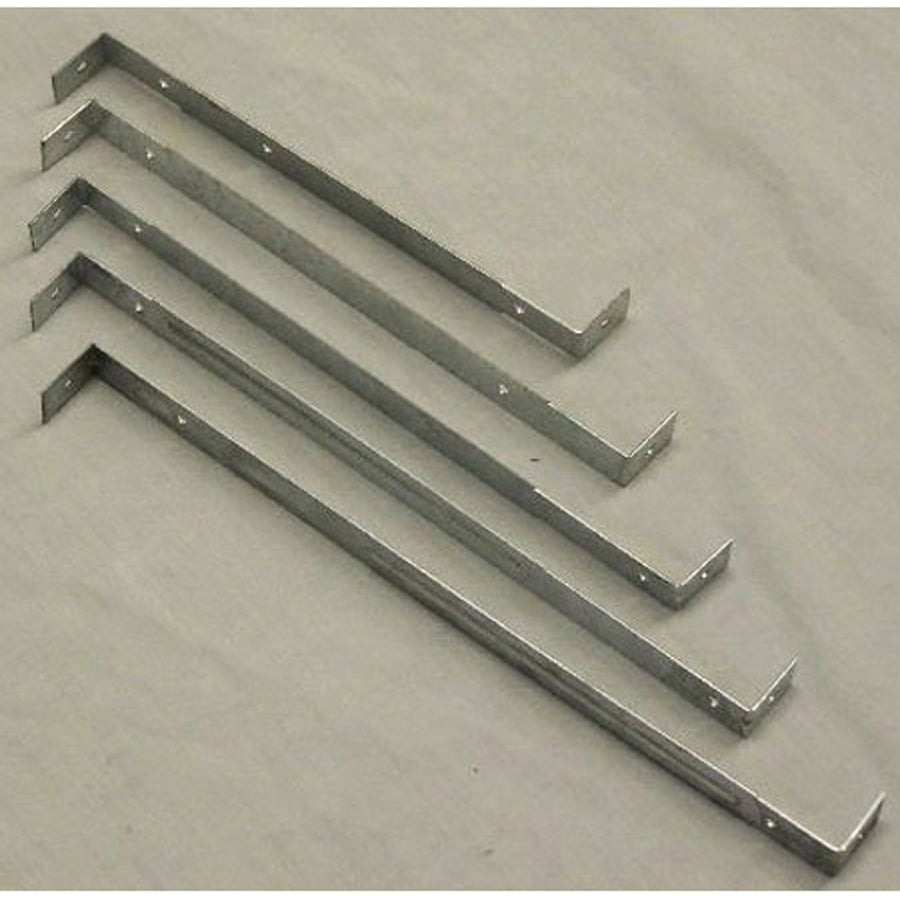

The CS BASSET PRODUCTS BH-8 is an 18-gauge galvanized steel square duct hanger designed to support rectangular and square HVAC ductwork in suspended or overhead installations. At 8 inches in length, it provides a sturdy, corrosion-resistant mounting solution for sheet metal duct systems in both new construction and retrofit work. The galvanized steel construction resists rust in humid mechanical spaces, making it a reliable long-term fastening component. HVAC installers and sheet metal mechanics typically use this hanger as part of a complete duct support system to keep supply and return air runs properly aligned and secured per code requirements.

This hanger is suited for residential and light commercial HVAC installations where square or rectangular duct runs require overhead support. It is commonly installed in attic spaces, crawlspaces, mechanical rooms, and open-ceiling commercial environments. The 8-inch length accommodates standard duct support spacing applications and works within typical trapeze or band-hanger configurations used across a wide range of duct sizes.

Key Features

• 18-gauge galvanized steel construction for corrosion resistance in humid environments
• 8-inch length suited for standard square duct support configurations
• Designed for square duct applications in suspended or overhead installations
• Galvanized finish reduces maintenance requirements in mechanical spaces
• Consistent gauge thickness supports reliable load-bearing performance

Compatibility

Designed as an OEM-style replacement and standard-fit component for square and rectangular HVAC duct support systems in residential and light commercial applications.

Installation Notes

Installation is typically performed by licensed HVAC technicians or sheet metal mechanics following SMACNA duct support guidelines and applicable local mechanical codes. Ensure the duct system is depressurized and not under active airflow during hanger installation. Use appropriate fasteners rated for the duct and structural substrate material. Do not over-tension or distort the hanger during installation, as deformation can compromise support integrity.

Technical Specifications

• Material: Galvanized Steel
• Material Thickness: 18 Gauge
• Length: 8 inches
• Type: Square Duct Hanger
• Weight: 10 pounds

Standard Information

• Brand: CS BASSET PRODUCTS
• Manufacturer Part Number: BH-8
