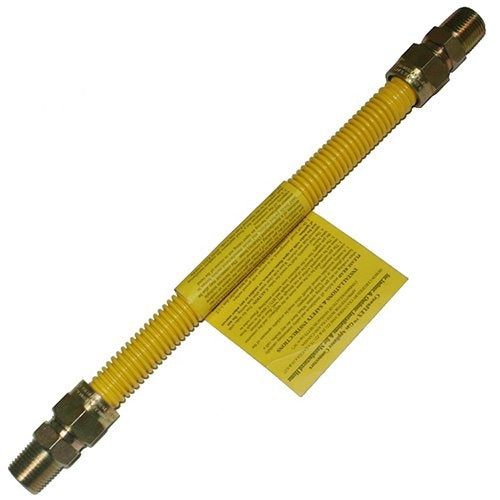

Crown Industries CG536B Gas Connector 5/8 Od 1/2 Mip X 1/2 Fip 3 Ft

Product Description

The CROWN INDUSTRIES CG536B is a flexible gas connector designed to link gas appliances to residential or light commercial gas supply lines. The connector features a 5/8-inch outer diameter flexible body with a 1/2-inch male iron pipe (MIP) inlet and a 1/2-inch female iron pipe (FIP) outlet, spanning a total length of 3 feet. This type of connector is used to make the final, short-run connection between the rigid gas supply piping and the appliance. It is typically installed by licensed plumbers or qualified gas-line technicians during appliance installation, replacement, or service.

The CG536B is suited for residential and light commercial gas appliance connections where a flexible, 3-foot run is needed to bridge the gap between a fixed gas supply stub-out and the appliance inlet. Common applications include gas ranges, dryers, water heaters, and space heaters. The 1/2-inch MIP x 1/2-inch FIP end configuration accommodates standard gas shutoff valve and appliance inlet pairings found in most residential installations.

Key Features

• 5/8-inch outer diameter flexible body for standard residential gas line connections
• 1/2-inch male iron pipe (MIP) inlet threads onto typical gas shutoff valves
• 1/2-inch female iron pipe (FIP) outlet connects to standard appliance gas inlets
• 3-foot length provides sufficient reach for most appliance rough-in configurations
• Flexible construction allows for minor alignment adjustments without rigid pipe modification

Compatibility

Designed as an OEM-style replacement or new-installation gas connector for residential gas appliances requiring a 5/8-inch OD flexible connector with 1/2-inch MIP x 1/2-inch FIP end fittings.

Installation Notes

Gas connector installation should be performed by a licensed plumber or qualified gas technician in accordance with local codes and IFGC requirements. Shut off the gas supply at the nearest upstream shutoff valve before disconnecting or connecting any gas fittings. Apply an approved gas-rated thread sealant or PTFE tape to all threaded connections and inspect for leaks with an approved leak-detection solution after restoring gas pressure. Never use a flexible gas connector that has been kinked, stretched beyond its rated length, or previously installed in a concealed location where inspection is not possible.

Technical Specifications

• Outer Diameter: 5/8 inches
• Inlet Connection: 1/2 inch MIP (Male Iron Pipe)
• Outlet Connection: 1/2 inch FIP (Female Iron Pipe)
• Length: 3 feet
• UPC Code: 30.3132.36

Standard Information

• Brand: CROWN INDUSTRIES
• Manufacturer Part Number: CG536B
