Crown Engineering CA508 Igniter (70mm, 90-degree) Replaces Eclipse 10019728

Product Description

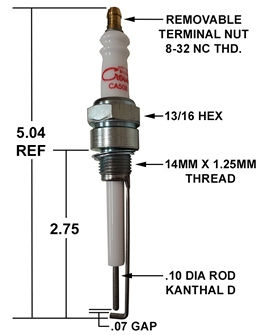

The Crown Engineering CA508 igniter is a replacement igniter that replaces Eclipse part 10019728. It features a 70 mm extended ceramic element and a 90-degree side wire design, with the critical dimension from the top of the threads to the tip matching the Eclipse original. Intended for furnace and HVAC ignition systems, the CA508 is supplied as an individual new unit.

• Direct replacement for Eclipse part 10019728; critical thread-to-tip dimension matches the Eclipse original
• 70 mm extended ceramic element with a 90-degree side wire design
• Supplied as an individual new unit

Product Highlights

70 mm extended ceramic igniter with 90-degree side wire; matches Eclipse 10019728 critical dimensions

Product Information

Standard Information

• Brand: CROWN ENGINEERING
• Manufacturer Part Number: CA508

Technical Specifications

• Brand: Crown Engineering
• Manufacturer Part Number: CA508
• Part Number: CA508
• Type: Igniter
• Replaces: Eclipse 10019728
• Element Type: Extended ceramic
• Element Length: 70 mm
• Wire Orientation: 90-degree side wire
• Critical Dimension: Top of threads to tip matches Eclipse original
• Condition: New
• Sold As: Each
• Supplier Part Number: CRCA508
