Crown Engineering 04060 Oil Burner Electrode Heavy Tip

Product Description

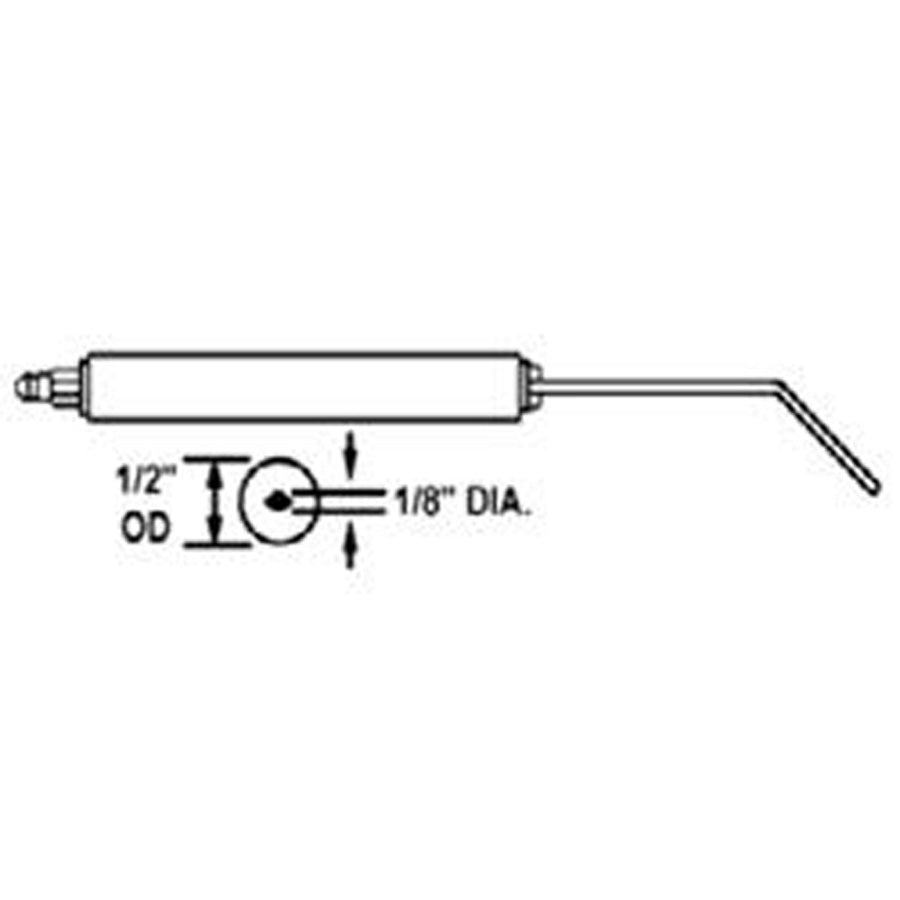

The CROWN ENGINEERING 04060 is an oil burner electrode designed for use in residential and light commercial oil-fired heating systems. The electrode generates the high-voltage spark that ignites the fuel-air mixture at the burner nozzle assembly. It features a 0.5 inch outer diameter, a 6 inch insulator length, and a heavy 0.125 inch diameter tip. HVAC technicians and oil burner service professionals install this electrode as a replacement component during routine burner service or troubleshooting of ignition failures.

This electrode is suited for oil-fired forced-air furnaces, boilers, and water heaters that use a conventional retention-head or gun-style oil burner. It is typically replaced during annual tune-ups or when the ignition system fails to light reliably. The heavy tip design provides durability under the heat and electrical stress of repeated spark cycles in standard residential and light commercial oil burner applications.

Key Features

• 0.5 inch outer diameter body fits standard electrode mounting configurations
• 6 inch insulator length provides appropriate spacing and electrical isolation
• Heavy 0.125 inch diameter tip for increased durability and spark reliability
• OEM-style replacement form factor for straightforward swap-out service

Compatibility

Designed as an OEM-style replacement electrode for residential and light commercial oil burner assemblies requiring a 0.5 inch OD, 6 inch insulator electrode with a heavy tip.

Installation Notes

Oil burner electrodes are serviced by qualified HVAC technicians or oil burner specialists. Shut off power to the burner and close the oil supply valve before beginning work. Electrode gap and positioning must be set according to the burner manufacturer specifications using an electrode setting gauge. Follow applicable local codes and NFPA 31 guidelines for oil-fired equipment service.

Technical Specifications

• Electrode Outer Diameter: 0.5 inches
• Insulator Length: 6 inches
• Tip Type: Heavy
• Tip Diameter: 0.125 inches
• Application: Oil Burner

Standard Information

• Brand: CROWN ENGINEERING
• Manufacturer Part Number: 04060
