Crown Boiler CR-31156K Oil Heating Tune-up Kit

Product Description

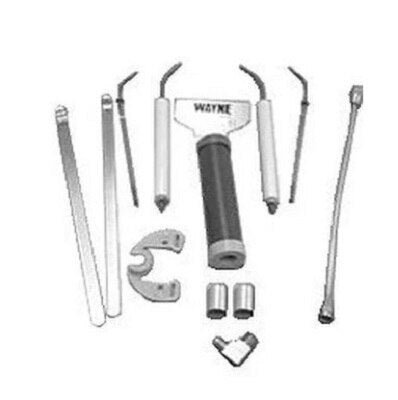

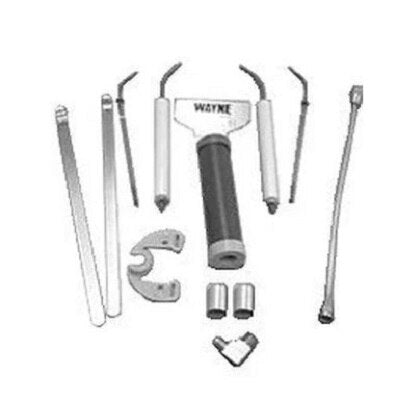

The CROWN BOILER CR-31156K is a factory-matched oil heating tune-up kit designed for use with Wayne Deluxe series oil burners. The kit supplies all the core components needed for a complete annual service in a single package, including a nozzle line electrode assembly, fuel pump strainer, transformer gasket, and burner mounting gaskets. These matched parts restore proper ignition, clean oil flow, and tight sealing at the combustion head. HVAC technicians and oil burner service professionals install this kit as part of scheduled maintenance to return burners to original factory combustion standards.

This kit is intended for residential oil heating systems equipped with Wayne Deluxe series burners. The electrode assembly comes pre-set to the correct ignition gap, reducing setup time during annual tune-ups. The fuel pump strainer helps maintain clean oil delivery, and the mounting and transformer gaskets prevent air infiltration and electrical seal failure at the burner head. The complete component set allows a technician to perform a full tune-up in a single visit without sourcing individual parts separately.

Key Features

• Nozzle line electrode assembly pre-set to the correct ignition gap for consistent spark performance
• Fuel pump strainer included to protect downstream components from debris and maintain steady oil flow
• Transformer gasket provides a tight electrical seal at the transformer mounting surface
• Burner mounting gaskets prevent air leaks at the combustion head
• Factory-matched components eliminate part-by-part sourcing for annual oil burner tune-ups
• Supports stable flame retention and consistent fuel delivery throughout the heating season

Compatibility

Designed for use with Wayne Deluxe series oil burners, including MSR, M-SR, and M-SRS models.

Installation Notes

Installation should be performed by a licensed oil burner technician or qualified HVAC service professional. Shut down the burner and disconnect power at the service switch before beginning any component replacement. Follow applicable local codes and NFPA 31 guidelines for oil-fired equipment service. Inspect the combustion chamber and heat exchanger for condition before completing the tune-up and returning the system to service.

Technical Specifications

• Kit Contents: Nozzle line electrode assembly, fuel pump strainer, transformer gasket, burner mounting gaskets
• Application: Wayne Deluxe series oil burners

Standard Information

• Brand: CROWN BOILER
• Manufacturer Part Number: CR-31156K
