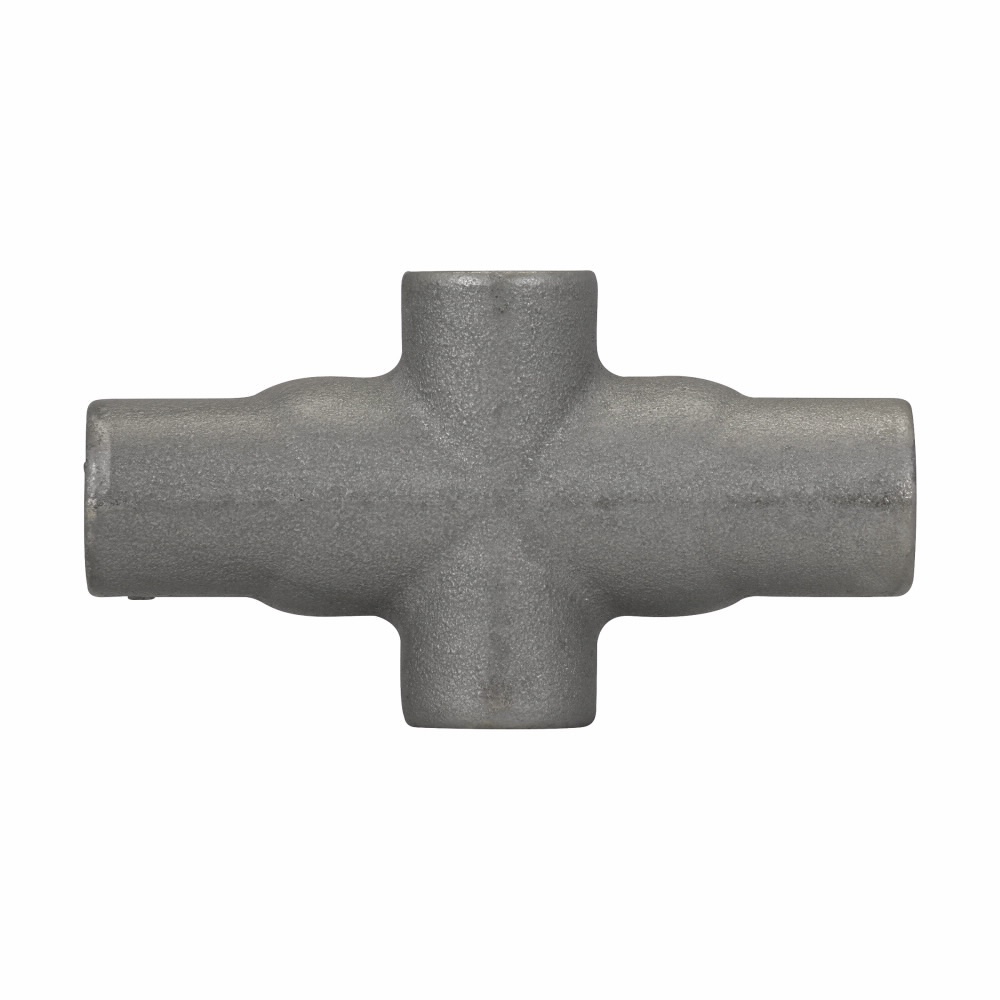

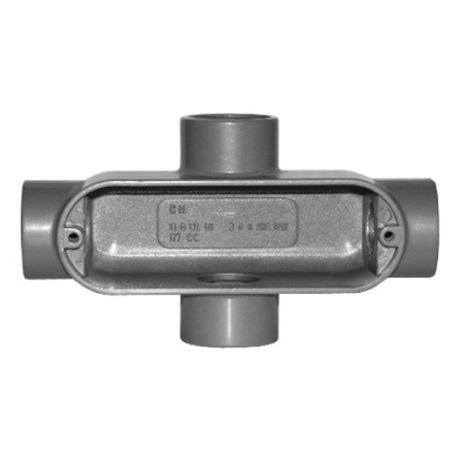

Crouse-Hinds X57 Condulet 1-1/2 in Type X Conduit Outlet Body

Product Description

The Crouse-Hinds X57 is a conduit outlet body designed for rigid conduit applications. This product is made from Feraloy iron alloy and features an X shape with a hub size of one and one-half inches.

• Form 7 Condulet outlet body structure
• Designed for pull outlets in conductor installations
• Threaded and set screw connection type

Product Highlights

This outlet body simplifies wiring setups by providing a compact solution for conduit installations.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer: EATON

Technical Specifications

• MPN: X57
• Material: Feraloy iron alloy
• Finish: Electro-Galvanized/Aluminum Acrylic Painted
• Type: Type X
• Dimensions: eight and three-sixteenths inches L x four and five-eighths inches W x two and nine-sixteenths inches H
• Weight: four point three pounds
• Hub Size: one and one-half inches
• Standard & Approvals: ARRA, Buy American Act, RoHS Compliant, UL 514B, CSA C22.2 No. 18, Federal Spec W-C-586D, NEC/CEC Certified
• Applications: Used for rigid conduit as pull outlets for conductors and for making splices and taps.
