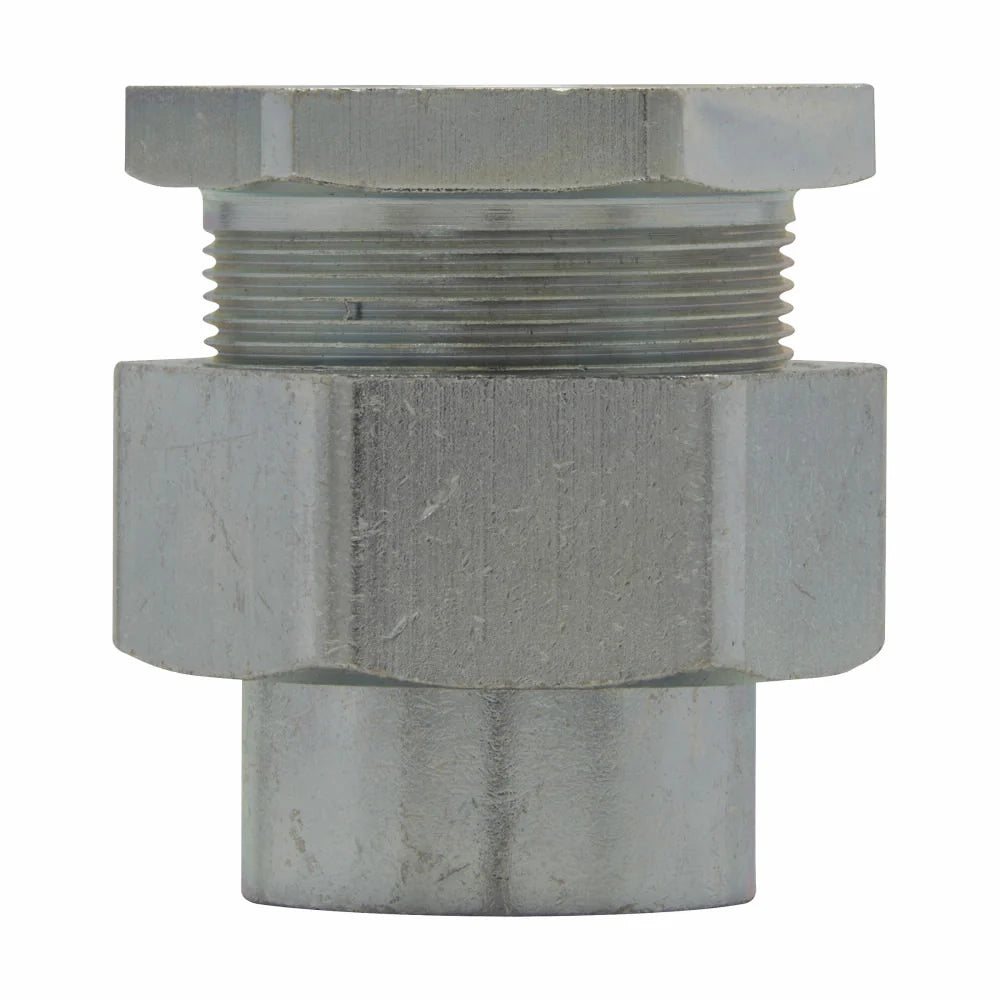

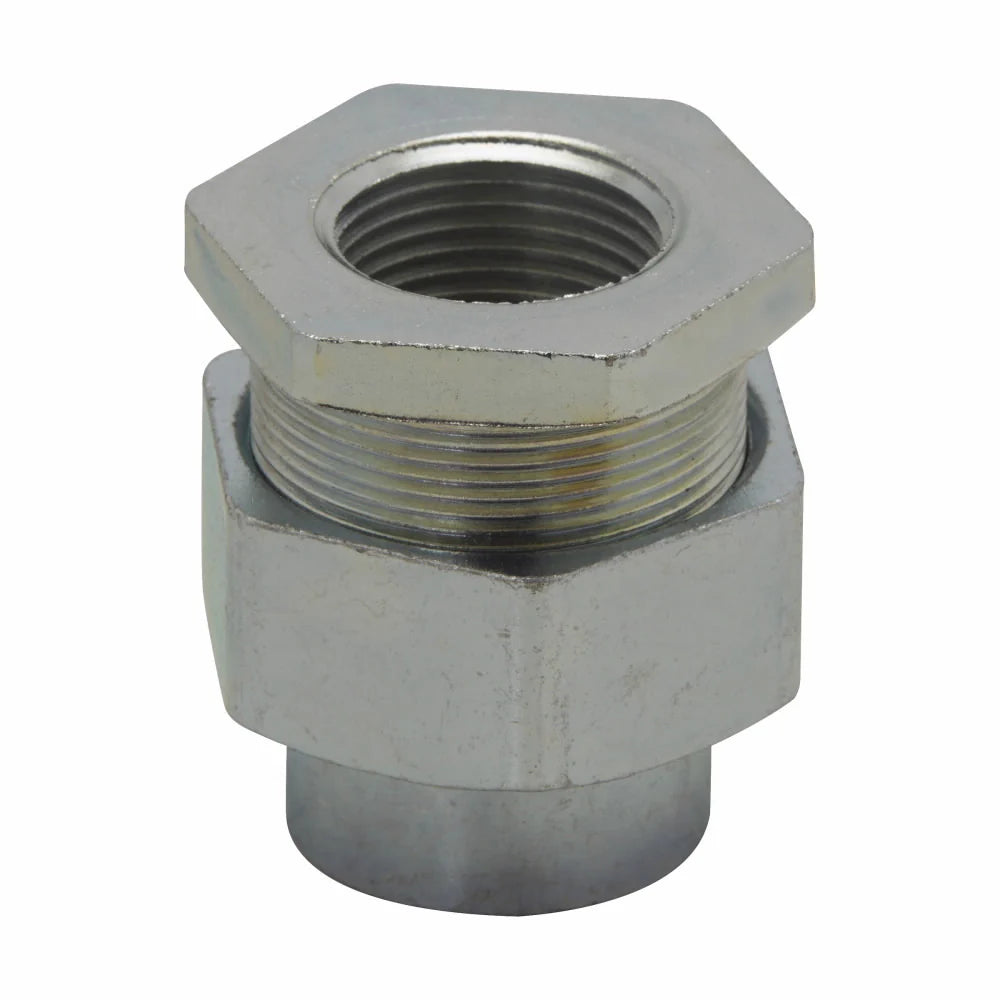

Crouse-Hinds UNF105 UNF-Style Female Union 1/2 in

Product Description

Crouse-Hinds offers the UNF105 model, a union fitting made of steel and designed for rigid or IMC conduit systems. This fitting connects conduits or devices while maintaining a strong and durable assembly.

• Threaded connection type for easy installation.
• Designed for hazardous locations, suitable for Class I and II environments.
• Compatible with 1/2 inch standard conduit size.

Product Highlights

Explosion-proof design to enhance safety and reliability in harsh environments.

Product Information

Standard Information

• Manufacturer: Crouse-Hinds
• Country of Origin: United States

Technical Specifications

• Catalog Number: UNF105
• Material: Steel
• Dimensions: 1-1/2 inches diameter x 1-13/16 inches length
• Connection Type: Threaded
• Application: Rigid Conduit installations
• Standard: UL 886, CSA C22.2
• Enclosure Rating: Class I Div 1 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III
• Weight: 0.42 pounds
