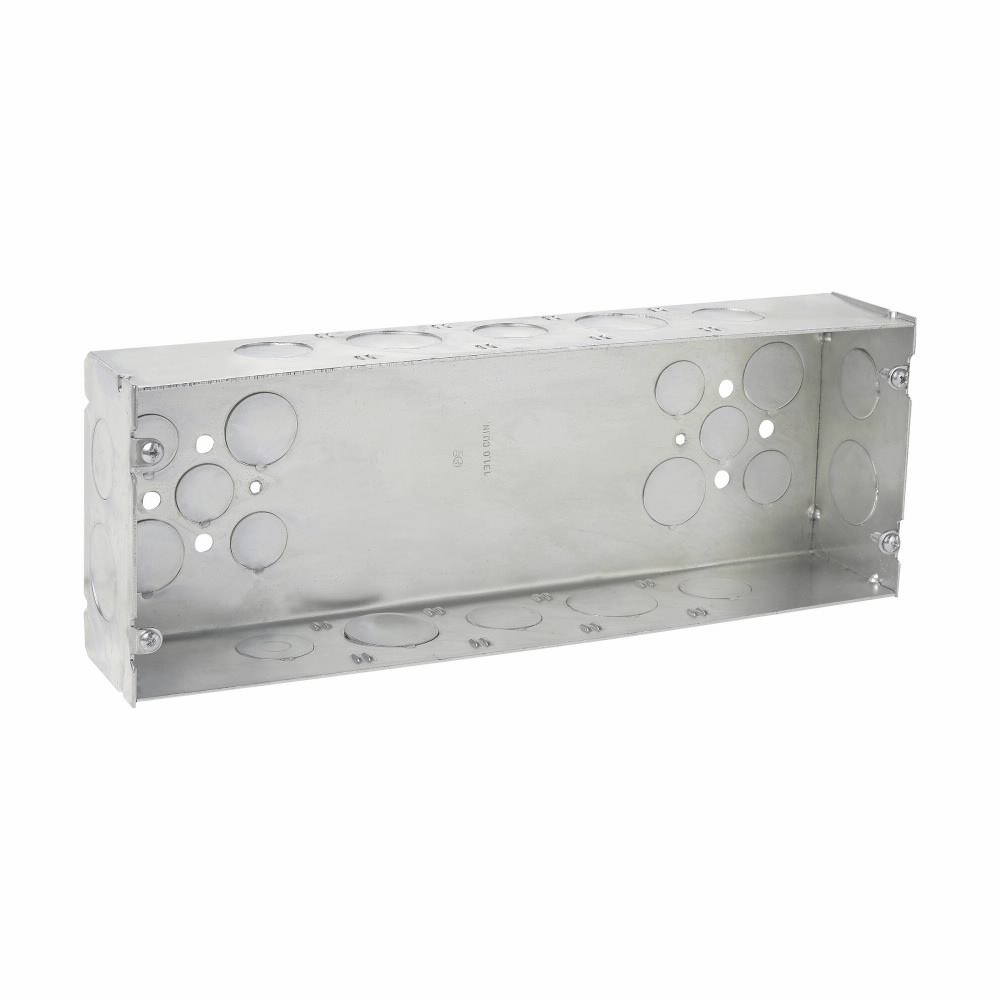

Crouse-Hinds TP873 12-1/4 x 2-1/2 x 4-1/2 inch Steel 5-Gang Switch Box

Product Description

The Crouse-Hinds series TP873 by Eaton is a steel 5-gang switch box designed for efficient electrical installations. This switch box measures twelve and one-quarter inches in width, two and one-half inches in depth, and four and one-half inches in height. It features a cubic capacity of one hundred thirty-two cubic inches, accommodating multiple wiring devices in a central location.

• Capacity: 132 cubic inches
• Material: Steel with welded construction
• Knockout options include (6) 1/2-inch and (4) 3/4-inch, among others

Product Highlights

Ideal for commercial and institutional applications, the TP873 simplifies the installation process by allowing for a centralized connection point for multiple wiring devices.

Product Information

Standard Information

• Catalog Number: TP873
• Manufacturer: Eaton Crouse-Hinds

Technical Specifications

• Dimensions: 12-1/4 inches width x 2-1/2 inches depth x 4-1/2 inches height
• Material: Steel
• Construction: Welded
• Cubic Capacity: 132 cubic inches
• Knockouts: (6) 1/2-inch, (4) 3/4-inch, (1) 3/4-inch, (1) 1-inch
• Standard: UL Listed
• UPC: 786189108736
• GTIN: 00786189108736
