Crouse Hinds TP7149 weatherproof round outlet box 4 in

Product Description

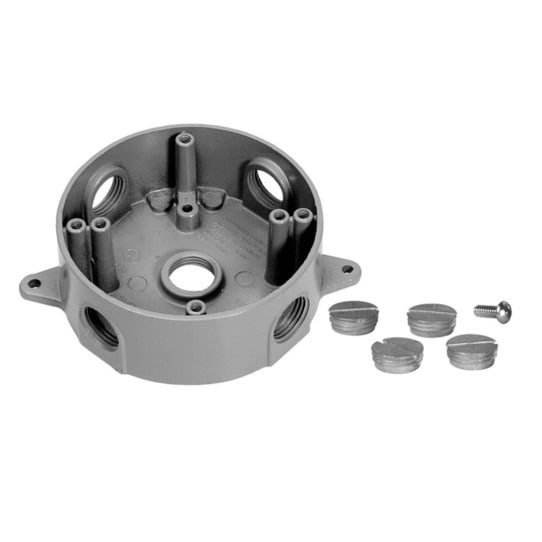

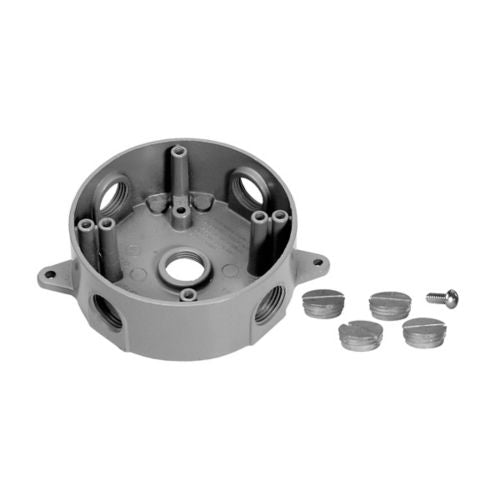

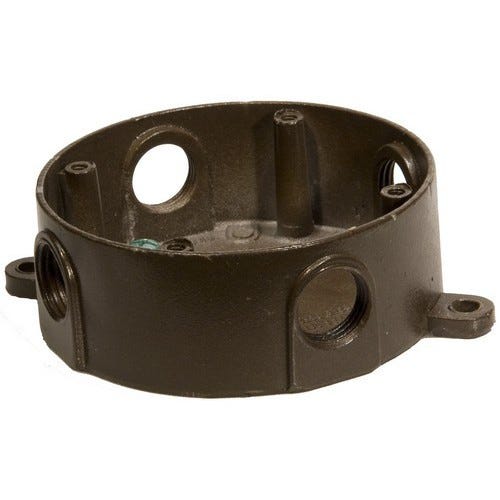

The Eaton Crouse-Hinds TP7149 series weatherproof round outlet box features (1) 1/2" back hole and (4) 1/2" side holes. Constructed from die-cast aluminum with a 15.5 cu in capacity, this 4" round outlet box is suitable for ordinary/non-hazardous locations.

• Weatherproof
• Durability and corrosion resistance
• Ground screw provided with box

Product Highlights

The Crouse-Hinds TP7149 outlet box is ideal for branch circuit wiring in wet, damp, or dry locations.

Product Information

Standard Information

• Brand: Crouse Hinds
• Manufacturer Part Number: TP7149
• Country of Origin: United States

Technical Specifications

• Product Name: Eaton Crouse-Hinds series weatherproof round outlet box
• Catalog Number: TP7149
• UPC: 786189071498
• Product Length/Depth: 5.06 in
• Product Height: 5.06 in
• Product Width: 1.63 in
• Product Weight: 0.79 lb
• Product Type: Weatherproof round outlet box
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Depth: 1-1/2"
• Size: 1/2 In holes
• Capacity: 15.5 cubic in
• Material: Die cast aluminum
• Back holes: (1) 1/2 in
• Side holes: (4) 1/2 in
• Applications: Weatherproof Outlet Box
• Cable Entry: (1) Back, (4) Side
• Mounting Type: Feet
• Standard: CSA C22.2,UL 514A,UL
• Type: Round
• Brand: Crouse-Hinds
• Sub Brand: Commercial Products
• Height: 5.06 Inch
• Length: 5.06 Inch
• Width: 1.63 in
• Resistance Properties: Weatherproof
• Country of Origin: United States
• Cubic Capacity: 15.5 cubic in
• Mounting: Feet
• Special Features: Includes (4) Closure Plug, Ground Screw, Dimension 1-1/2 In Depth X 4 In Diameter, Weight 79.2 Lb per 100
• Item Type: Weatherproof round outlet box
• Dimensions: 5.0600 IN X 1.6300 IN X 5.0600 IN
• Box Capacity: 15.5 cu. in.
• Box Depth: 1-1/2 in.
• Box Shape: Round
• No. of Inlets: 5
• Color: Bronze
• Construction: Corrosive Resistant
