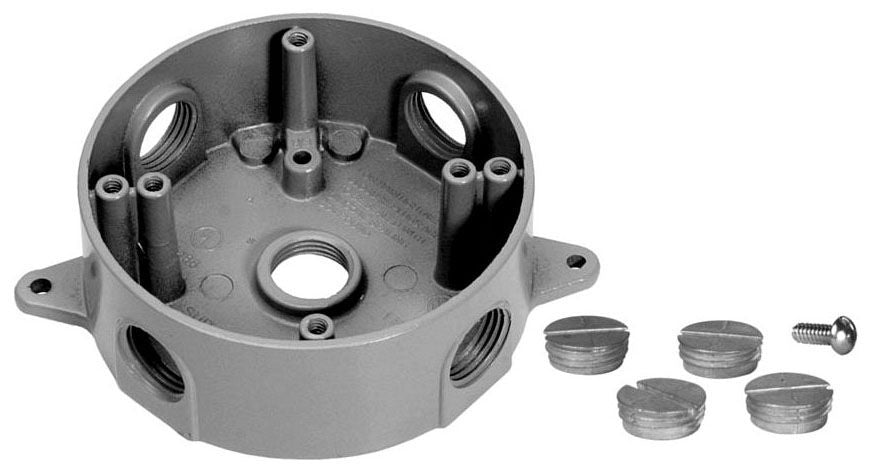

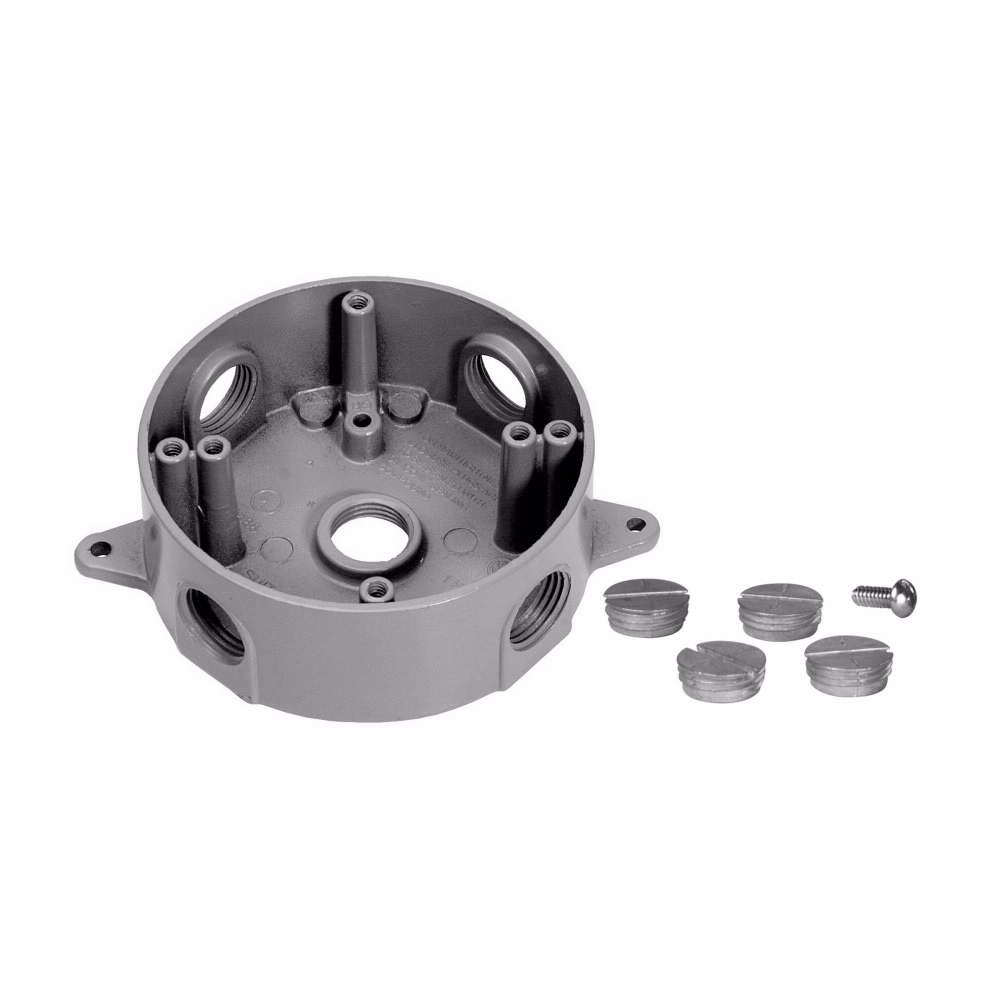

Crouse-Hinds TP7146 Weatherproof Outlet Box 15.5 cu in (1) 1/2 Back Hole

Product Description

The Crouse-Hinds TP7146 is a weatherproof outlet box made by Eaton. This product is designed for use in various branch circuit wiring applications, suitable for either wet or dry locations. The box is constructed from die-cast aluminum, offering durability and resistance to corrosive environments.

• Capacity: 15.5 cubic inches
• Includes (1) 1/2 inch back knockout and (4) 1/2 inch side knockouts
• Dimensions: 1.63 inches wide, 1.5 inches deep, 5.06 inches high

Product Highlights

The outlet box provides essential protection for electrical connections while allowing easy installation and access. It’s designed to accommodate standard electrical fittings and ensures safe operation under a range of environmental conditions.

Product Information

Standard Information

• Brand: Crouse-Hinds
• Manufacturer: Eaton

Technical Specifications

• Construction: Die-cast aluminum
• Color: Gray
• Depth: 1-1/2 inches
• Height: 5.06 inches
• Length: 5.06 inches
• Mounting Type: Foot/Lug
• Cable Entry: (1) Back, (4) Side
• UPC: 786189071467
