Crouse Hinds TP7011 weatherproof outlet box 1/2 inches replacement TP7011

Product Description

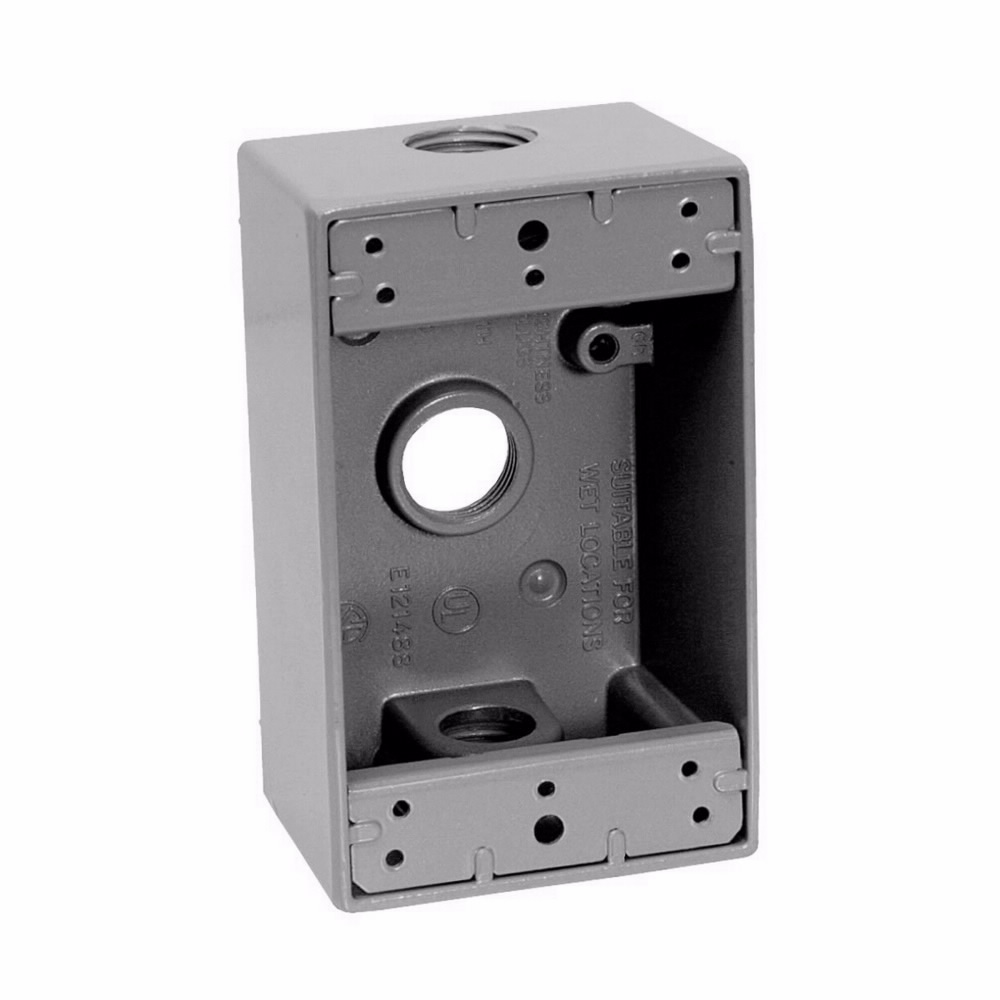

The Eaton Crouse-Hinds TP7011 series weatherproof outlet box has a capacity of 18.0 cu in. Constructed from die-cast aluminum, this single-gang box features (3) 1/2" outlet holes and rectangular shape with lugs. It is designed for ordinary/non-hazardous locations and meets NEC/CEC standards.

• UL Listed for wet locations
• Die cast aluminum construction
• Meets U.L. Standard #514A

Product Highlights

The Crouse-Hinds TP7011 is a durable, corrosion-resistant weatherproof outlet box suitable for various outdoor electrical applications.

Product Information

Standard Information

• Brand: Crouse Hinds
• Manufacturer Part Number: TP7011
• Country of Origin: India

Technical Specifications

• Product Name: Eaton Crouse-Hinds series weatherproof outlet box
• Catalog Number: TP7011
• UPC: 786189070118
• Product Length/Depth: 4.56 in
• Product Height: 2 in
• Product Width: 2.88 in
• Product Type: Weatherproof outlet box
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• Number of gangs: Single-gang
• Depth: 2"
• Type: Rectangular, with lugs
• Outlet holes: (3) 1/2 in
• Capacity: 18 cubic in
• Color: White
• Material: Die cast aluminum
• Size: 1/2 In.
• No. of Inlets: 3
• Color Family: White
• Applications: Weatherproof Outlet Box
• Cable Entry: (1) Back, (1) Each End
• Number of Gangs: 1 Gang
• Brand: Crouse-Hinds
• Sub Brand: Commercial Products
• GTiN: 00786189070118
• Product UPC: 78618907011
• Weight: .58 lb
• Length: 2.88 Inch
• Manufacturer Part Number: TP7011
• Manufacturer: Eaton's Crouse-Hinds series
• Product Series: CP
• Family Series: Eaton's Crouse-Hinds series Electrical Boxes, CP Series
• Description: Eaton Crouse-Hinds series weatherproof outlet box, 18.0 cu in, White, 2 deep, Die cast aluminum, Single-gang, 3 1/2 outlet holes, Rectangular, with lugs
• Box Type: Rectangular
• Composition: Cast Aluminum
• Lugs Included: Yes
• Plugs Included: Yes
• Cover Included: No
• Cover Type: N/A
• Approvals: UL
• Net Weight: 0.58 lbs
• Gross Weight: 0.58 lbs
