Crouse Hinds TP694 Steel Screw-On Mount 5-Gang Masonry Box 9-3/16-Inch x 3-3/4-Inch x 3-1/2-Inch

Product Description

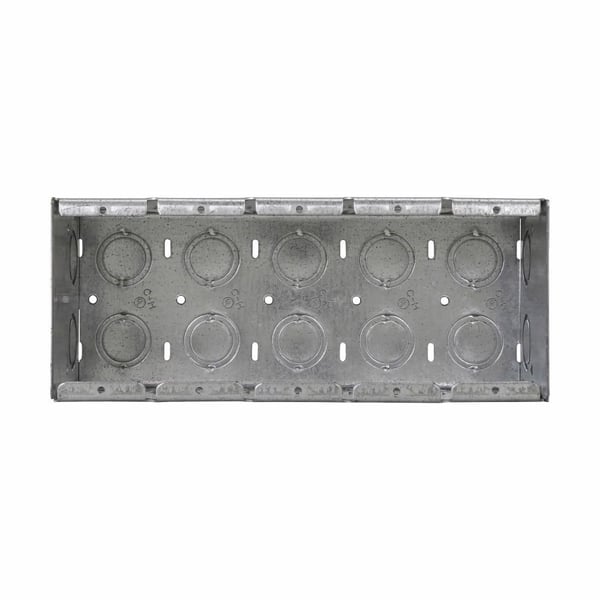

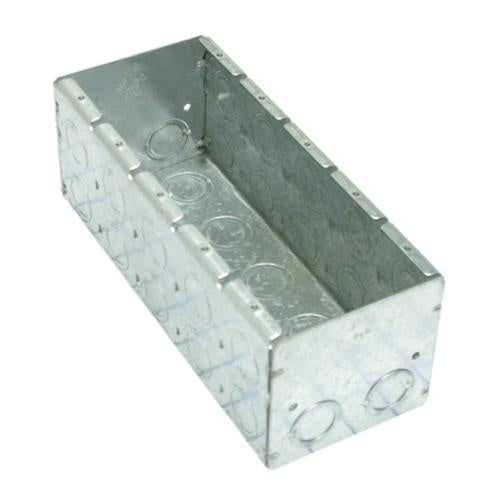

The CROUSE HINDS TP694 5-Gang Rectangle masonry box features steel construction with a capacity of 110 cubic inches. Measuring 9-3/16 inches x 3-3/4 inches x 3-1/2 inches, it has concentric ten 1/2-Inch and 3/4-Inch knockouts on each end, two 1/2-Inch and 3/4-Inch knockouts on each side as well as ten 1/2-Inch and 3/4-Inch knockouts in bottom. This masonry box supports screw on mounting and is UL listed.

• Maximum capacity of 110-Cubic-Inch
• Features steel construction
• Rectangle masonry box includes 22 knockouts

Product Highlights

The TP694 masonry box is designed to accommodate the mounting of switches or other devices in masonry walls.

Product Information

Standard Information

• Brand: CROUSE HINDS
• Manufacturer Part Number: TP694
• Country of Origin: United States of America

Technical Specifications

• Brand Name: Crouse-Hinds
• Manufacturer Part Number: TP694
• UNSPSC: 39121333
• Manufacturer Name: Cooper Crouse-Hinds
• UPC: 78618910694
• Country Of Origin: United States of America
• Number of Gangs: 5
• Mounting: Screw-On
• Material: Steel
• Knockouts: (10) 1/2 Inch and 3/4 Inch Each End, (2) 1/2 Inch and 3/4 Inch Each Side, (10) 1/2 Inch and 3/4 Inch Bottom Concentric
• Item Name: Masonry Box
• Shape: Rectangular
• Depth: 3.5"
• Cubic Capacity: 110 cu-in
• Number of Knockouts: 40
• Standards: UL Listed
• Product Type: Masonry box
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• End Knockouts: (10) 1/2 in, (10) 3/4 in
• Side knockouts: (2) 1/2 in, (2) 3/4 in
• Bottom Knockouts: (10) 1/2 in, (10) 3/4 in
• Capacity: 110 cubic in
• Cable Entry Size: Knockout
• Application: Ordinary/Non-Hazardous Locations, Commercial, Institutional Buildings and Structures Applications
• Type: Welded
