Crouse Hinds TP675 Steel Screw-On Mount 1-Gang Gangable Masonry Box 1-15/16-Inch x 3-3/4-Inch x 3-1/2-Inch

Product Description

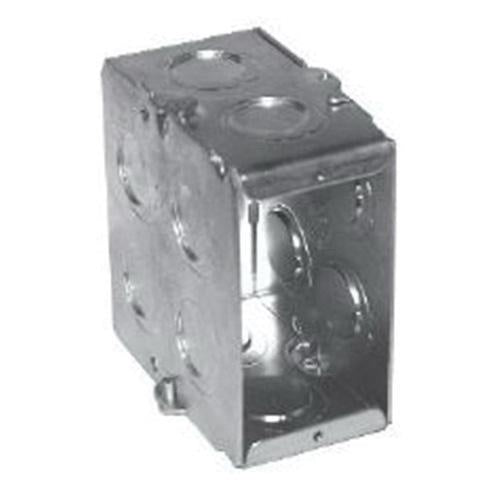

The Crouse-Hinds TP675 is a 1-Gang rectangle gangable masonry box made of steel with a capacity of 22-Cubic-Inch. It measures 1-15/16-Inch x 3-3/4-Inch x 3-1/2-Inch. It features concentric two 1/2-Inch and 3/4-Inch knockouts on each end, four 1/2-Inch and 3/4-Inch knockouts on each side as well as two 1/2-Inch and 3/4-Inch knockouts in bottom. This masonry box supports screw on mounting and is UL listed.

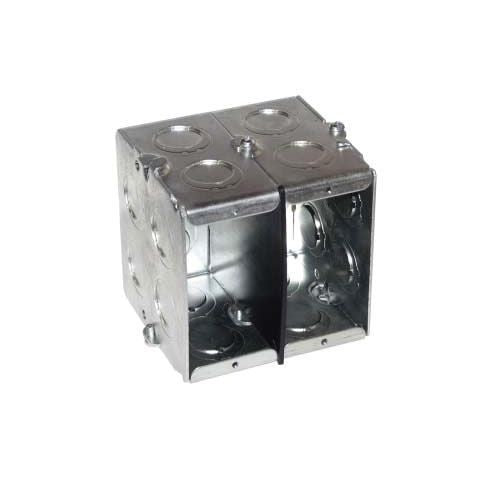

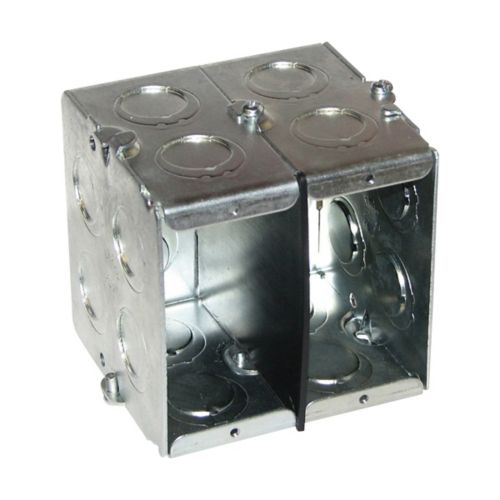

• Gangable feature offers the option of creating a multiple gang box from a 1-Gang box
• Measures 1-15/16-Inch x 3-3/4-Inch 3-1/2-Inch
• Rectangle masonry box includes 8 knockouts

Product Highlights

The Crouse-Hinds TP675 masonry box is ideal for mounting switches or other devices in masonry walls. Its gangable design allows for easy expansion.

Product Information

Standard Information

• Brand: Crouse Hinds
• Manufacturer Part Number: TP675
• Country of Origin: India

Technical Specifications

• Brand Name: Crouse-Hinds
• Manufacturer Part Number: TP675
• Manufacturer Name: Cooper Crouse-Hinds
• Number of Gangs: 1.0000
• Mounting: Screw-On
• Material: Steel
• Knockouts: (2) 1/2 Inch and 3/4 Inch Each End, (4) 1/2 Inch and 3/4 Inch Each Side, (2) 1/2 Inch and 3/4 Inch Bottom Concentric
• Item Name: Masonry Box
• Shape: Rectangular
• Depth: 3.5
• Cubic Capacity: 22
• Number of Knockouts: 8.0000
• Size: 1-15/16 Inch Width x 3-3/4 Inch Height
• Standards: UL Listed
• Type: Gangable
• Product Length/Depth: 3.75 in
• Product Height: 3.75 in
• Product Width: 1.94 in
• Product Weight: 0.82 lb
• Product Type: Masonry box
• Area classification: Ordinary/Non-Hazardous Locations
• Standards type: NEC/CEC
• End Knockouts: (2) 1/2 in, (2) 3/4 in
• Side knockouts: (4) 1/2 in, (4) 3/4 in
• Bottom Knockouts: (2) 1/2 in, (2) 3/4 in
• Capacity: 22 cubic in
• Applications: Gangable Masonry Box
• Standard: UL
• Sub Brand: Commercial Products
• Construction: Welded
• Style: Compact
• Finish Type: Powder Coated
• Installation Type: Screw-In
• Specification Met: Ul
• Box dimensions: 1-15/16 W x 3-3/4 H x 3-1/2 D inches
• Dimensions: 1-15/16 in W x 3-1/2 in D x 3-3/4 in H
